#include "baseChannelRequester.h"

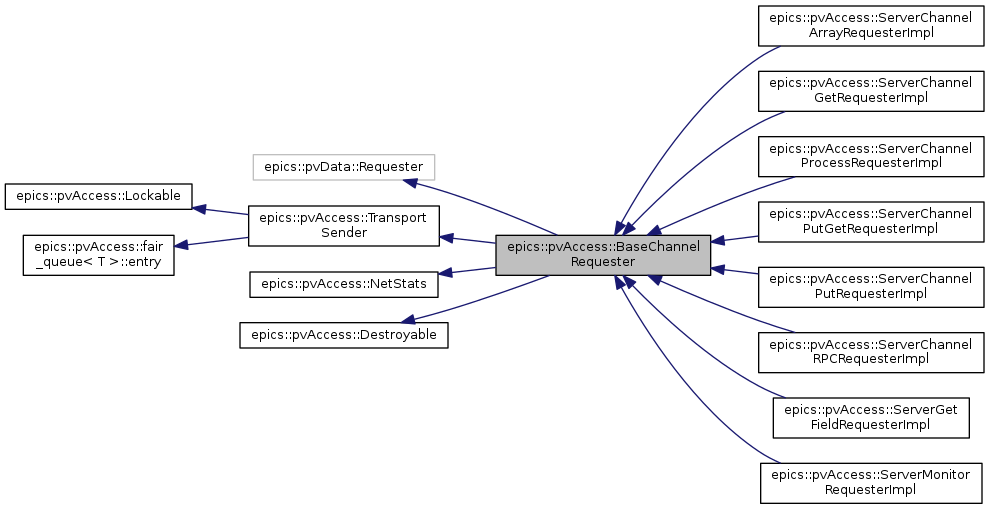

Inheritance diagram for epics::pvAccess::BaseChannelRequester:

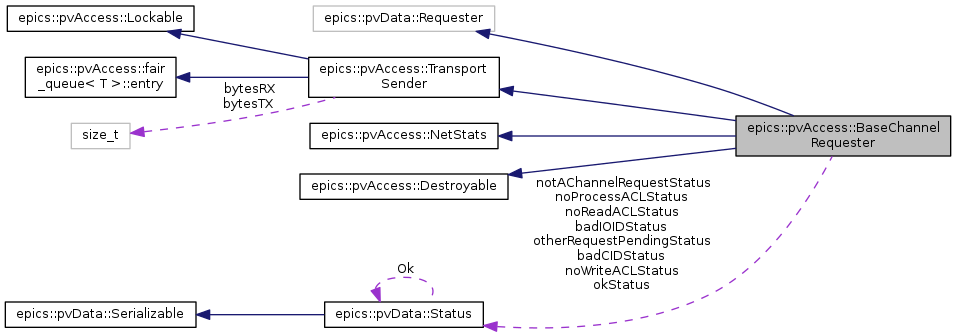

Collaboration diagram for epics::pvAccess::BaseChannelRequester:

Public Member Functions
	POINTER_DEFINITIONS (BaseChannelRequester)

	BaseChannelRequester (ServerContextImpl::shared_pointer const &context, std::tr1::shared_ptr< ServerChannel > const &channel, const pvAccessID ioid, Transport::shared_pointer const &transport)

virtual	~BaseChannelRequester ()

bool	startRequest (epics::pvData::int32 qos)

void	stopRequest ()

epics::pvData::int32	getPendingRequest ()

virtual std::tr1::shared_ptr< ChannelRequest >	getOperation ()=0
	The Operation associated with this Requester, except for GetField and Monitor (which are special snowflakes...) More...

virtual std::string	getRequesterName () OVERRIDE FINAL

virtual void	message (std::string const &message, epics::pvData::MessageType messageType) OVERRIDE FINAL

virtual void	stats (Stats &s) const OVERRIDE FINAL
	Query current counter values. More...

Public Member Functions inherited from epics::pvAccess::TransportSender
	POINTER_DEFINITIONS (TransportSender)

	TransportSender ()

virtual	~TransportSender ()

virtual void	send (epics::pvData::ByteBuffer buffer, TransportSendControl control)=0

Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)

virtual	~Lockable ()

virtual void	lock ()

virtual void	unlock ()

Public Member Functions inherited from epics::pvAccess::fair_queue< T >::entry
	entry ()

	~entry ()

Public Member Functions inherited from epics::pvAccess::NetStats
virtual	~NetStats ()

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

virtual void	destroy ()=0

Static Public Member Functions
static void	message (Transport::shared_pointer const &transport, const pvAccessID ioid, const std::string message, const epics::pvData::MessageType messageType)

static void	sendFailureMessage (const epics::pvData::int8 command, Transport::shared_pointer const &transport, const pvAccessID ioid, const epics::pvData::int8 qos, const epics::pvData::Status status)

Static Public Attributes
static const epics::pvData::Status	okStatus = Status()

static const epics::pvData::Status	badCIDStatus

static const epics::pvData::Status	badIOIDStatus

static const epics::pvData::Status	noReadACLStatus

static const epics::pvData::Status	noWriteACLStatus

static const epics::pvData::Status	noProcessACLStatus

static const epics::pvData::Status	otherRequestPendingStatus

static const epics::pvData::Status	notAChannelRequestStatus

Protected Attributes
const pvAccessID	_ioid

const Transport::shared_pointer	_transport

const std::tr1::shared_ptr< ServerChannel >	_channel

epics::pvData::Mutex	_mutex

Additional Inherited Members
Public Attributes inherited from epics::pvAccess::TransportSender
size_t	bytesTX

size_t	bytesRX

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 21 of file baseChannelRequester.h.

Constructor & Destructor Documentation

epics::pvAccess::BaseChannelRequester::BaseChannelRequester	(	ServerContextImpl::shared_pointer const &	context,
		std::tr1::shared_ptr< ServerChannel > const &	channel,
		const pvAccessID	ioid,
		Transport::shared_pointer const &	transport
	)

Definition at line 29 of file baseChannelRequester.cpp.

                                                :
     _ioid(ioid),
     _transport(transport),
     _channel(channel),
     _context(context),
     _pendingRequest(BaseChannelRequester::NULL_REQUEST)
 {

 }

virtual epics::pvAccess::BaseChannelRequester::~BaseChannelRequester ( )

inlinevirtual

Definition at line 31 of file baseChannelRequester.h.

31 {};

Member Function Documentation

virtual std::tr1::shared_ptr<ChannelRequest> epics::pvAccess::BaseChannelRequester::getOperation ( )

pure virtual

The Operation associated with this Requester, except for GetField and Monitor (which are special snowflakes...)

Implemented in epics::pvAccess::ServerChannelRPCRequesterImpl, epics::pvAccess::ServerGetFieldRequesterImpl, epics::pvAccess::ServerChannelProcessRequesterImpl, epics::pvAccess::ServerChannelArrayRequesterImpl, epics::pvAccess::ServerMonitorRequesterImpl, epics::pvAccess::ServerChannelPutGetRequesterImpl, epics::pvAccess::ServerChannelPutRequesterImpl, and epics::pvAccess::ServerChannelGetRequesterImpl.

int32 epics::pvAccess::BaseChannelRequester::getPendingRequest ( )

Definition at line 60 of file baseChannelRequester.cpp.

 {
     Lock guard(_mutex);
     return _pendingRequest;
 }

string epics::pvAccess::BaseChannelRequester::getRequesterName ( )

virtual

Definition at line 66 of file baseChannelRequester.cpp.

 {
     std::stringstream name;
     name << typeid(*_transport).name() << "/" << _ioid;
     return name.str();
 }

void epics::pvAccess::BaseChannelRequester::message	(	std::string const &	message,
		epics::pvData::MessageType	messageType
	)

virtual

Definition at line 73 of file baseChannelRequester.cpp.

 {
     BaseChannelRequester::message(_transport, _ioid, message, messageType);
 }

static void epics::pvAccess::BaseChannelRequester::message	(	Transport::shared_pointer const &	transport,
		const pvAccessID	ioid,
		const std::string	message,
		const epics::pvData::MessageType	messageType
	)

static

epics::pvAccess::BaseChannelRequester::POINTER_DEFINITIONS ( BaseChannelRequester )

void epics::pvAccess::BaseChannelRequester::sendFailureMessage	(	const epics::pvData::int8	command,
		Transport::shared_pointer const &	transport,
		const pvAccessID	ioid,
		const epics::pvData::int8	qos,
		const epics::pvData::Status	status
	)

static

Definition at line 84 of file baseChannelRequester.cpp.

 {
     TransportSender::shared_pointer sender(new BaseChannelRequesterFailureMessageTransportSender(command, transport, ioid, qos, status));
     transport->enqueueSendRequest(sender);
 }

bool epics::pvAccess::BaseChannelRequester::startRequest ( epics::pvData::int32 qos )

Definition at line 43 of file baseChannelRequester.cpp.

 {
     Lock guard(_mutex);
     if (_pendingRequest != NULL_REQUEST)
     {
         return false;
     }
     _pendingRequest = qos;
     return true;
 }

void epics::pvAccess::BaseChannelRequester::stats ( Stats & s ) const

virtual

Query current counter values.

Implements epics::pvAccess::NetStats.

Definition at line 90 of file baseChannelRequester.cpp.

 {
     s.populated = true;
     s.operationBytes.tx = atomic::get(bytesTX);
     s.operationBytes.rx = atomic::get(bytesRX);
     s.transportBytes.tx = atomic::get(_transport->_totalBytesSent);
     s.transportBytes.rx = atomic::get(_transport->_totalBytesRecv);
     s.transportPeer = _transport->getRemoteName();
 }

void epics::pvAccess::BaseChannelRequester::stopRequest ( )

Definition at line 54 of file baseChannelRequester.cpp.

 {
     Lock guard(_mutex);
     _pendingRequest = NULL_REQUEST;
 }

Member Data Documentation

const std::tr1::shared_ptr<ServerChannel> epics::pvAccess::BaseChannelRequester::_channel

protected

Definition at line 56 of file baseChannelRequester.h.

const pvAccessID epics::pvAccess::BaseChannelRequester::_ioid

protected

Definition at line 54 of file baseChannelRequester.h.

epics::pvData::Mutex epics::pvAccess::BaseChannelRequester::_mutex

protected

Definition at line 57 of file baseChannelRequester.h.

const Transport::shared_pointer epics::pvAccess::BaseChannelRequester::_transport

protected

Definition at line 55 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::badCIDStatus

static

Definition at line 46 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::badIOIDStatus

static

Definition at line 47 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::noProcessACLStatus

static

Definition at line 50 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::noReadACLStatus

static

Definition at line 48 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::notAChannelRequestStatus

static

Definition at line 52 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::noWriteACLStatus

static

Definition at line 49 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::okStatus = Status()

static

Definition at line 45 of file baseChannelRequester.h.

const Status epics::pvAccess::BaseChannelRequester::otherRequestPendingStatus

static

Definition at line 51 of file baseChannelRequester.h.

The documentation for this class was generated from the following files:

modules/pvAccess/src/server/pv/baseChannelRequester.h
modules/pvAccess/src/server/baseChannelRequester.cpp
