#include "responseHandlers.h"

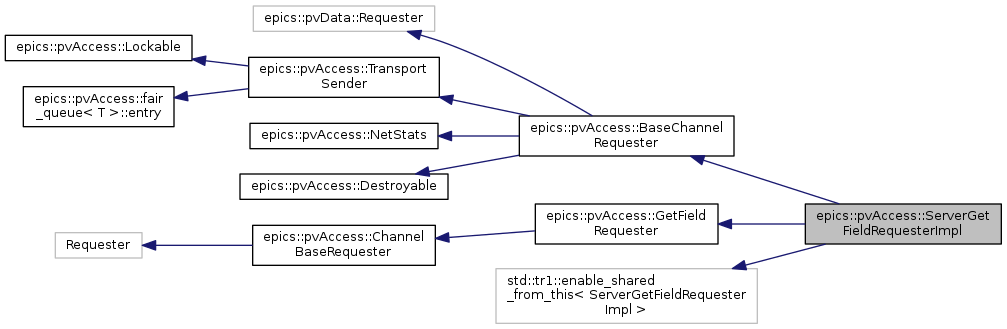

Inheritance diagram for epics::pvAccess::ServerGetFieldRequesterImpl:

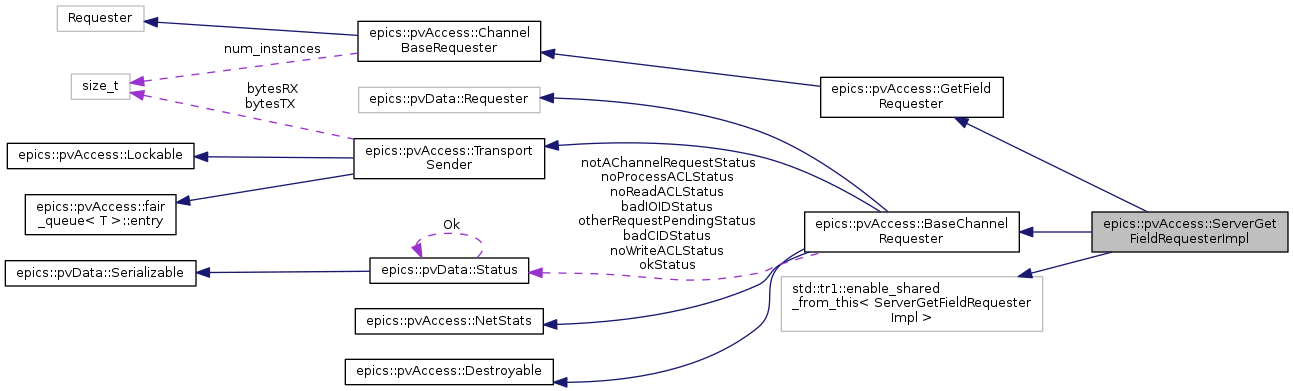

Collaboration diagram for epics::pvAccess::ServerGetFieldRequesterImpl:

Public Types
typedef std::tr1::shared_ptr< ServerGetFieldRequesterImpl >	shared_pointer

typedef std::tr1::shared_ptr< const ServerGetFieldRequesterImpl >	const_shared_pointer

Public Member Functions
	ServerGetFieldRequesterImpl (ServerContextImpl::shared_pointer const &context, std::tr1::shared_ptr< ServerChannel > const &channel, const pvAccessID ioid, Transport::shared_pointer const &transport)

virtual std::tr1::shared_ptr< ChannelRequest >	getOperation () OVERRIDE FINAL
	The Operation associated with this Requester, except for GetField and Monitor (which are special snowflakes...) More...

virtual	~ServerGetFieldRequesterImpl ()

virtual void	getDone (const epics::pvData::Status &status, epics::pvData::FieldConstPtr const &field) OVERRIDE FINAL

virtual void	destroy () OVERRIDE FINAL

virtual void	send (epics::pvData::ByteBuffer buffer, TransportSendControl control) OVERRIDE FINAL

Public Member Functions inherited from epics::pvAccess::BaseChannelRequester
	POINTER_DEFINITIONS (BaseChannelRequester)

	BaseChannelRequester (ServerContextImpl::shared_pointer const &context, std::tr1::shared_ptr< ServerChannel > const &channel, const pvAccessID ioid, Transport::shared_pointer const &transport)

virtual	~BaseChannelRequester ()

bool	startRequest (epics::pvData::int32 qos)

void	stopRequest ()

epics::pvData::int32	getPendingRequest ()

virtual std::string	getRequesterName () OVERRIDE FINAL

virtual void	message (std::string const &message, epics::pvData::MessageType messageType) OVERRIDE FINAL

virtual void	stats (Stats &s) const OVERRIDE FINAL
	Query current counter values. More...

Public Member Functions inherited from epics::pvAccess::TransportSender
	POINTER_DEFINITIONS (TransportSender)

	TransportSender ()

virtual	~TransportSender ()

Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)

virtual	~Lockable ()

virtual void	lock ()

virtual void	unlock ()

Public Member Functions inherited from epics::pvAccess::fair_queue< T >::entry
	entry ()

	~entry ()

Public Member Functions inherited from epics::pvAccess::NetStats
virtual	~NetStats ()

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Member Functions inherited from epics::pvAccess::GetFieldRequester
	POINTER_DEFINITIONS (GetFieldRequester)

virtual	~GetFieldRequester ()

Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)

	ChannelBaseRequester ()

virtual	~ChannelBaseRequester ()

virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Static Public Member Functions inherited from epics::pvAccess::BaseChannelRequester
static void	message (Transport::shared_pointer const &transport, const pvAccessID ioid, const std::string message, const epics::pvData::MessageType messageType)

static void	sendFailureMessage (const epics::pvData::int8 command, Transport::shared_pointer const &transport, const pvAccessID ioid, const epics::pvData::int8 qos, const epics::pvData::Status status)

Public Attributes inherited from epics::pvAccess::TransportSender
size_t	bytesTX

size_t	bytesRX

Static Public Attributes inherited from epics::pvAccess::BaseChannelRequester
static const epics::pvData::Status	okStatus = Status()

static const epics::pvData::Status	badCIDStatus

static const epics::pvData::Status	badIOIDStatus

static const epics::pvData::Status	noReadACLStatus

static const epics::pvData::Status	noWriteACLStatus

static const epics::pvData::Status	noProcessACLStatus

static const epics::pvData::Status	otherRequestPendingStatus

static const epics::pvData::Status	notAChannelRequestStatus

Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Protected Attributes inherited from epics::pvAccess::BaseChannelRequester
const pvAccessID	_ioid

const Transport::shared_pointer	_transport

const std::tr1::shared_ptr< ServerChannel >	_channel

epics::pvData::Mutex	_mutex

Detailed Description

Definition at line 695 of file responseHandlers.h.

Member Typedef Documentation

typedef std::tr1::shared_ptr<const ServerGetFieldRequesterImpl> epics::pvAccess::ServerGetFieldRequesterImpl::const_shared_pointer

Definition at line 702 of file responseHandlers.h.

typedef std::tr1::shared_ptr<ServerGetFieldRequesterImpl> epics::pvAccess::ServerGetFieldRequesterImpl::shared_pointer

Definition at line 701 of file responseHandlers.h.

Constructor & Destructor Documentation

epics::pvAccess::ServerGetFieldRequesterImpl::ServerGetFieldRequesterImpl	(	ServerContextImpl::shared_pointer const &	context,
		std::tr1::shared_ptr< ServerChannel > const &	channel,
		const pvAccessID	ioid,
		Transport::shared_pointer const &	transport
	)

Definition at line 2679 of file responseHandlers.cpp.

                                                                       :
     BaseChannelRequester(context, channel, ioid, transport), done(false)
 {
 }

virtual epics::pvAccess::ServerGetFieldRequesterImpl::~ServerGetFieldRequesterImpl ( )

inlinevirtual

Definition at line 710 of file responseHandlers.h.

710 {}

Member Function Documentation

void epics::pvAccess::ServerGetFieldRequesterImpl::destroy ( )

virtual

Destroy this instance.

Implements epics::pvAccess::Destroyable.

Definition at line 2703 of file responseHandlers.cpp.

2704 {

2705 }

void epics::pvAccess::ServerGetFieldRequesterImpl::getDone	(	const epics::pvData::Status &	status,
		epics::pvData::FieldConstPtr const &	field
	)

virtual

Check status.isOk() to determine success. On success the 'field' will be non-NULL. On failure 'field' will be NULL.

Parameters

status	Completion status.
field	The Structure for the request.

Implements epics::pvAccess::GetFieldRequester.

Definition at line 2686 of file responseHandlers.cpp.

 {
     bool twice;
     {
         Lock guard(_mutex);
         _status = status;
         _field = field;
         twice = done;
         done = true;
     }
     if(!twice) {
         TransportSender::shared_pointer thisSender = shared_from_this();
         _transport->enqueueSendRequest(thisSender);
     }
     _channel->completeGetField(this);
 }

virtual std::tr1::shared_ptr<ChannelRequest> epics::pvAccess::ServerGetFieldRequesterImpl::getOperation ( )

inlinevirtual

The Operation associated with this Requester, except for GetField and Monitor (which are special snowflakes...)

Implements epics::pvAccess::BaseChannelRequester.

Definition at line 708 of file responseHandlers.h.

708 { return std::tr1::shared_ptr<ChannelRequest>(); }

void epics::pvAccess::ServerGetFieldRequesterImpl::send	(	epics::pvData::ByteBuffer *	buffer,
		TransportSendControl *	control
	)

virtual

Called by transport. By this call transport gives callee ownership over the buffer. Calls on TransportSendControl instance must be made from calling thread. Moreover, ownership is valid only for the time of call of this method. NOTE: these limitations allow efficient implementation.

Implements epics::pvAccess::TransportSender.

Definition at line 2707 of file responseHandlers.cpp.

 {
     control->startMessage((int8)CMD_GET_FIELD, sizeof(int32)/sizeof(int8));
     buffer->putInt(_ioid);
     {
         Lock guard(_mutex);
         _status.serialize(buffer, control);
         if (_status.isSuccess())
             control->cachedSerialize(_field, buffer);
     }
 }

The documentation for this class was generated from the following files:

modules/pvAccess/src/server/pv/responseHandlers.h
modules/pvAccess/src/server/responseHandlers.cpp
