epics::pvAccess::Monitor Class Reference

#include "monitor.h"

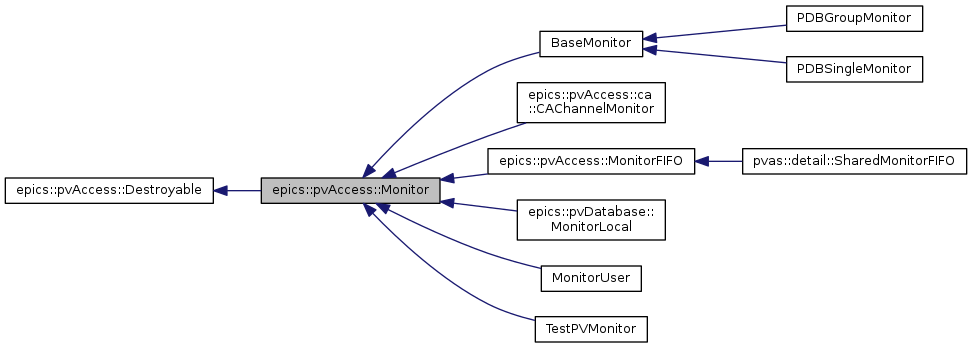

Inheritance diagram for epics::pvAccess::Monitor:

Collaboration diagram for epics::pvAccess::Monitor:

Classes
struct	Impl
struct	Stats

Public Types
typedef MonitorRequester	requester_type

Public Member Functions
	POINTER_DEFINITIONS (Monitor)
virtual	~Monitor ()
virtual epics::pvData::Status	start ()=0
virtual epics::pvData::Status	stop ()=0
virtual MonitorElementPtr	poll ()=0
virtual void	release (MonitorElementPtr const &monitorElement)=0
virtual void	getStats (Stats &s) const
virtual void	reportRemoteQueueStatus (epics::pvData::int32 freeElements)
Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)
virtual void	destroy ()=0

Additional Inherited Members
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Access to Monitor subscription and queue

Downstream interface to access a monitor queue (via poll() and release() )

Definition at line 69 of file monitor.h.

Member Typedef Documentation

typedef MonitorRequester epics::pvAccess::Monitor::requester_type

Definition at line 72 of file monitor.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::Monitor::~Monitor ( )

inlinevirtual

Definition at line 74 of file monitor.h.

{}

Member Function Documentation

virtual void epics::pvAccess::Monitor::getStats ( Stats &  s ) const

inlinevirtual

Reimplemented in BaseMonitor, and epics::pvAccess::MonitorFIFO.

Definition at line 106 of file monitor.h.

                                          {
        s.nfilled = s.noutstanding = s.nempty = 0;
    }

epics::pvAccess::Monitor::POINTER_DEFINITIONS

(

Monitor

)

virtual MonitorElementPtr epics::pvAccess::Monitor::poll ( )

pure virtual

If monitor has occurred return data.

Returns

monitorElement for modified data. Must call get to determine if data is available.

May recursively call MonitorRequester::unlisten()

Implemented in epics::pvAccess::MonitorFIFO, epics::pvAccess::ca::CAChannelMonitor, TestPVMonitor, epics::pvDatabase::MonitorLocal, and MonitorUser.

virtual void epics::pvAccess::Monitor::release ( MonitorElementPtr const &  monitorElement )

pure virtual

Release a MonitorElement that was returned by poll. A poll() must be called after the release() to check the presence of any modified data.

Parameters

monitorElement

Implemented in epics::pvAccess::MonitorFIFO, epics::pvAccess::ca::CAChannelMonitor, and epics::pvDatabase::MonitorLocal.

virtual void epics::pvAccess::Monitor::reportRemoteQueueStatus ( epics::pvData::int32  freeElements )

inlinevirtual

Report remote queue status.

Parameters

freeElements

number of free elements.

Reimplemented in epics::pvAccess::MonitorFIFO.

Definition at line 114 of file monitor.h.

{}

virtual epics::pvData::Status epics::pvAccess::Monitor::start ( )

pure virtual

Start monitoring.

Returns

completion status.

Implemented in epics::pvAccess::MonitorFIFO, epics::pvAccess::ca::CAChannelMonitor, TestPVMonitor, epics::pvDatabase::MonitorLocal, and MonitorUser.

virtual epics::pvData::Status epics::pvAccess::Monitor::stop ( )

pure virtual

Stop Monitoring.

Returns

completion status.

Implemented in epics::pvAccess::MonitorFIFO, epics::pvAccess::ca::CAChannelMonitor, TestPVMonitor, epics::pvDatabase::MonitorLocal, and MonitorUser.

---

The documentation for this class was generated from the following file:

• modules/pvAccess/src/client/pv/monitor.h
