epics::pvAccess::MonitorRequester Class Reference

Callback implemented by monitor clients. More...

#include "pvAccess.h"

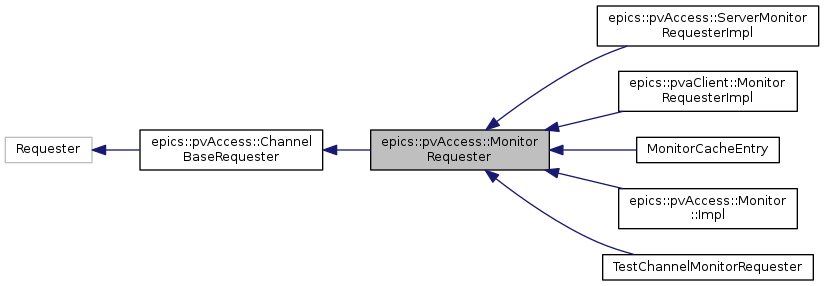

Inheritance diagram for epics::pvAccess::MonitorRequester:

Collaboration diagram for epics::pvAccess::MonitorRequester:

Public Types
typedef Monitor	operation_type

Public Member Functions
	POINTER_DEFINITIONS (MonitorRequester)
virtual	~MonitorRequester ()
virtual void	monitorConnect (epics::pvData::Status const &status, MonitorPtr const &monitor, epics::pvData::StructureConstPtr const &structure)=0
virtual void	monitorEvent (MonitorPtr const &monitor)=0
virtual void	unlisten (MonitorPtr const &monitor)=0
Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)
	ChannelBaseRequester ()
virtual	~ChannelBaseRequester ()
virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Detailed Description

Callback implemented by monitor clients.

Requester for ChannelMonitor.

Author

mrk

Definition at line 249 of file pvAccess.h.

Member Typedef Documentation

typedef Monitor epics::pvAccess::MonitorRequester::operation_type

Definition at line 252 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::MonitorRequester::~MonitorRequester ( )

inlinevirtual

Definition at line 254 of file pvAccess.h.

{}

Member Function Documentation

virtual void epics::pvAccess::MonitorRequester::monitorConnect ( epics::pvData::Status const &  status, MonitorPtr const &  monitor, epics::pvData::StructureConstPtr const &  structure  )

pure virtual

Underlying Channel is connected and operation setup is complete. Call start() to begin subscription updates.

Parameters

status	Completion status.
monitor	The monitor
structure	The structure defining the data.

Implemented in epics::pvAccess::Monitor::Impl.

virtual void epics::pvAccess::MonitorRequester::monitorEvent ( MonitorPtr const &  monitor )

pure virtual

Monitor queue is not empty.

The requester must call Monitor.poll to get data.

Parameters

monitor

The monitor.

Implemented in epics::pvAccess::Monitor::Impl.

epics::pvAccess::MonitorRequester::POINTER_DEFINITIONS

(

MonitorRequester

)

virtual void epics::pvAccess::MonitorRequester::unlisten ( MonitorPtr const &  monitor )

pure virtual

No more subscription update will be sent.

Parameters

monitor

The monitor.

Implemented in epics::pvAccess::Monitor::Impl.

---

The documentation for this class was generated from the following file:

• modules/pvAccess/src/client/pv/pvAccess.h
