caget.c File Reference

#include <stdio.h>
#include <string.h>
#include <epicsStdlib.h>
#include <epicsString.h>
#include <alarm.h>
#include <cadef.h>
#include <epicsGetopt.h>
#include "epicsVersion.h"
#include "tool_lib.h"

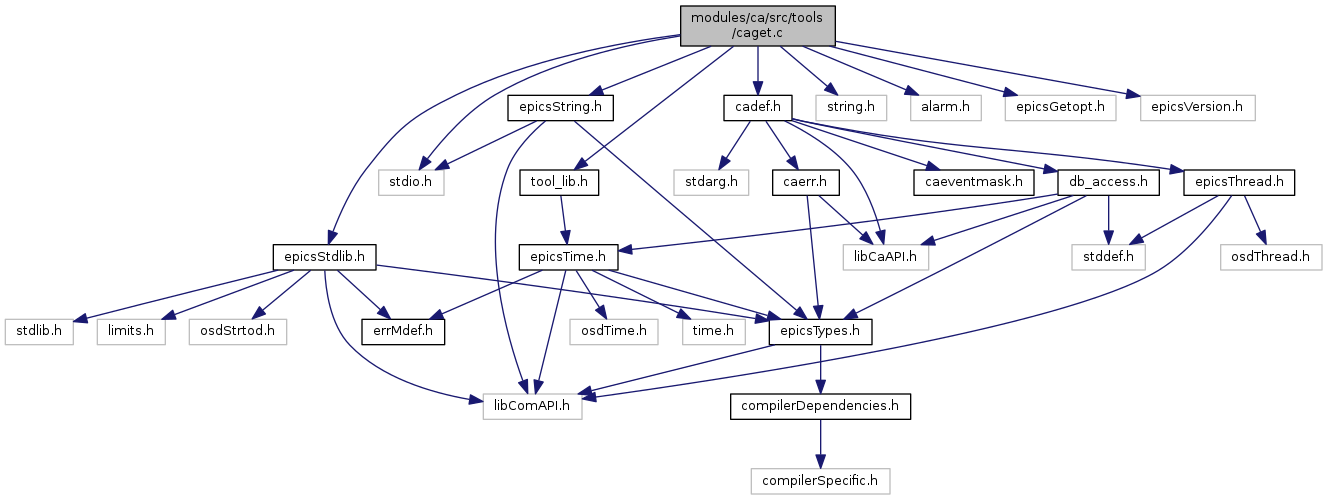

Include dependency graph for caget.c:

Go to the source code of this file.

Macros
#define	VALID_DOUBLE_DIGITS   18 /* Max usable precision for a double */
#define	PEND_EVENT_SLICES   5 /* No. of pend_event slices for callback requests */

Enumerations
enum	OutputT {   plain, terse, all, specifiedDbr,   plain, terse, all }
enum	RequestT { get, callback, get, callback }

Functions
int	main (int argc, char *argv[])

Macro Definition Documentation

#define PEND_EVENT_SLICES   5 /* No. of pend_event slices for callback requests */

Definition at line 42 of file caget.c.

#define VALID_DOUBLE_DIGITS   18 /* Max usable precision for a double */

Definition at line 41 of file caget.c.

Enumeration Type Documentation

enum OutputT

Enumerator
plain
terse
all
specifiedDbr
plain
terse
all

Definition at line 45 of file caget.c.

{ plain, terse, all, specifiedDbr } OutputT;

enum RequestT

Enumerator
get
callback
get
callback

Definition at line 48 of file caget.c.

{ get, callback } RequestT;

Function Documentation

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 376 of file caget.c.

{
    int n;
    int result;                 /* CA result */
    OutputT format = plain;     /* User specified format */
    RequestT request = get;     /* User specified request type */
    IntFormatT outType;         /* Output type */

    int count = 0;              /* 0 = not specified by -# option */
    int opt;                    /* getopt() current option */
    int type = -1;              /* getopt() data type argument */
    int digits = 0;             /* getopt() no. of float digits */

    int nPvs;                   /* Number of PVs */
    pv* pvs;                    /* Array of PV structures */

    LINE_BUFFER(stdout);        /* Configure stdout buffering */

    while ((opt = getopt(argc, argv, ":taicnhsSVe:f:g:l:#:d:0:w:p:F:")) != -1) {
        switch (opt) {
        case 'h':               /* Print usage */
            usage();
            return 0;
        case 'V':
            printf( "\nEPICS Version %s, CA Protocol version %s\n", EPICS_VERSION_STRING, ca_version() );
            return 0;
        case 't':               /* Terse output mode */
            complainIfNotPlainAndSet(&format, terse);
            break;
        case 'a':               /* Wide output mode */
            complainIfNotPlainAndSet(&format, all);
            break;
        case 'c':               /* Callback mode */
            request = callback;
            break;
        case 'd':               /* Data type specification */
            complainIfNotPlainAndSet(&format, specifiedDbr);
                                /* Argument (type) may be text or number */
            if (sscanf(optarg, "%d", &type) != 1)
            {
                dbr_text_to_type(optarg, type);
                if (type == -1)                   /* Invalid? Try prefix DBR_ */
                {
                    char str[30] = "DBR_";
                    strncat(str, optarg, 25);
                    dbr_text_to_type(str, type);
                }
            }
            if (type < DBR_STRING       || type > DBR_CLASS_NAME
                || type == DBR_PUT_ACKT || type == DBR_PUT_ACKS)
            {
                fprintf(stderr, "Requested dbr type out of range "
                        "or invalid - ignored. ('caget -h' for help.)\n");
                format = plain;
            }
            break;
        case 'n':               /* Print ENUM as index numbers */
            enumAsNr = 1;
            break;
        case 'w':               /* Set CA timeout value */
            if(epicsScanDouble(optarg, &caTimeout) != 1)
            {
                fprintf(stderr, "'%s' is not a valid timeout value "
                        "- ignored. ('caget -h' for help.)\n", optarg);
                caTimeout = DEFAULT_TIMEOUT;
            }
            break;
        case '#':               /* Array count */
            if (sscanf(optarg,"%d", &count) != 1)
            {
                fprintf(stderr, "'%s' is not a valid array element count "
                        "- ignored. ('caget -h' for help.)\n", optarg);
                count = 0;
            }
            break;
        case 'p':               /* CA priority */
            if (sscanf(optarg,"%u", &caPriority) != 1)
            {
                fprintf(stderr, "'%s' is not a valid CA priority "
                        "- ignored. ('caget -h' for help.)\n", optarg);
                caPriority = DEFAULT_CA_PRIORITY;
            }
            if (caPriority > CA_PRIORITY_MAX) caPriority = CA_PRIORITY_MAX;
            break;
        case 's':               /* Select string dbr for floating type data */
            floatAsString = 1;
            break;
        case 'S':               /* Treat char array as (long) string */
            charArrAsStr = 1;
            break;
        case 'e':               /* Select %e/%f/%g format, using <arg> digits */
        case 'f':
        case 'g':
            if (sscanf(optarg, "%d", &digits) != 1)
                fprintf(stderr,
                        "Invalid precision argument '%s' "
                        "for option '-%c' - ignored.\n", optarg, opt);
            else
            {
                if (digits>=0 && digits<=VALID_DOUBLE_DIGITS)
                    sprintf(dblFormatStr, "%%-.%d%c", digits, opt);
                else
                    fprintf(stderr, "Precision %d for option '-%c' "
                            "out of range - ignored.\n", digits, opt);
            }
            break;
        case 'l':               /* Convert to long and use integer format */
        case '0':               /* Select integer format */
            switch ((char) *optarg) {
            case 'x': outType = hex; break;    /* x print Hex */
            case 'b': outType = bin; break;    /* b print Binary */
            case 'o': outType = oct; break;    /* o print Octal */
            default :
                outType = dec;
                fprintf(stderr, "Invalid argument '%s' "
                        "for option '-%c' - ignored.\n", optarg, opt);
            }
            if (outType != dec) {
              if (opt == '0') {
                type = DBR_LONG;
                outTypeI = outType;
              } else {
                outTypeF = outType;
              }
            }
            break;
        case 'F':               /* Store this for output and tool_lib formatting */
            fieldSeparator = (char) *optarg;
            break;
        case '?':
            fprintf(stderr,
                    "Unrecognized option: '-%c'. ('caget -h' for help.)\n",
                    optopt);
            return 1;
        case ':':
            fprintf(stderr,
                    "Option '-%c' requires an argument. ('caget -h' for help.)\n",
                    optopt);
            return 1;
        default :
            usage();
            return 1;
        }
    }

    nPvs = argc - optind;       /* Remaining arg list are PV names */

    if (nPvs < 1)
    {
        fprintf(stderr, "No pv name specified. ('caget -h' for help.)\n");
        return 1;
    }
                                /* Start up Channel Access */

    result = ca_context_create(ca_disable_preemptive_callback);
    if (result != ECA_NORMAL) {
        fprintf(stderr, "CA error %s occurred while trying "
                "to start channel access.\n", ca_message(result));
        return 1;
    }
                                /* Allocate PV structure array */

    pvs = calloc (nPvs, sizeof(pv));
    if (!pvs)
    {
        fprintf(stderr, "Memory allocation for channel structures failed.\n");
        return 1;
    }
                                /* Connect channels */

    for (n = 0; optind < argc; n++, optind++)
        pvs[n].name = argv[optind] ;       /* Copy PV names from command line */

    result = connect_pvs(pvs, nPvs);

                                /* Read and print data */
    if (!result)
        result = caget(pvs, nPvs, request, format, type, count);

                                /* Shut down Channel Access */
    ca_context_destroy();

    return result;
}
