#include "responseHandlers.h"

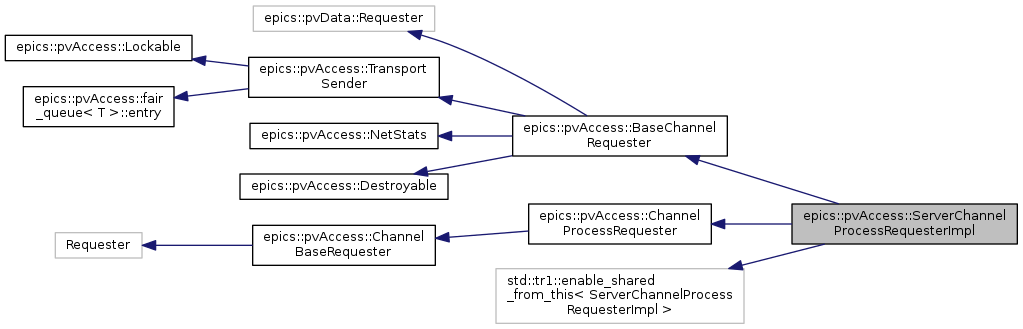

Inheritance diagram for epics::pvAccess::ServerChannelProcessRequesterImpl:

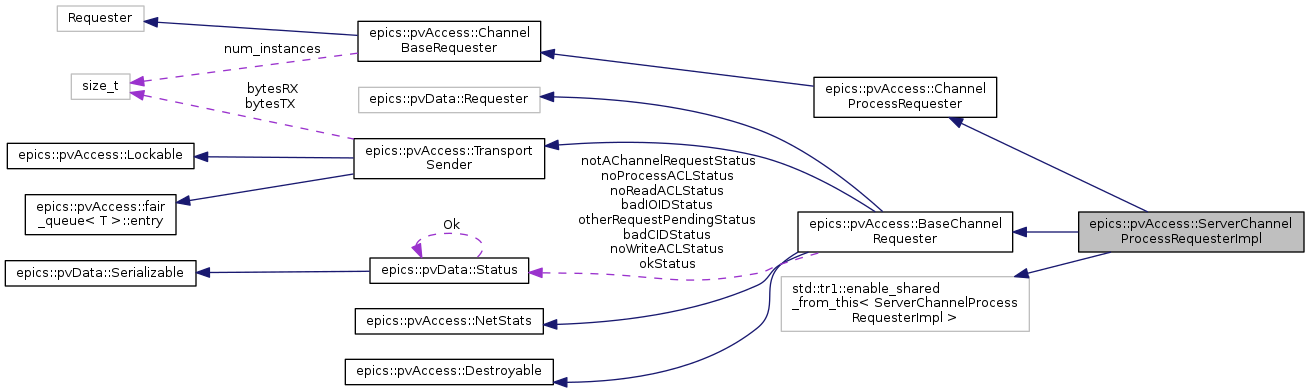

Collaboration diagram for epics::pvAccess::ServerChannelProcessRequesterImpl:

Public Types
typedef std::tr1::shared_ptr< ServerChannelProcessRequesterImpl >	shared_pointer

typedef std::tr1::shared_ptr< const ServerChannelProcessRequesterImpl >	const_shared_pointer

Public Types inherited from epics::pvAccess::ChannelProcessRequester
typedef ChannelProcess	operation_type

Public Member Functions
virtual	~ServerChannelProcessRequesterImpl ()

virtual void	channelProcessConnect (const epics::pvData::Status &status, ChannelProcess::shared_pointer const &channelProcess) OVERRIDE FINAL

virtual void	processDone (const epics::pvData::Status &status, ChannelProcess::shared_pointer const &channelProcess) OVERRIDE FINAL

virtual void	destroy () OVERRIDE FINAL

ChannelProcess::shared_pointer	getChannelProcess ()

virtual std::tr1::shared_ptr< ChannelRequest >	getOperation () OVERRIDE FINAL
	The Operation associated with this Requester, except for GetField and Monitor (which are special snowflakes...) More...

virtual void	send (epics::pvData::ByteBuffer buffer, TransportSendControl control) OVERRIDE FINAL

Public Member Functions inherited from epics::pvAccess::BaseChannelRequester
	POINTER_DEFINITIONS (BaseChannelRequester)

	BaseChannelRequester (ServerContextImpl::shared_pointer const &context, std::tr1::shared_ptr< ServerChannel > const &channel, const pvAccessID ioid, Transport::shared_pointer const &transport)

virtual	~BaseChannelRequester ()

bool	startRequest (epics::pvData::int32 qos)

void	stopRequest ()

epics::pvData::int32	getPendingRequest ()

virtual std::string	getRequesterName () OVERRIDE FINAL

virtual void	message (std::string const &message, epics::pvData::MessageType messageType) OVERRIDE FINAL

virtual void	stats (Stats &s) const OVERRIDE FINAL
	Query current counter values. More...

Public Member Functions inherited from epics::pvAccess::TransportSender
	POINTER_DEFINITIONS (TransportSender)

	TransportSender ()

virtual	~TransportSender ()

Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)

virtual	~Lockable ()

virtual void	lock ()

virtual void	unlock ()

Public Member Functions inherited from epics::pvAccess::fair_queue< T >::entry
	entry ()

	~entry ()

Public Member Functions inherited from epics::pvAccess::NetStats
virtual	~NetStats ()

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Member Functions inherited from epics::pvAccess::ChannelProcessRequester
	POINTER_DEFINITIONS (ChannelProcessRequester)

virtual	~ChannelProcessRequester ()

Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)

	ChannelBaseRequester ()

virtual	~ChannelBaseRequester ()

virtual void	channelDisconnect (bool destroy)

Static Public Member Functions
static ChannelProcessRequester::shared_pointer	create (ServerContextImpl::shared_pointer const &context, std::tr1::shared_ptr< ServerChannel > const &channel, const pvAccessID ioid, Transport::shared_pointer const &transport, epics::pvData::PVStructure::shared_pointer const &pvRequest)

Static Public Member Functions inherited from epics::pvAccess::BaseChannelRequester
static void	message (Transport::shared_pointer const &transport, const pvAccessID ioid, const std::string message, const epics::pvData::MessageType messageType)

static void	sendFailureMessage (const epics::pvData::int8 command, Transport::shared_pointer const &transport, const pvAccessID ioid, const epics::pvData::int8 qos, const epics::pvData::Status status)

Protected Member Functions
	ServerChannelProcessRequesterImpl (ServerContextImpl::shared_pointer const &context, std::tr1::shared_ptr< ServerChannel > const &channel, const pvAccessID ioid, Transport::shared_pointer const &transport)

void	activate (epics::pvData::PVStructure::shared_pointer const &pvRequest)

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Additional Inherited Members
Public Attributes inherited from epics::pvAccess::TransportSender
size_t	bytesTX

size_t	bytesRX

Static Public Attributes inherited from epics::pvAccess::BaseChannelRequester
static const epics::pvData::Status	okStatus = Status()

static const epics::pvData::Status	badCIDStatus

static const epics::pvData::Status	badIOIDStatus

static const epics::pvData::Status	noReadACLStatus

static const epics::pvData::Status	noWriteACLStatus

static const epics::pvData::Status	noProcessACLStatus

static const epics::pvData::Status	otherRequestPendingStatus

static const epics::pvData::Status	notAChannelRequestStatus

Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Protected Attributes inherited from epics::pvAccess::BaseChannelRequester
const pvAccessID	_ioid

const Transport::shared_pointer	_transport

const std::tr1::shared_ptr< ServerChannel >	_channel

epics::pvData::Mutex	_mutex

Detailed Description

Definition at line 642 of file responseHandlers.h.

Member Typedef Documentation

typedef std::tr1::shared_ptr<const ServerChannelProcessRequesterImpl> epics::pvAccess::ServerChannelProcessRequesterImpl::const_shared_pointer

Definition at line 649 of file responseHandlers.h.

typedef std::tr1::shared_ptr<ServerChannelProcessRequesterImpl> epics::pvAccess::ServerChannelProcessRequesterImpl::shared_pointer

Definition at line 648 of file responseHandlers.h.

Constructor & Destructor Documentation

epics::pvAccess::ServerChannelProcessRequesterImpl::ServerChannelProcessRequesterImpl	(	ServerContextImpl::shared_pointer const &	context,
		std::tr1::shared_ptr< ServerChannel > const &	channel,
		const pvAccessID	ioid,
		Transport::shared_pointer const &	transport
	)

protected

Definition at line 2536 of file responseHandlers.cpp.

                                                                      :
     BaseChannelRequester(context, channel, ioid, transport), _channelProcess()
 {
 }

virtual epics::pvAccess::ServerChannelProcessRequesterImpl::~ServerChannelProcessRequesterImpl ( )

inlinevirtual

Definition at line 659 of file responseHandlers.h.

659 {}

Member Function Documentation

void epics::pvAccess::ServerChannelProcessRequesterImpl::activate ( epics::pvData::PVStructure::shared_pointer const & pvRequest )

protected

Definition at line 2554 of file responseHandlers.cpp.

 {
     startRequest(QOS_INIT);
     shared_pointer thisPointer(shared_from_this());
     _channel->registerRequest(_ioid, thisPointer);
     INIT_EXCEPTION_GUARD(CMD_PROCESS, _channelProcess, _channel->getChannel()->createChannelProcess(thisPointer, pvRequest));
 }

void epics::pvAccess::ServerChannelProcessRequesterImpl::channelProcessConnect	(	const epics::pvData::Status &	status,
		ChannelProcess::shared_pointer const &	channelProcess
	)

virtual

The client and server have both completed the createChannelProcess request.

Parameters

status	Completion status.
channelProcess	The channelProcess interface or nullptr if the client could not become the record processor.

Implements epics::pvAccess::ChannelProcessRequester.

Definition at line 2562 of file responseHandlers.cpp.

 {
     {
         Lock guard(_mutex);
         _status = status;
         _channelProcess = channelProcess;
     }
     TransportSender::shared_pointer thisSender = shared_from_this();
     _transport->enqueueSendRequest(thisSender);

     // self-destruction
     if (!status.isSuccess())
     {
         destroy();
     }
 }

ChannelProcessRequester::shared_pointer epics::pvAccess::ServerChannelProcessRequesterImpl::create	(	ServerContextImpl::shared_pointer const &	context,
		std::tr1::shared_ptr< ServerChannel > const &	channel,
		const pvAccessID	ioid,
		Transport::shared_pointer const &	transport,
		epics::pvData::PVStructure::shared_pointer const &	pvRequest
	)

static

Definition at line 2543 of file responseHandlers.cpp.

 {
     // TODO use std::make_shared
     std::tr1::shared_ptr<ServerChannelProcessRequesterImpl> tp(new ServerChannelProcessRequesterImpl(context, channel, ioid, transport));
     ChannelProcessRequester::shared_pointer thisPointer = tp;
     static_cast<ServerChannelProcessRequesterImpl*>(thisPointer.get())->activate(pvRequest);
     return thisPointer;
 }

void epics::pvAccess::ServerChannelProcessRequesterImpl::destroy ( )

virtual

Destroy this instance.

Implements epics::pvAccess::Destroyable.

Definition at line 2589 of file responseHandlers.cpp.

 {
     // keep a reference to ourselves as the owner
     // could release its reference and we don't want to be
     // destroyed prematurely
     shared_pointer self(shared_from_this());

     {
         Lock guard(_mutex);
         _channel->unregisterRequest(_ioid);

         if (_channelProcess.get())
         {
             _channelProcess->destroy();
         }
     }
     // TODO
     _channelProcess.reset();
 }

ChannelProcess::shared_pointer epics::pvAccess::ServerChannelProcessRequesterImpl::getChannelProcess ( )

Definition at line 2609 of file responseHandlers.cpp.

 {
     //Lock guard(_mutex);
     return _channelProcess;
 }

virtual std::tr1::shared_ptr<ChannelRequest> epics::pvAccess::ServerChannelProcessRequesterImpl::getOperation ( )

inlinevirtual

The Operation associated with this Requester, except for GetField and Monitor (which are special snowflakes...)

Implements epics::pvAccess::BaseChannelRequester.

Definition at line 666 of file responseHandlers.h.

666 { return getChannelProcess(); }

epics::pvAccess::ServerChannelProcessRequesterImpl::getChannelProcess

ChannelProcess::shared_pointer getChannelProcess()

Definition: responseHandlers.cpp:2609

void epics::pvAccess::ServerChannelProcessRequesterImpl::processDone	(	const epics::pvData::Status &	status,
		ChannelProcess::shared_pointer const &	channelProcess
	)

virtual

The process request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelProcess	The channelProcess interface.

Implements epics::pvAccess::ChannelProcessRequester.

Definition at line 2579 of file responseHandlers.cpp.

 {
     {
         Lock guard(_mutex);
         _status = status;
     }
     TransportSender::shared_pointer thisSender = shared_from_this();
     _transport->enqueueSendRequest(thisSender);
 }

void epics::pvAccess::ServerChannelProcessRequesterImpl::send	(	epics::pvData::ByteBuffer *	buffer,
		TransportSendControl *	control
	)

virtual

Called by transport. By this call transport gives callee ownership over the buffer. Calls on TransportSendControl instance must be made from calling thread. Moreover, ownership is valid only for the time of call of this method. NOTE: these limitations allow efficient implementation.

Implements epics::pvAccess::TransportSender.

Definition at line 2615 of file responseHandlers.cpp.

 {
     const int32 request = getPendingRequest();

     control->startMessage((int32)CMD_PROCESS, sizeof(int32)/sizeof(int8) + 1);
     buffer->putInt(_ioid);
     buffer->putByte((int8)request);
     {
         Lock guard(_mutex);
         _status.serialize(buffer, control);
     }

     stopRequest();

     // lastRequest
     if ((QOS_DESTROY & request) != 0)
     {
         destroy();
     }
 }

The documentation for this class was generated from the following files:

modules/pvAccess/src/server/pv/responseHandlers.h
modules/pvAccess/src/server/responseHandlers.cpp
