epics::pvAccess::ChannelProcess Class Referenceabstract

#include "pvAccess.h"

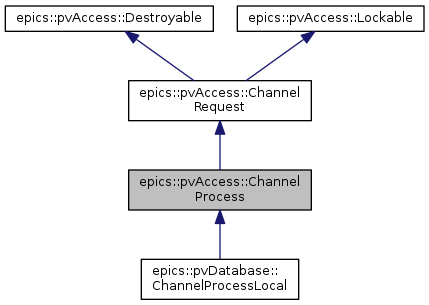

+ Inheritance diagram for epics::pvAccess::ChannelProcess:

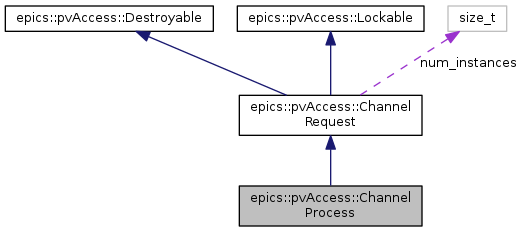

+ Collaboration diagram for epics::pvAccess::ChannelProcess:

Public Types

typedef ChannelProcessRequester requester_type


Public Member Functions

 POINTER_DEFINITIONS (ChannelProcess)

virtual ~ChannelProcess ()

virtual void process ()=0

- Public Member Functions inherited from epics::pvAccess::ChannelRequest
 POINTER_DEFINITIONS (ChannelRequest)

 ChannelRequest ()

virtual ~ChannelRequest ()

virtual std::tr1::shared_ptr< Channel > getChannel ()=0

virtual void cancel ()=0

virtual void lastRequest ()=0

- Public Member Functions inherited from epics::pvAccess::Destroyable
 POINTER_DEFINITIONS (Destroyable)

virtual void destroy ()=0

- Public Member Functions inherited from epics::pvAccess::Lockable
 POINTER_DEFINITIONS (Lockable)

virtual ~Lockable ()

virtual void lock ()

virtual void unlock ()


Additional Inherited Members

- Static Public Attributes inherited from epics::pvAccess::ChannelRequest
static size_t num_instances

- Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual ~Destroyable ()


Detailed Description

ChannelProcess - request that a channel be processed..

Definition at line 551 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelProcessRequester epics::pvAccess::ChannelProcess::requester_type

Definition at line 554 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelProcess::~ChannelProcess ( )
inlinevirtual

Definition at line 556 of file pvAccess.h.

556 {}

Member Function Documentation

epics::pvAccess::ChannelProcess::POINTER_DEFINITIONS ( ChannelProcess  )
virtual void epics::pvAccess::ChannelProcess::process ( )
pure virtual

Issue a process request. Completion status is reported by calling ChannelProcessRequester.processDone() callback.

Implemented in epics::pvDatabase::ChannelProcessLocal.

The documentation for this class was generated from the following file:
