pvData.h File Reference

#include <string>
#include <map>
#include <stdexcept>
#include <algorithm>
#include <iterator>
#include <iostream>
#include <iomanip>
#include <epicsAssert.h>
#include <pv/pvIntrospect.h>
#include <pv/typeCast.h>
#include <pv/anyscalar.h>
#include <pv/sharedVector.h>
#include <shareLib.h>
#include <compilerDependencies.h>

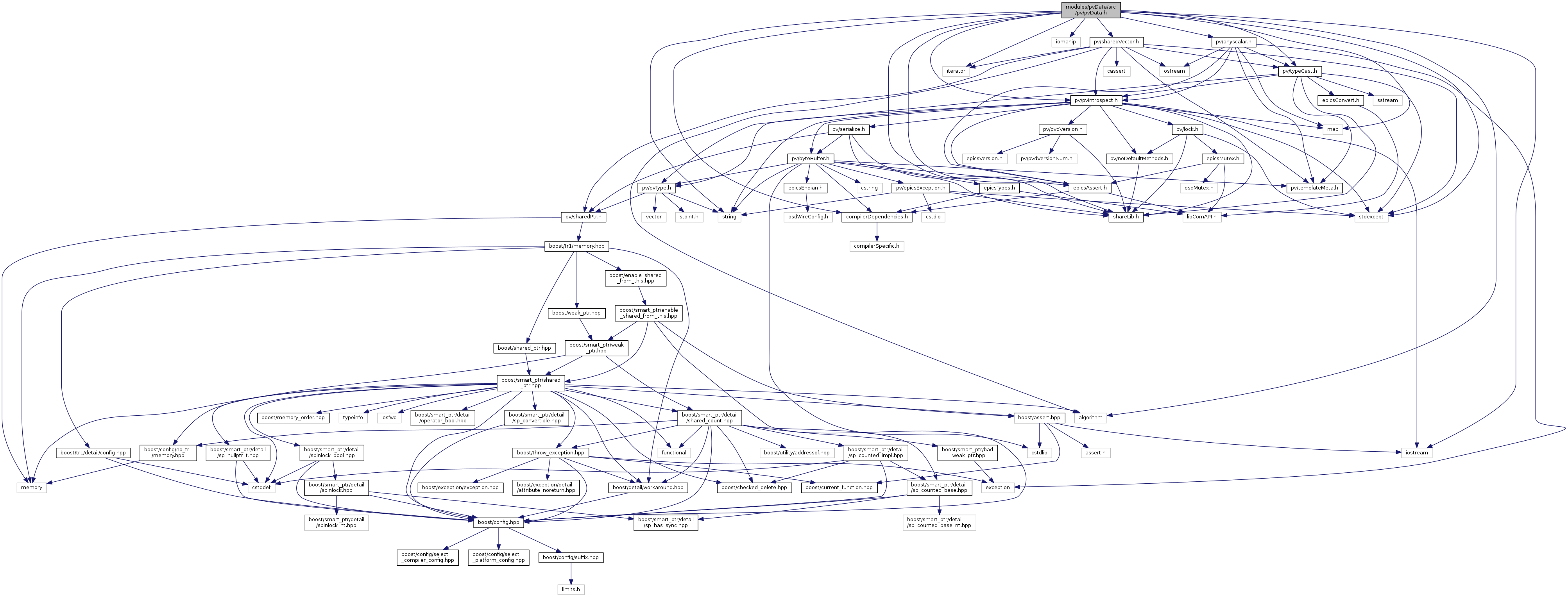

Include dependency graph for pvData.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	epics::pvData::PVScalarValue< T >
	Class that holds the data for each possible scalar type. More...
class	epics::pvData::PVValueArray< T >
	template class for all extensions of PVArray. More...
class	epics::pvData::PostHandler
	This class is implemented by code that calls setPostHander. More...
class	epics::pvData::PVField
	PVField is the base class for each PVData field. More...
class	epics::pvData::PVScalar
	PVScalar is the base class for each scalar field. More...
struct	epics::pvData::detail::ScalarStorageOps< T >
struct	epics::pvData::detail::ScalarStorageOps< std::string >
class	epics::pvData::PVScalarValue< T >
	Class that holds the data for each possible scalar type. More...
class	epics::pvData::PVString
	PVString is special case, since it implements SerializableArray. More...
class	epics::pvData::PVArray
	PVArray is the base class for all array types. More...
class	epics::pvData::PVScalarArray
	Base class for a scalarArray. More...
class	epics::pvData::PVStructure
	Data interface for a structure,. More...
struct	epics::pvData::PVStructure::Formatter
class	epics::pvData::PVUnion
	PVUnion has a single subfield. More...
struct	epics::pvData::detail::shared_ptr_vector_deletor< T >
class	epics::pvData::detail::PVVectorStorage< T, Base >
	Common code for PV*Array. More...
class	epics::pvData::PVValueArray< T >
	template class for all extensions of PVArray. More...
class	epics::pvData::PVValueArray< PVStructurePtr >
	Data class for a structureArray. More...
class	epics::pvData::PVValueArray< PVUnionPtr >
	Data class for a unionArray. More...
class	epics::pvData::PVDataCreate
	This is a singleton class for creating data instances. More...

Namespaces
	epics
	TODO only here because of the Lockable.
	epics::pvData
	pvData
	epics::pvData::detail
	std

Typedefs
typedef std::tr1::shared_ptr< PostHandler >	epics::pvData::PostHandlerPtr
typedef std::tr1::shared_ptr< PVField >	epics::pvData::PVFieldPtr
typedef std::vector< PVFieldPtr >	epics::pvData::PVFieldPtrArray
typedef std::vector< PVFieldPtr >::iterator	epics::pvData::PVFieldPtrArray_iterator
typedef std::vector< PVFieldPtr >::const_iterator	epics::pvData::PVFieldPtrArray_const__iterator
typedef std::tr1::shared_ptr< PVScalar >	epics::pvData::PVScalarPtr
typedef std::tr1::shared_ptr< PVScalarArray >	epics::pvData::PVScalarArrayPtr
typedef std::tr1::shared_ptr< PVStructure >	epics::pvData::PVStructurePtr
typedef std::vector< PVStructurePtr >	epics::pvData::PVStructurePtrArray
typedef std::vector< PVStructurePtr >::iterator	epics::pvData::PVStructurePtrArray_iterator
typedef std::vector< PVStructurePtr >::const_iterator	epics::pvData::PVStructurePtrArray_const__iterator
typedef PVValueArray< PVStructurePtr >	epics::pvData::PVStructureArray
typedef std::tr1::shared_ptr< PVStructureArray >	epics::pvData::PVStructureArrayPtr
typedef std::vector< PVStructureArrayPtr >	epics::pvData::PVStructureArrayPtrArray
typedef std::tr1::shared_ptr< PVStructureArrayPtrArray >	epics::pvData::PVStructureArrayPtrArrayPtr
typedef std::tr1::shared_ptr< PVUnion >	epics::pvData::PVUnionPtr
typedef std::vector< PVUnionPtr >	epics::pvData::PVUnionPtrArray
typedef std::vector< PVUnionPtr >::iterator	epics::pvData::PVUnionPtrArray_iterator
typedef std::vector< PVUnionPtr >::const_iterator	epics::pvData::PVUnionPtrArray_const__iterator
typedef PVValueArray< PVUnionPtr >	epics::pvData::PVUnionArray
typedef std::tr1::shared_ptr< PVUnionArray >	epics::pvData::PVUnionArrayPtr
typedef std::vector< PVUnionArrayPtr >	epics::pvData::PVUnionArrayPtrArray
typedef std::tr1::shared_ptr< PVUnionArrayPtrArray >	epics::pvData::PVUnionArrayPtrArrayPtr
typedef std::tr1::shared_ptr< PVDataCreate >	epics::pvData::PVDataCreatePtr
typedef PVScalarValue< boolean >	epics::pvData::PVBoolean
typedef PVScalarValue< int8 >	epics::pvData::PVByte
typedef PVScalarValue< int16 >	epics::pvData::PVShort
typedef PVScalarValue< int32 >	epics::pvData::PVInt
typedef PVScalarValue< int64 >	epics::pvData::PVLong
typedef PVScalarValue< uint8 >	epics::pvData::PVUByte
typedef PVScalarValue< uint16 >	epics::pvData::PVUShort
typedef PVScalarValue< uint32 >	epics::pvData::PVUInt
typedef PVScalarValue< uint64 >	epics::pvData::PVULong
typedef PVScalarValue< float >	epics::pvData::PVFloat
typedef PVScalarValue< double >	epics::pvData::PVDouble
typedef std::tr1::shared_ptr< PVBoolean >	epics::pvData::PVBooleanPtr
typedef std::tr1::shared_ptr< PVByte >	epics::pvData::PVBytePtr
typedef std::tr1::shared_ptr< PVShort >	epics::pvData::PVShortPtr
typedef std::tr1::shared_ptr< PVInt >	epics::pvData::PVIntPtr
typedef std::tr1::shared_ptr< PVLong >	epics::pvData::PVLongPtr
typedef std::tr1::shared_ptr< PVUByte >	epics::pvData::PVUBytePtr
typedef std::tr1::shared_ptr< PVUShort >	epics::pvData::PVUShortPtr
typedef std::tr1::shared_ptr< PVUInt >	epics::pvData::PVUIntPtr
typedef std::tr1::shared_ptr< PVULong >	epics::pvData::PVULongPtr
typedef std::tr1::shared_ptr< PVFloat >	epics::pvData::PVFloatPtr
typedef std::tr1::shared_ptr< PVDouble >	epics::pvData::PVDoublePtr
typedef std::tr1::shared_ptr< PVString >	epics::pvData::PVStringPtr
typedef PVValueArray< boolean >	epics::pvData::PVBooleanArray
typedef std::tr1::shared_ptr< PVBooleanArray >	epics::pvData::PVBooleanArrayPtr
typedef PVValueArray< int8 >	epics::pvData::PVByteArray
typedef std::tr1::shared_ptr< PVByteArray >	epics::pvData::PVByteArrayPtr
typedef PVValueArray< int16 >	epics::pvData::PVShortArray
typedef std::tr1::shared_ptr< PVShortArray >	epics::pvData::PVShortArrayPtr
typedef PVValueArray< int32 >	epics::pvData::PVIntArray
typedef std::tr1::shared_ptr< PVIntArray >	epics::pvData::PVIntArrayPtr
typedef PVValueArray< int64 >	epics::pvData::PVLongArray
typedef std::tr1::shared_ptr< PVLongArray >	epics::pvData::PVLongArrayPtr
typedef PVValueArray< uint8 >	epics::pvData::PVUByteArray
typedef std::tr1::shared_ptr< PVUByteArray >	epics::pvData::PVUByteArrayPtr
typedef PVValueArray< uint16 >	epics::pvData::PVUShortArray
typedef std::tr1::shared_ptr< PVUShortArray >	epics::pvData::PVUShortArrayPtr
typedef PVValueArray< uint32 >	epics::pvData::PVUIntArray
typedef std::tr1::shared_ptr< PVUIntArray >	epics::pvData::PVUIntArrayPtr
typedef PVValueArray< uint64 >	epics::pvData::PVULongArray
typedef std::tr1::shared_ptr< PVULongArray >	epics::pvData::PVULongArrayPtr
typedef PVValueArray< float >	epics::pvData::PVFloatArray
typedef std::tr1::shared_ptr< PVFloatArray >	epics::pvData::PVFloatArrayPtr
typedef PVValueArray< double >	epics::pvData::PVDoubleArray
typedef std::tr1::shared_ptr< PVDoubleArray >	epics::pvData::PVDoubleArrayPtr
typedef PVValueArray< std::string >	epics::pvData::PVStringArray
typedef std::tr1::shared_ptr< PVStringArray >	epics::pvData::PVStringArrayPtr

Functions
std::ostream &	epics::pvData::operator<< (std::ostream &o, const PVField &f)
std::ostream &	epics::pvData::operator<< (format::array_at_internal const &manip, const PVArray &array)
std::ostream &	epics::pvData::operator<< (std::ostream &strm, const PVStructure::Formatter &format)
FORCE_INLINE const PVDataCreatePtr &	epics::pvData::getPVDataCreate ()
bool	epics::pvData::operator== (const PVField &left, const PVField &right)
std::ostream &	std::operator<< (std::ostream &o, const epics::pvData::PVField *ptr)
