PVArray is the base class for all array types. More...

#include "pvData.h"

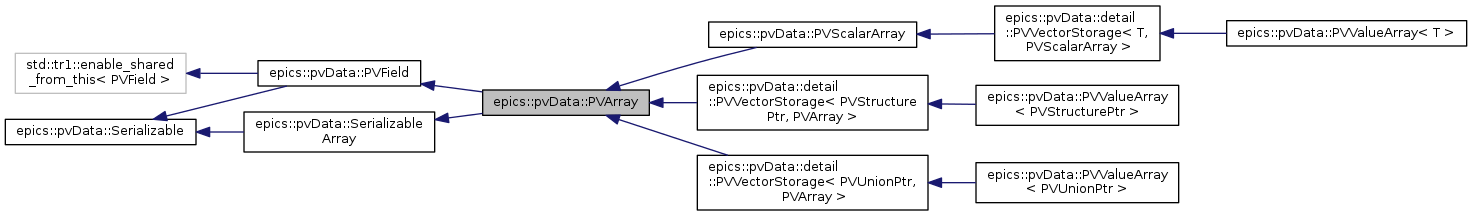

Inheritance diagram for epics::pvData::PVArray:

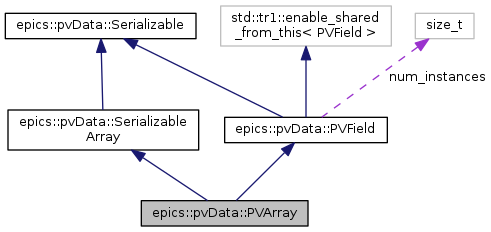

Collaboration diagram for epics::pvData::PVArray:

Public Member Functions
	POINTER_DEFINITIONS (PVArray)

virtual	~PVArray ()

virtual ArrayConstPtr	getArray () const =0

virtual void	setImmutable () OVERRIDE

virtual std::size_t	getLength () const =0

virtual void	setLength (std::size_t length)=0

virtual std::size_t	getCapacity () const =0

bool	isCapacityMutable () const

void	setCapacityMutable (bool isMutable)

virtual void	setCapacity (std::size_t capacity)=0

virtual std::ostream &	dumpValue (std::ostream &o, std::size_t index) const =0

Public Member Functions inherited from epics::pvData::PVField
	POINTER_DEFINITIONS (PVField)

virtual	~PVField ()

const std::string &	getFieldName () const

std::string	getFullName () const

std::size_t	getFieldOffset () const

std::size_t	getNextFieldOffset () const

std::size_t	getNumberFields () const

bool	isImmutable () const

const FieldConstPtr &	getField () const

PVStructure *	getParent ()

const PVStructure *	getParent () const

void	postPut ()

void	setPostHandler (PostHandlerPtr const &postHandler)

virtual bool	equals (PVField &pv)

virtual std::ostream &	dumpValue (std::ostream &o) const =0

void	copy (const PVField &from)

void	copyUnchecked (const PVField &from)

Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()

virtual void	serialize (ByteBuffer buffer, SerializableControl flusher) const =0

virtual void	deserialize (ByteBuffer buffer, DeserializableControl flusher)=0

Public Member Functions inherited from epics::pvData::SerializableArray
virtual	~SerializableArray ()

virtual void	serialize (ByteBuffer buffer, SerializableControl flusher, std::size_t offset, std::size_t count) const =0

Protected Member Functions
	PVArray (FieldConstPtr const &field)

void	checkLength (size_t length) const

Protected Member Functions inherited from epics::pvData::PVField
PVField::shared_pointer	getPtrSelf ()

	PVField (FieldConstPtr field)

void	setParentAndName (PVStructure *parent, std::string const &fieldName)

Friends
class	PVDataCreate

Additional Inherited Members
Public Types inherited from epics::pvData::PVField
enum	{ isPVField =1 }

Static Public Attributes inherited from epics::pvData::PVField
static size_t	num_instances

Detailed Description

PVArray is the base class for all array types.

The array types are unionArray, strucrtureArray and scalarArray. There is a scalarArray type for each scalarType.

Definition at line 551 of file pvData.h.

Constructor & Destructor Documentation

virtual epics::pvData::PVArray::~PVArray ( )

inlinevirtual

Destructor

Definition at line 557 of file pvData.h.

557 {};

epics::pvData::PVArray::PVArray ( FieldConstPtr const & field )

explicitprotected

Definition at line 23 of file PVArray.cpp.

24 : PVField(field),capacityMutable(true)

25 { }

epics::pvData::PVField::PVField

PVField(FieldConstPtr field)

Definition: PVField.cpp:30

Member Function Documentation

void epics::pvData::PVArray::checkLength ( size_t length ) const

protected

Definition at line 177 of file PVDataCreateFactory.cpp.

 {
     Array::ArraySizeType type = getArray()->getArraySizeType();
     if (type != Array::variable)
     {
         size_t size = getArray()->getMaximumCapacity();
         if (type == Array::fixed && len != size)
             throw std::invalid_argument("invalid length for a fixed size array");
         else if (type == Array::bounded && len > size)
             throw std::invalid_argument("new array capacity too large for a bounded size array");
     }
 }

virtual std::ostream& epics::pvData::PVArray::dumpValue	(	std::ostream &	o,
		std::size_t	index
	)		const

pure virtual

Implemented in epics::pvData::PVValueArray< PVUnionPtr >, and epics::pvData::PVValueArray< PVStructurePtr >.

virtual ArrayConstPtr epics::pvData::PVArray::getArray ( ) const

pure virtual

Get the introspection interface

Returns: The interface.

Implemented in epics::pvData::PVValueArray< PVUnionPtr >, epics::pvData::PVValueArray< PVStructurePtr >, and epics::pvData::PVValueArray< T >.

virtual std::size_t epics::pvData::PVArray::getCapacity ( ) const

pure virtual

Get the array capacity.

Returns: The capacity.

Implemented in epics::pvData::PVValueArray< PVUnionPtr >, epics::pvData::PVValueArray< PVStructurePtr >, and epics::pvData::PVValueArray< T >.

virtual std::size_t epics::pvData::PVArray::getLength ( ) const

pure virtual

Get the array length.

Returns: The length.

Implemented in epics::pvData::PVValueArray< PVUnionPtr >, epics::pvData::PVValueArray< PVStructurePtr >, and epics::pvData::PVValueArray< T >.

bool epics::pvData::PVArray::isCapacityMutable ( ) const

Can the capacity be changed.

Returns: (false,true) if (can not, can) be changed.

Definition at line 33 of file PVArray.cpp.

  {
       if(PVField::isImmutable()) {
           return false;
       }
       return capacityMutable;
  }

epics::pvData::PVArray::POINTER_DEFINITIONS ( PVArray )

virtual void epics::pvData::PVArray::setCapacity ( std::size_t capacity )

pure virtual

Set the array capacity.

Parameters

capacity The capacity.

void epics::pvData::PVArray::setCapacityMutable ( bool isMutable )

Set the mutability of the array capacity.

Returns: false or true

Definition at line 41 of file PVArray.cpp.

  {
     if(isMutable && PVField::isImmutable()) {
        throw std::runtime_error("field is immutable");
     }
     capacityMutable = isMutable;
  }

void epics::pvData::PVArray::setImmutable ( )

virtual

Set the field to be immutable, i.e. it can no longer be modified. This is permanent, i.e. once done the field cannot be made mutable.

Reimplemented from epics::pvData::PVField.

Definition at line 27 of file PVArray.cpp.

  {
      capacityMutable = false;
      PVField::setImmutable();
  }

virtual void epics::pvData::PVArray::setLength ( std::size_t length )

pure virtual

Set the array length.

Parameters

length The length.

Implemented in epics::pvData::PVValueArray< PVUnionPtr >, and epics::pvData::PVValueArray< PVStructurePtr >.

Friends And Related Function Documentation

friend class PVDataCreate

friend

Definition at line 607 of file pvData.h.

The documentation for this class was generated from the following files:

modules/pvData/src/pv/pvData.h
modules/pvData/src/factory/PVArray.cpp
modules/pvData/src/factory/PVDataCreateFactory.cpp
