epics::pvData::Array Class Reference

This class implements introspection object for Array. More...

#include "pvIntrospect.h"

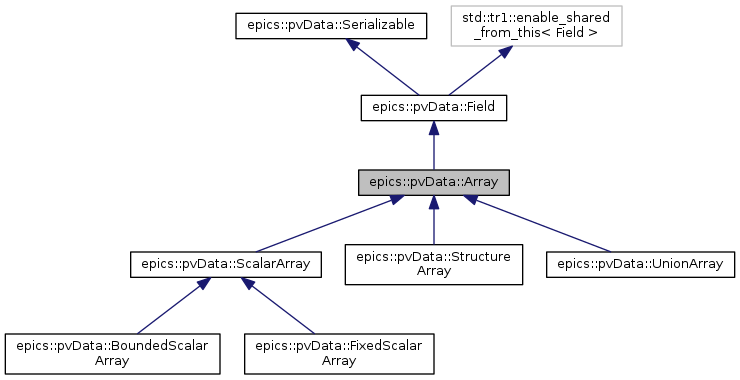

Inheritance diagram for epics::pvData::Array:

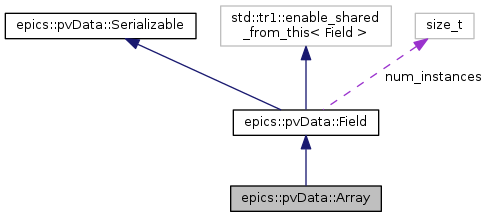

Collaboration diagram for epics::pvData::Array:

Public Types
enum	ArraySizeType { variable, fixed, bounded }
typedef Array &	reference
typedef const Array &	const_reference
Public Types inherited from epics::pvData::Field
enum	{ isField =1 }

Public Member Functions
	POINTER_DEFINITIONS (Array)
virtual	~Array ()
virtual ArraySizeType	getArraySizeType () const =0
virtual std::size_t	getMaximumCapacity () const =0
Public Member Functions inherited from epics::pvData::Field
	POINTER_DEFINITIONS (Field)
virtual	~Field ()
Type	getType () const
virtual std::string	getID () const =0
virtual std::ostream &	dump (std::ostream &o) const =0
std::tr1::shared_ptr< PVField >	build () const
Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()
virtual void	serialize (ByteBuffer *buffer, SerializableControl *flusher) const =0
virtual void	deserialize (ByteBuffer *buffer, DeserializableControl *flusher)=0

Protected Member Functions
	Array (Type type)
Protected Member Functions inherited from epics::pvData::Field
	Field (Type type)
void	cacheCleanup ()

Additional Inherited Members
Static Public Attributes inherited from epics::pvData::Field
static size_t	num_instances

Detailed Description

This class implements introspection object for Array.

Definition at line 462 of file pvIntrospect.h.

Member Typedef Documentation

typedef const Array& epics::pvData::Array::const_reference

Definition at line 467 of file pvIntrospect.h.

typedef Array& epics::pvData::Array::reference

Definition at line 466 of file pvIntrospect.h.

Member Enumeration Documentation

enum epics::pvData::Array::ArraySizeType

Enumerator
variable
fixed
bounded

Definition at line 469 of file pvIntrospect.h.

{ variable, fixed, bounded };

Constructor & Destructor Documentation

epics::pvData::Array::~Array ( )

virtual

Definition at line 308 of file FieldCreateFactory.cpp.

{}

epics::pvData::Array::Array ( Type  type )

protected

Constructor

Parameters

type	The field type.

Definition at line 303 of file FieldCreateFactory.cpp.

    : Field(type)
{
}

Member Function Documentation

virtual ArraySizeType epics::pvData::Array::getArraySizeType ( ) const

pure virtual

Get array size type (i.e. variable/fixed/bounded size array).

Returns

array size type enum.

Implemented in epics::pvData::UnionArray, epics::pvData::StructureArray, epics::pvData::FixedScalarArray, epics::pvData::BoundedScalarArray, and epics::pvData::ScalarArray.

virtual std::size_t epics::pvData::Array::getMaximumCapacity ( ) const

pure virtual

Get maximum capacity of the array.

Returns

maximum capacity of the array, 0 indicates variable size array.

Implemented in epics::pvData::UnionArray, epics::pvData::StructureArray, epics::pvData::FixedScalarArray, epics::pvData::BoundedScalarArray, and epics::pvData::ScalarArray.

epics::pvData::Array::POINTER_DEFINITIONS

(

Array

)

---

The documentation for this class was generated from the following files:

• modules/pvData/src/pv/pvIntrospect.h
• modules/pvData/src/factory/FieldCreateFactory.cpp
