epics::pvData::PVString Class Reference

PVString is special case, since it implements SerializableArray. More...

#include "pvData.h"

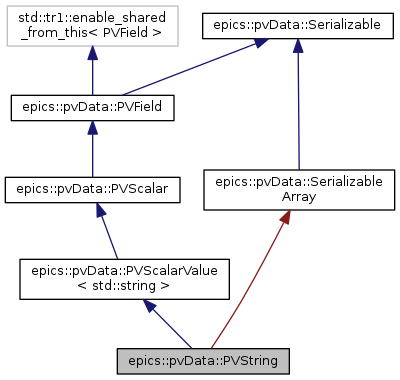

Inheritance diagram for epics::pvData::PVString:

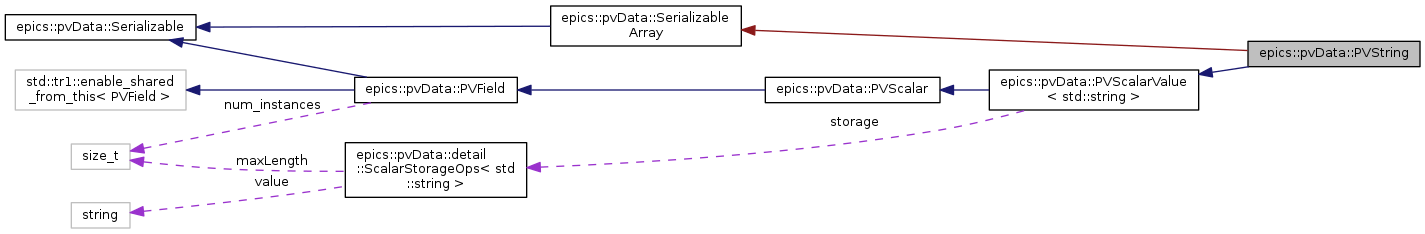

Collaboration diagram for epics::pvData::PVString:

Public Member Functions
virtual	~PVString ()
virtual std::ostream &	dumpValue (std::ostream &o) const OVERRIDE FINAL
virtual void	serialize (ByteBuffer *pbuffer, SerializableControl *pflusher) const OVERRIDE FINAL
virtual void	serialize (ByteBuffer *pbuffer, SerializableControl *pflusher, size_t offset, size_t count) const OVERRIDE FINAL
Public Member Functions inherited from epics::pvData::PVScalarValue< std::string >
	POINTER_DEFINITIONS (PVScalarValue)
virtual	~PVScalarValue ()
storage_t::arg_type	get () const
void	put (typename storage_t::arg_type v)
virtual void	operator>>= (std::string &value) const
virtual void	operator<<= (typename storage_t::arg_type value)
T1	getAs () const
virtual void	getAs (AnyScalar &v) const OVERRIDE FINAL
void	putFrom (typename detail::ScalarStorageOps< T1 >::arg_type val)
void	putFrom (const AnyScalar &v)
virtual void	putFrom (const void *src, ScalarType stype) OVERRIDE FINAL
	Convert and assign. More...
virtual void	assign (const PVScalar &scalar) OVERRIDE FINAL
virtual void	copy (const PVScalar &from) OVERRIDE FINAL
virtual void	copyUnchecked (const PVScalar &from) OVERRIDE FINAL
virtual void	deserialize (ByteBuffer *pbuffer, DeserializableControl *pflusher) OVERRIDE FINAL
Public Member Functions inherited from epics::pvData::PVScalar
	POINTER_DEFINITIONS (PVScalar)
virtual	~PVScalar ()
const ScalarConstPtr	getScalar () const
template<typename T >
T	getAs () const
template<typename T >
void	putFrom (T val)
void	putFrom (const AnyScalar &v)
Public Member Functions inherited from epics::pvData::PVField
	POINTER_DEFINITIONS (PVField)
virtual	~PVField ()
const std::string &	getFieldName () const
std::string	getFullName () const
std::size_t	getFieldOffset () const
std::size_t	getNextFieldOffset () const
std::size_t	getNumberFields () const
bool	isImmutable () const
virtual void	setImmutable ()
const FieldConstPtr &	getField () const
PVStructure *	getParent ()
const PVStructure *	getParent () const
void	postPut ()
void	setPostHandler (PostHandlerPtr const &postHandler)
virtual bool	equals (PVField &pv)
void	copy (const PVField &from)
void	copyUnchecked (const PVField &from)
Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()

Protected Member Functions
	PVString (ScalarConstPtr const &scalar)
Protected Member Functions inherited from epics::pvData::PVScalarValue< std::string >
virtual void	getAs (void *result, ScalarType rtype) const OVERRIDE FINAL
	PVScalarValue (ScalarConstPtr const &scalar)
Protected Member Functions inherited from epics::pvData::PVScalar
	PVScalar (ScalarConstPtr const &scalar)
Protected Member Functions inherited from epics::pvData::PVField
PVField::shared_pointer	getPtrSelf ()
	PVField (FieldConstPtr field)
void	setParentAndName (PVStructure *parent, std::string const &fieldName)

Friends
class	PVDataCreate

Additional Inherited Members
Public Types inherited from epics::pvData::PVScalarValue< std::string >
typedef std::string	value_type
typedef std::string *	pointer
typedef const std::string *	const_pointer
Public Types inherited from epics::pvData::PVScalar
typedef PVScalar &	reference
typedef const PVScalar &	const_reference
Public Types inherited from epics::pvData::PVField
enum	{ isPVField =1 }
Static Public Attributes inherited from epics::pvData::PVScalarValue< std::string >
static const ScalarType	typeCode
Static Public Attributes inherited from epics::pvData::PVField
static size_t	num_instances
Protected Attributes inherited from epics::pvData::PVScalarValue< std::string >
storage_t	storage

Detailed Description

PVString is special case, since it implements SerializableArray.

Definition at line 521 of file pvData.h.

Constructor & Destructor Documentation

virtual epics::pvData::PVString::~PVString ( )

inlinevirtual

Destructor

Definition at line 526 of file pvData.h.

{}

epics::pvData::PVString::PVString ( ScalarConstPtr const &  scalar )

explicitprotected

Definition at line 135 of file PVDataCreateFactory.cpp.

    : PVScalarValue<std::string>(scalar)
{
    BoundedStringConstPtr boundedString = std::tr1::dynamic_pointer_cast<const BoundedString>(scalar);
    if (boundedString.get())
        storage.maxLength = boundedString->getMaximumLength();
    else
        storage.maxLength = 0;
}

Member Function Documentation

std::ostream & epics::pvData::PVString::dumpValue ( std::ostream &  o ) const

virtual

Puts the PVField raw value to the stream.

Parameters

o	output stream.

Returns

The output stream.

Reimplemented from epics::pvData::PVScalarValue< std::string >.

Definition at line 145 of file PVDataCreateFactory.cpp.

{
    // we escape, but do not quote, for scalar string
    o<<escape(get());
    return o;
}

void epics::pvData::PVString::serialize ( ByteBuffer *  pbuffer, SerializableControl *  pflusher  ) const

virtual

Serialize field into given buffer.

Parameters

buffer	serialization buffer.
flusher	flush interface.

Reimplemented from epics::pvData::PVScalarValue< std::string >.

Definition at line 156 of file PVDataCreateFactory.cpp.

{PVScalarValue<std::string>::serialize(pbuffer, pflusher);}

void epics::pvData::PVString::serialize ( ByteBuffer *  pbuffer, SerializableControl *  pflusher, size_t  offset, size_t  count  ) const

virtual

Definition at line 160 of file PVDataCreateFactory.cpp.

{
    // check bounds
    const size_t length = storage.value.length();
    /*if (offset < 0) offset = 0;
    else*/ if (offset > length) offset = length;
    //if (count < 0) count = length;

    const size_t maxCount = length - offset;
    if (count > maxCount)
        count = maxCount;

    // write
    SerializeHelper::serializeSubstring(storage.value, offset, count, pbuffer, pflusher);
}

Friends And Related Function Documentation

friend class PVDataCreate

friend

Definition at line 537 of file pvData.h.

---

The documentation for this class was generated from the following files:

• modules/pvData/src/pv/pvData.h
• modules/pvData/src/factory/PVDataCreateFactory.cpp
