epics::pvData::PVScalar Class Reference

PVScalar is the base class for each scalar field. More...

#include "pvData.h"

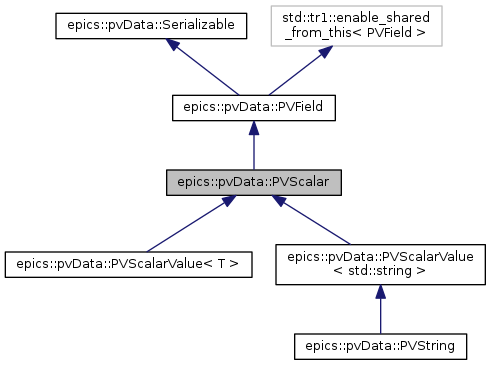

Inheritance diagram for epics::pvData::PVScalar:

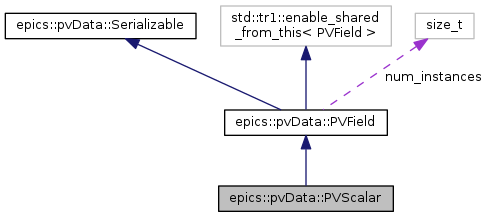

Collaboration diagram for epics::pvData::PVScalar:

Public Types
typedef PVScalar &	reference
typedef const PVScalar &	const_reference
Public Types inherited from epics::pvData::PVField
enum	{ isPVField =1 }

Public Member Functions
	POINTER_DEFINITIONS (PVScalar)
virtual	~PVScalar ()
const ScalarConstPtr	getScalar () const
template<typename T >
T	getAs () const
virtual void	getAs (AnyScalar &v) const =0
template<typename T >
void	putFrom (T val)
virtual void	putFrom (const void *, ScalarType)=0
	Convert and assign. More...
void	putFrom (const AnyScalar &v)
virtual void	assign (const PVScalar &)=0
virtual void	copy (const PVScalar &from)=0
virtual void	copyUnchecked (const PVScalar &from)=0
Public Member Functions inherited from epics::pvData::PVField
	POINTER_DEFINITIONS (PVField)
virtual	~PVField ()
const std::string &	getFieldName () const
std::string	getFullName () const
std::size_t	getFieldOffset () const
std::size_t	getNextFieldOffset () const
std::size_t	getNumberFields () const
bool	isImmutable () const
virtual void	setImmutable ()
const FieldConstPtr &	getField () const
PVStructure *	getParent ()
const PVStructure *	getParent () const
void	postPut ()
void	setPostHandler (PostHandlerPtr const &postHandler)
virtual bool	equals (PVField &pv)
virtual std::ostream &	dumpValue (std::ostream &o) const =0
void	copy (const PVField &from)
void	copyUnchecked (const PVField &from)
Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()
virtual void	serialize (ByteBuffer *buffer, SerializableControl *flusher) const =0
virtual void	deserialize (ByteBuffer *buffer, DeserializableControl *flusher)=0

Protected Member Functions
virtual void	getAs (void *, ScalarType) const =0
	PVScalar (ScalarConstPtr const &scalar)
Protected Member Functions inherited from epics::pvData::PVField
PVField::shared_pointer	getPtrSelf ()
	PVField (FieldConstPtr field)
void	setParentAndName (PVStructure *parent, std::string const &fieldName)

Friends
template<typename E >
class	PVScalarValue

Additional Inherited Members
Static Public Attributes inherited from epics::pvData::PVField
static size_t	num_instances

Detailed Description

PVScalar is the base class for each scalar field.

Definition at line 272 of file pvData.h.

Member Typedef Documentation

typedef const PVScalar& epics::pvData::PVScalar::const_reference

Definition at line 284 of file pvData.h.

typedef PVScalar& epics::pvData::PVScalar::reference

Definition at line 283 of file pvData.h.

Constructor & Destructor Documentation

epics::pvData::PVScalar::~PVScalar ( )

virtual

Destructor

Definition at line 22 of file PVScalar.cpp.

{}

epics::pvData::PVScalar::PVScalar ( ScalarConstPtr const &  scalar )

explicitprotected

Definition at line 24 of file PVScalar.cpp.

    : PVField(scalar) {}

Member Function Documentation

virtual void epics::pvData::PVScalar::assign ( const PVScalar &  )

pure virtual

Implemented in epics::pvData::PVScalarValue< T >, and epics::pvData::PVScalarValue< std::string >.

virtual void epics::pvData::PVScalar::copy ( const PVScalar &  from )

pure virtual

Implemented in epics::pvData::PVScalarValue< T >, and epics::pvData::PVScalarValue< std::string >.

virtual void epics::pvData::PVScalar::copyUnchecked ( const PVScalar &  from )

pure virtual

Implemented in epics::pvData::PVScalarValue< T >, and epics::pvData::PVScalarValue< std::string >.

template<typename T >

T epics::pvData::PVScalar::getAs ( ) const

inline

Convert and return the scalar value in the requested type. Result type is determined from the function template argument which must be one of the ScalarType enums. Uses castUnsafe<TO>() for value conversion.

PVScalar* pv = ...;
uint32 val = pv->getAs<pvInt>();

Definition at line 302 of file pvData.h.

                           {
        T result;
        this->getAs((void*)&result, (ScalarType)ScalarTypeID<T>::value);
        return result;
    }

virtual void epics::pvData::PVScalar::getAs ( void *  , ScalarType    ) const

protectedpure virtual

Implemented in epics::pvData::PVScalarValue< T >, and epics::pvData::PVScalarValue< std::string >.

virtual void epics::pvData::PVScalar::getAs ( AnyScalar &  v ) const

pure virtual

Implemented in epics::pvData::PVScalarValue< T >, and epics::pvData::PVScalarValue< std::string >.

const ScalarConstPtr epics::pvData::PVScalar::getScalar

(

)

const

Get the Scalar introspection interface for the PVScalar.

Returns

the interface.

Definition at line 27 of file PVScalar.cpp.

    {
       return static_pointer_cast<const Scalar>(PVField::getField());
    }

epics::pvData::PVScalar::POINTER_DEFINITIONS

(

PVScalar

)

template<typename T >

void epics::pvData::PVScalar::putFrom ( T  val )

inline

Convert and assign the provided value. The value type is determined from the function template argument which must be one of the ScalarType enums. Uses castUnsafe<TO>() for value conversion.

PVScalar* pv = ...;
pv->putFrom<pvInt>((int32)42);

Definition at line 324 of file pvData.h.

                               {
        this->putFrom((const void*)&val, (ScalarType)ScalarTypeID<T>::value);
    }

virtual void epics::pvData::PVScalar::putFrom ( const void *  , ScalarType    )

pure virtual

Convert and assign.

Implemented in epics::pvData::PVScalarValue< T >, and epics::pvData::PVScalarValue< std::string >.

void epics::pvData::PVScalar::putFrom ( const AnyScalar &  v )

inline

Definition at line 331 of file pvData.h.

                                            {
        if(v)
            putFrom(v.unsafe(), v.type());
    }

Friends And Related Function Documentation

template<typename E >

friend class PVScalarValue

friend

Definition at line 276 of file pvData.h.

---

The documentation for this class was generated from the following files:

• modules/pvData/src/pv/pvData.h
• modules/pvData/src/factory/PVScalar.cpp
