epics::pvData::Scalar Class Reference

This class implements introspection object for Scalar. More...

#include "pvIntrospect.h"

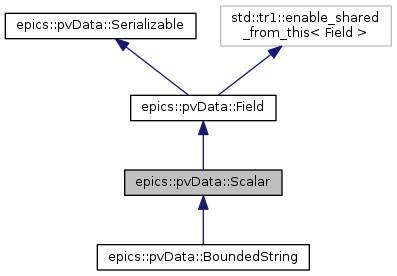

Inheritance diagram for epics::pvData::Scalar:

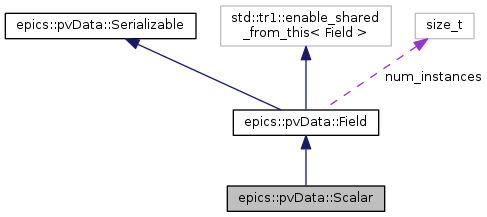

Collaboration diagram for epics::pvData::Scalar:

Public Types
typedef Scalar &	reference
typedef const Scalar &	const_reference
Public Types inherited from epics::pvData::Field
enum	{ isField =1 }

Public Member Functions
	POINTER_DEFINITIONS (Scalar)
virtual	~Scalar ()
ScalarType	getScalarType () const
virtual std::string	getID () const OVERRIDE
virtual std::ostream &	dump (std::ostream &o) const OVERRIDE FINAL
virtual void	serialize (ByteBuffer *buffer, SerializableControl *control) const OVERRIDE
virtual void	deserialize (ByteBuffer *buffer, DeserializableControl *control) OVERRIDE FINAL
std::tr1::shared_ptr< PVScalar >	build () const
Public Member Functions inherited from epics::pvData::Field
	POINTER_DEFINITIONS (Field)
virtual	~Field ()
Type	getType () const
std::tr1::shared_ptr< PVField >	build () const
Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()

Protected Member Functions
	Scalar (ScalarType scalarType)
Protected Member Functions inherited from epics::pvData::Field
	Field (Type type)
void	cacheCleanup ()

Friends
class	FieldCreate
class	ScalarArray
class	BoundedScalarArray
class	FixedScalarArray
class	BoundedString

Additional Inherited Members
Static Public Attributes inherited from epics::pvData::Field
static size_t	num_instances

Detailed Description

This class implements introspection object for Scalar.

Definition at line 397 of file pvIntrospect.h.

Member Typedef Documentation

typedef const Scalar& epics::pvData::Scalar::const_reference

Definition at line 402 of file pvIntrospect.h.

typedef Scalar& epics::pvData::Scalar::reference

Definition at line 401 of file pvIntrospect.h.

Constructor & Destructor Documentation

epics::pvData::Scalar::~Scalar ( )

virtual

Definition at line 126 of file FieldCreateFactory.cpp.

{
    cacheCleanup();
}

epics::pvData::Scalar::Scalar ( ScalarType  scalarType )

protected

Definition at line 119 of file FieldCreateFactory.cpp.

       : Field(scalar),scalarType(scalarType)
{
    if(scalarType<0 || scalarType>MAX_SCALAR_TYPE)
        THROW_EXCEPTION2(std::invalid_argument, "Can't construct Scalar from invalid ScalarType");
}

Member Function Documentation

std::tr1::shared_ptr< PVScalar > epics::pvData::Scalar::build

(

)

const

Allocate a new instance

Version

Added after 7.0.0

Definition at line 186 of file FieldCreateFactory.cpp.

{
    return getPVDataCreate()->createPVScalar(std::tr1::static_pointer_cast<const Scalar>(shared_from_this()));
}

void epics::pvData::Scalar::deserialize ( ByteBuffer *  buffer, DeserializableControl *  flusher  )

virtual

Deserialize buffer.

Parameters

buffer	serialization buffer.
flusher	deserialization control.

Implements epics::pvData::Serializable.

Definition at line 180 of file FieldCreateFactory.cpp.

                                                                {
    // must be done via FieldCreate
    throw std::runtime_error("not valid operation, use FieldCreate::deserialize instead");
}

std::ostream & epics::pvData::Scalar::dump ( std::ostream &  o ) const

virtual

Puts the string representation to the stream.

Parameters

o	output stream.

Returns

The output stream.

Implements epics::pvData::Field.

Definition at line 131 of file FieldCreateFactory.cpp.

{
    return o << format::indent() << getID();
}

string epics::pvData::Scalar::getID ( ) const

virtual

Get the identification string.

Returns

The identification string, can be empty.

Implements epics::pvData::Field.

Reimplemented in epics::pvData::BoundedString.

Definition at line 136 of file FieldCreateFactory.cpp.

{
    static const string idScalarLUT[] = {
        "boolean", // pvBoolean
        "byte",    // pvByte
        "short",   // pvShort
        "int",     // pvInt
        "long",    // pvLong
        "ubyte",   // pvUByte
        "ushort",  // pvUShort
        "uint",    // pvUInt
        "ulong",   // pvULong
        "float",   // pvFloat
        "double",  // pvDouble
        "string"   // pvString
    };
    return idScalarLUT[scalarType];
}

ScalarType epics::pvData::Scalar::getScalarType ( ) const

inline

Get the scalarType

Returns

the scalarType

Definition at line 407 of file pvIntrospect.h.

{return scalarType;}

epics::pvData::Scalar::POINTER_DEFINITIONS

(

Scalar

)

void epics::pvData::Scalar::serialize ( ByteBuffer *  buffer, SerializableControl *  flusher  ) const

virtual

Serialize field into given buffer.

Parameters

buffer	serialization buffer.
flusher	flush interface.

Implements epics::pvData::Serializable.

Reimplemented in epics::pvData::BoundedString.

Definition at line 175 of file FieldCreateFactory.cpp.

                                                                             {
    control->ensureBuffer(1);
    buffer->putByte(getTypeCodeLUT(scalarType));
}

Friends And Related Function Documentation

friend class BoundedScalarArray

friend

Definition at line 427 of file pvIntrospect.h.

friend class BoundedString

friend

Definition at line 429 of file pvIntrospect.h.

friend class FieldCreate

friend

Definition at line 425 of file pvIntrospect.h.

friend class FixedScalarArray

friend

Definition at line 428 of file pvIntrospect.h.

friend class ScalarArray

friend

Definition at line 426 of file pvIntrospect.h.

---

The documentation for this class was generated from the following files:

• modules/pvData/src/pv/pvIntrospect.h
• modules/pvData/src/factory/FieldCreateFactory.cpp
