epics::pvData::BoundedString Class Reference

This class implements introspection object for BoundedString. More...

#include "pvIntrospect.h"

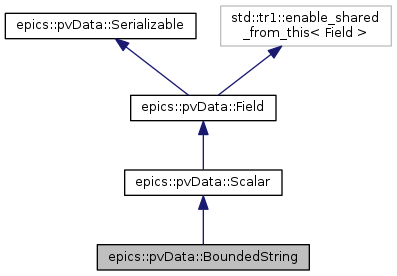

Inheritance diagram for epics::pvData::BoundedString:

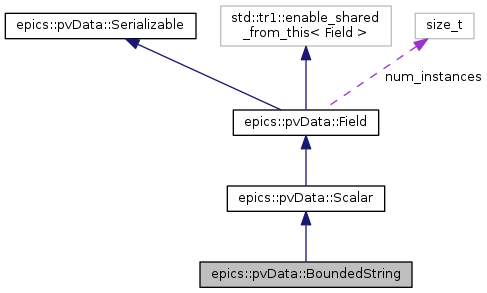

Collaboration diagram for epics::pvData::BoundedString:

Public Types
typedef BoundedString &	reference
typedef const BoundedString &	const_reference
Public Types inherited from epics::pvData::Scalar
typedef Scalar &	reference
typedef const Scalar &	const_reference
Public Types inherited from epics::pvData::Field
enum	{ isField =1 }

Public Member Functions
	POINTER_DEFINITIONS (BoundedString)
virtual	~BoundedString ()
virtual std::string	getID () const OVERRIDE FINAL
virtual void	serialize (ByteBuffer *buffer, SerializableControl *control) const OVERRIDE FINAL
std::size_t	getMaximumLength () const
Public Member Functions inherited from epics::pvData::Scalar
	POINTER_DEFINITIONS (Scalar)
virtual	~Scalar ()
ScalarType	getScalarType () const
virtual std::ostream &	dump (std::ostream &o) const OVERRIDE FINAL
virtual void	deserialize (ByteBuffer *buffer, DeserializableControl *control) OVERRIDE FINAL
std::tr1::shared_ptr< PVScalar >	build () const
Public Member Functions inherited from epics::pvData::Field
	POINTER_DEFINITIONS (Field)
virtual	~Field ()
Type	getType () const
std::tr1::shared_ptr< PVField >	build () const
Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()

Protected Member Functions
	BoundedString (std::size_t maxStringLength)
Protected Member Functions inherited from epics::pvData::Scalar
	Scalar (ScalarType scalarType)
Protected Member Functions inherited from epics::pvData::Field
	Field (Type type)
void	cacheCleanup ()

Friends
class	FieldCreate

Additional Inherited Members
Static Public Attributes inherited from epics::pvData::Field
static size_t	num_instances

Detailed Description

This class implements introspection object for BoundedString.

Definition at line 437 of file pvIntrospect.h.

Member Typedef Documentation

typedef const BoundedString& epics::pvData::BoundedString::const_reference

Definition at line 442 of file pvIntrospect.h.

typedef BoundedString& epics::pvData::BoundedString::reference

Definition at line 441 of file pvIntrospect.h.

Constructor & Destructor Documentation

epics::pvData::BoundedString::~BoundedString ( )

virtual

Definition at line 219 of file FieldCreateFactory.cpp.

{
    cacheCleanup();
}

epics::pvData::BoundedString::BoundedString ( std::size_t  maxStringLength )

protected

Definition at line 212 of file FieldCreateFactory.cpp.

                                                      :
    Scalar(pvString), maxLength(maxStringLength)
{
    if (maxLength == 0)
        THROW_EXCEPTION2(std::invalid_argument, "maxLength == 0");
}

Member Function Documentation

std::string epics::pvData::BoundedString::getID ( ) const

virtual

Get the identification string.

Returns

The identification string, can be empty.

Reimplemented from epics::pvData::Scalar.

Definition at line 193 of file FieldCreateFactory.cpp.

{
    std::ostringstream id;
    id << Scalar::getID() << '(' << maxLength << ')';
    return id.str();
}

std::size_t epics::pvData::BoundedString::getMaximumLength

(

)

const

Definition at line 207 of file FieldCreateFactory.cpp.

{
    return maxLength;
}

epics::pvData::BoundedString::POINTER_DEFINITIONS

(

BoundedString

)

void epics::pvData::BoundedString::serialize ( ByteBuffer *  buffer, SerializableControl *  flusher  ) const

virtual

Serialize field into given buffer.

Parameters

buffer	serialization buffer.
flusher	flush interface.

Reimplemented from epics::pvData::Scalar.

Definition at line 200 of file FieldCreateFactory.cpp.

{
    control->ensureBuffer(1);
    buffer->putByte(0x83);
    SerializeHelper::writeSize(maxLength, buffer, control);
}

Friends And Related Function Documentation

friend class FieldCreate

friend

Definition at line 454 of file pvIntrospect.h.

---

The documentation for this class was generated from the following files:

• modules/pvData/src/pv/pvIntrospect.h
• modules/pvData/src/factory/FieldCreateFactory.cpp
