Base class for a scalarArray. More...

#include "pvData.h"

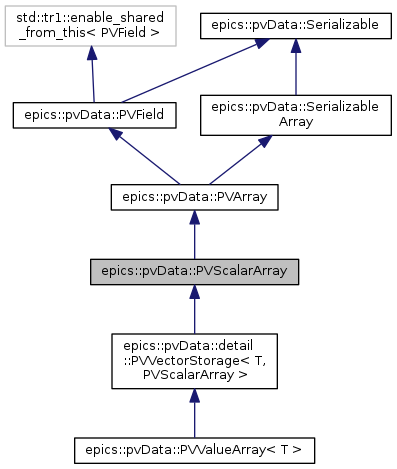

Inheritance diagram for epics::pvData::PVScalarArray:

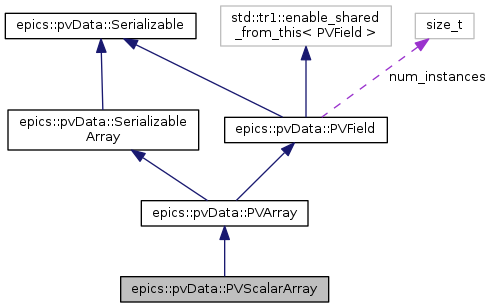

Collaboration diagram for epics::pvData::PVScalarArray:

Public Types
typedef PVScalarArray &	reference

typedef const PVScalarArray &	const_reference

Public Types inherited from epics::pvData::PVField
enum	{ isPVField =1 }

Public Member Functions
	POINTER_DEFINITIONS (PVScalarArray)

virtual	~PVScalarArray ()

const ScalarArrayConstPtr	getScalarArray () const

template<typename T >
void	getAs (shared_vector< const T > &out) const

template<typename T >
void	putFrom (const shared_vector< const T > &inp)

void	assign (const PVScalarArray &pv)

void	copy (const PVScalarArray &from)

void	copyUnchecked (const PVScalarArray &from)

Public Member Functions inherited from epics::pvData::PVArray
	POINTER_DEFINITIONS (PVArray)

virtual	~PVArray ()

virtual ArrayConstPtr	getArray () const =0

virtual void	setImmutable () OVERRIDE

virtual std::size_t	getLength () const =0

virtual void	setLength (std::size_t length)=0

virtual std::size_t	getCapacity () const =0

bool	isCapacityMutable () const

void	setCapacityMutable (bool isMutable)

virtual void	setCapacity (std::size_t capacity)=0

virtual std::ostream &	dumpValue (std::ostream &o, std::size_t index) const =0

Public Member Functions inherited from epics::pvData::PVField
	POINTER_DEFINITIONS (PVField)

virtual	~PVField ()

const std::string &	getFieldName () const

std::string	getFullName () const

std::size_t	getFieldOffset () const

std::size_t	getNextFieldOffset () const

std::size_t	getNumberFields () const

bool	isImmutable () const

const FieldConstPtr &	getField () const

PVStructure *	getParent ()

const PVStructure *	getParent () const

void	postPut ()

void	setPostHandler (PostHandlerPtr const &postHandler)

virtual bool	equals (PVField &pv)

virtual std::ostream &	dumpValue (std::ostream &o) const =0

void	copy (const PVField &from)

void	copyUnchecked (const PVField &from)

Public Member Functions inherited from epics::pvData::Serializable
virtual	~Serializable ()

virtual void	serialize (ByteBuffer buffer, SerializableControl flusher) const =0

virtual void	deserialize (ByteBuffer buffer, DeserializableControl flusher)=0

Public Member Functions inherited from epics::pvData::SerializableArray
virtual	~SerializableArray ()

virtual void	serialize (ByteBuffer buffer, SerializableControl flusher, std::size_t offset, std::size_t count) const =0

Protected Member Functions
virtual void	_getAsVoid (shared_vector< const void > &) const =0

virtual void	_putFromVoid (const shared_vector< const void > &)=0

	PVScalarArray (ScalarArrayConstPtr const &scalarArray)

Protected Member Functions inherited from epics::pvData::PVArray
	PVArray (FieldConstPtr const &field)

void	checkLength (size_t length) const

Protected Member Functions inherited from epics::pvData::PVField
PVField::shared_pointer	getPtrSelf ()

	PVField (FieldConstPtr field)

void	setParentAndName (PVStructure *parent, std::string const &fieldName)

Friends
class	PVDataCreate

Additional Inherited Members
Static Public Attributes inherited from epics::pvData::PVField
static size_t	num_instances

Detailed Description

Base class for a scalarArray.

Definition at line 618 of file pvData.h.

Member Typedef Documentation

typedef const PVScalarArray& epics::pvData::PVScalarArray::const_reference

Definition at line 626 of file pvData.h.

typedef PVScalarArray& epics::pvData::PVScalarArray::reference

Definition at line 625 of file pvData.h.

Constructor & Destructor Documentation

epics::pvData::PVScalarArray::~PVScalarArray ( )

virtual

Destructor

Definition at line 22 of file PVScalarArray.cpp.

22 {}

epics::pvData::PVScalarArray::PVScalarArray ( ScalarArrayConstPtr const & scalarArray )

explicitprotected

Definition at line 24 of file PVScalarArray.cpp.

25 : PVArray(scalarArray) {}

epics::pvData::PVArray::PVArray

PVArray(FieldConstPtr const &field)

Definition: PVArray.cpp:23

epics::pvData::scalarArray

Definition: pvIntrospect.h:191

Member Function Documentation

virtual void epics::pvData::PVScalarArray::_getAsVoid ( shared_vector< const void > & ) const

protectedpure virtual

Implemented in epics::pvData::PVValueArray< T >.

virtual void epics::pvData::PVScalarArray::_putFromVoid ( const shared_vector< const void > & )

protectedpure virtual

Implemented in epics::pvData::PVValueArray< T >.

void epics::pvData::PVScalarArray::assign ( const PVScalarArray & pv )

inline

Assign the given PVScalarArray's value.

A copy and element-wise conversion is performed unless the element type of the PVScalarArray matches the type of the provided data. If the types do match then a new reference to the provided data is kept.

Definition at line 681 of file pvData.h.

                                          {
         if (isImmutable())
             throw std::invalid_argument("destination is immutable");
         copyUnchecked(pv);
     }

void epics::pvData::PVScalarArray::copy ( const PVScalarArray & from )

inline

Definition at line 687 of file pvData.h.

                                          {
         assign(from);
     }

void epics::pvData::PVScalarArray::copyUnchecked ( const PVScalarArray & from )

inline

Definition at line 691 of file pvData.h.

                                                   {
         if (this==&from)
             return;
         shared_vector<const void> temp;
         from._getAsVoid(temp);
         _putFromVoid(temp);
     }

template<typename T >

void epics::pvData::PVScalarArray::getAs ( shared_vector< const T > & out ) const

inline

Fetch the current value and convert to the requested type.

A copy is made if the requested type does not match the element type. If the types do match then no copy is made.

Definition at line 647 of file pvData.h.

     {
         shared_vector<const void> temp;
         _getAsVoid(temp);
         out = shared_vector_convert<const T>(temp);
     }

const ScalarArrayConstPtr epics::pvData::PVScalarArray::getScalarArray ( ) const

Get the introspection interface

Returns: The interface.

Definition at line 27 of file PVScalarArray.cpp.

     {
        return static_pointer_cast<const ScalarArray>(PVField::getField());
     }

epics::pvData::PVScalarArray::POINTER_DEFINITIONS ( PVScalarArray )

template<typename T >

void epics::pvData::PVScalarArray::putFrom ( const shared_vector< const T > & inp )

inline

Assign the given value after conversion.

A copy and element-wise conversion is performed unless the element type of the PVScalarArray matches the type of the provided data. If the types do match then a new reference to the provided data is kept.

Calls postPut()

Definition at line 666 of file pvData.h.

     {
         shared_vector<const void> temp(static_shared_vector_cast<const void>(inp));
         _putFromVoid(temp);
     }

Friends And Related Function Documentation

friend class PVDataCreate

friend

Definition at line 702 of file pvData.h.

The documentation for this class was generated from the following files:

modules/pvData/src/pv/pvData.h
modules/pvData/src/factory/PVScalarArray.cpp
