#include "pdbgroup.h"

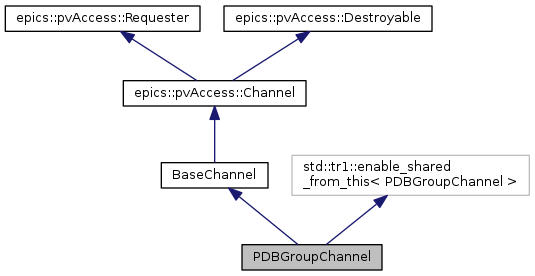

Inheritance diagram for PDBGroupChannel:

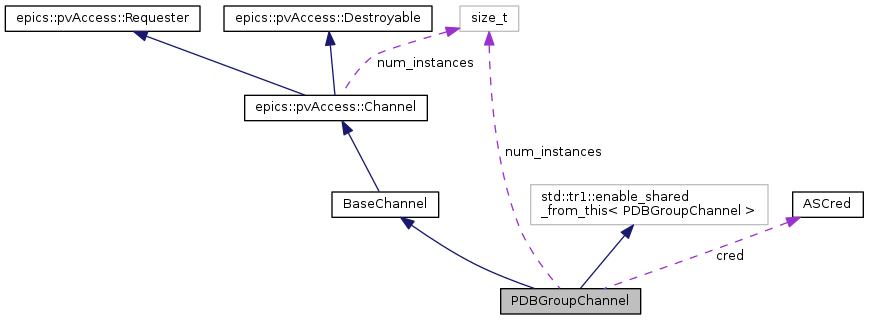

Collaboration diagram for PDBGroupChannel:

Public Member Functions
	POINTER_DEFINITIONS (PDBGroupChannel)

	PDBGroupChannel (const PDBGroupPV::shared_pointer &pv, const std::tr1::shared_ptr< epics::pvAccess::ChannelProvider > &prov, const epics::pvAccess::ChannelRequester::shared_pointer &req)

virtual	~PDBGroupChannel ()

virtual epics::pvAccess::ChannelPut::shared_pointer	createChannelPut (epics::pvAccess::ChannelPutRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest) OVERRIDE FINAL

virtual epics::pvData::Monitor::shared_pointer	createMonitor (epics::pvData::MonitorRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest) OVERRIDE FINAL

virtual void	printInfo (std::ostream &out) OVERRIDE FINAL

Public Member Functions inherited from BaseChannel
	BaseChannel (const std::string &name, const std::tr1::weak_ptr< epics::pvAccess::ChannelProvider > &prov, const epics::pvAccess::ChannelRequester::shared_pointer &req, const epics::pvData::StructureConstPtr &dtype)

virtual	~BaseChannel ()

virtual std::string	getRequesterName () OVERRIDE

virtual void	destroy () OVERRIDE FINAL

virtual std::tr1::shared_ptr< epics::pvAccess::ChannelProvider >	getProvider () OVERRIDE FINAL

virtual std::string	getRemoteAddress () OVERRIDE

virtual std::string	getChannelName () OVERRIDE FINAL

virtual std::tr1::shared_ptr< epics::pvAccess::ChannelRequester >	getChannelRequester () OVERRIDE FINAL

virtual void	getField (epics::pvAccess::GetFieldRequester::shared_pointer const &requester, std::string const &subField) OVERRIDE

Public Member Functions inherited from epics::pvAccess::Channel
	POINTER_DEFINITIONS (Channel)

	Channel ()

virtual	~Channel ()

virtual void	message (std::string const &message, epics::pvData::MessageType messageType)

virtual ConnectionState	getConnectionState ()

virtual bool	isConnected ()

virtual void	getField (GetFieldRequester::shared_pointer const &requester, std::string const &subField)

virtual AccessRights	getAccessRights (epics::pvData::PVField::shared_pointer const &pvField)

virtual ChannelProcess::shared_pointer	createChannelProcess (ChannelProcessRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelGet::shared_pointer	createChannelGet (ChannelGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelPut::shared_pointer	createChannelPut (ChannelPutRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelPutGet::shared_pointer	createChannelPutGet (ChannelPutGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelRPC::shared_pointer	createChannelRPC (ChannelRPCRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual Monitor::shared_pointer	createMonitor (MonitorRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelArray::shared_pointer	createChannelArray (ChannelArrayRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual void	printInfo ()

Public Member Functions inherited from epics::pvAccess::Requester
	POINTER_DEFINITIONS (Requester)

virtual	~Requester ()

virtual void	message (std::string const &message, MessageType messageType=errorMessage)

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Attributes
PDBGroupPV::shared_pointer	pv

std::vector< ASCLIENT >	aspvt

ASCred	cred

Public Attributes inherited from BaseChannel
epicsMutex	lock

const std::string	pvname

const epics::pvAccess::ChannelProvider::weak_pointer	provider

const requester_type::weak_pointer	requester

const epics::pvData::StructureConstPtr	fielddesc

Static Public Attributes
static size_t	num_instances

Static Public Attributes inherited from epics::pvAccess::Channel
static size_t	num_instances

static const char *	ConnectionStateNames [] = { "NEVER_CONNECTED", "CONNECTED", "DISCONNECTED", "DESTROYED" }

Additional Inherited Members
Public Types inherited from BaseChannel
typedef epicsGuard< epicsMutex >	guard_t

Public Types inherited from epics::pvAccess::Channel
enum	ConnectionState { NEVER_CONNECTED, CONNECTED, DISCONNECTED, DESTROYED }

typedef ChannelRequester	requester_type

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 136 of file pdbgroup.h.

Constructor & Destructor Documentation

PDBGroupChannel::PDBGroupChannel	(	const PDBGroupPV::shared_pointer &	pv,
		const std::tr1::shared_ptr< epics::pvAccess::ChannelProvider > &	prov,
		const epics::pvAccess::ChannelRequester::shared_pointer &	req
	)

Definition at line 250 of file pdbgroup.cpp.

     :BaseChannel(pv->name, prov, req, pv->fielddesc)
     ,pv(pv)
 {
     epics::atomic::increment(num_instances);
 }

PDBGroupChannel::~PDBGroupChannel ( )

virtual

Definition at line 259 of file pdbgroup.cpp.

 {
     epics::atomic::decrement(num_instances);
 }

Member Function Documentation

pva::ChannelPut::shared_pointer PDBGroupChannel::createChannelPut	(	epics::pvAccess::ChannelPutRequester::shared_pointer const &	requester,
		epics::pvData::PVStructure::shared_pointer const &	pvRequest
	)

virtual

Definition at line 270 of file pdbgroup.cpp.

 {
     PDBGroupPut::shared_pointer ret(new PDBGroupPut(shared_from_this(), requester, pvRequest));
     requester->channelPutConnect(pvd::Status(), ret, fielddesc);
     return ret;
 }

pva::Monitor::shared_pointer PDBGroupChannel::createMonitor	(	epics::pvData::MonitorRequester::shared_pointer const &	requester,
		epics::pvData::PVStructure::shared_pointer const &	pvRequest
	)

virtual

Definition at line 280 of file pdbgroup.cpp.

 {
     PDBGroupMonitor::shared_pointer ret(new PDBGroupMonitor(pv->shared_from_this(), requester, pvRequest));
     ret->weakself = ret;
     assert(!!pv->complete);
     guard_t G(pv->lock);
     ret->connect(G, pv->complete);
     return ret;
 }

PDBGroupChannel::POINTER_DEFINITIONS ( PDBGroupChannel )

void PDBGroupChannel::printInfo ( std::ostream & out )

virtual

Prints detailed information about the context to the specified output stream.

Parameters

out	the output stream.

Reimplemented from BaseChannel.

Definition at line 264 of file pdbgroup.cpp.

 {
     out<<"PDBGroupChannel";
 }

Member Data Documentation

std::vector<ASCLIENT> PDBGroupChannel::aspvt

Definition at line 142 of file pdbgroup.h.

ASCred PDBGroupChannel::cred

Definition at line 144 of file pdbgroup.h.

size_t PDBGroupChannel::num_instances

static

Definition at line 146 of file pdbgroup.h.

PDBGroupPV::shared_pointer PDBGroupChannel::pv

Definition at line 141 of file pdbgroup.h.

The documentation for this struct was generated from the following files:

modules/pva2pva/pdbApp/pdbgroup.h
modules/pva2pva/pdbApp/pdbgroup.cpp
