#include "pvAccess.h"

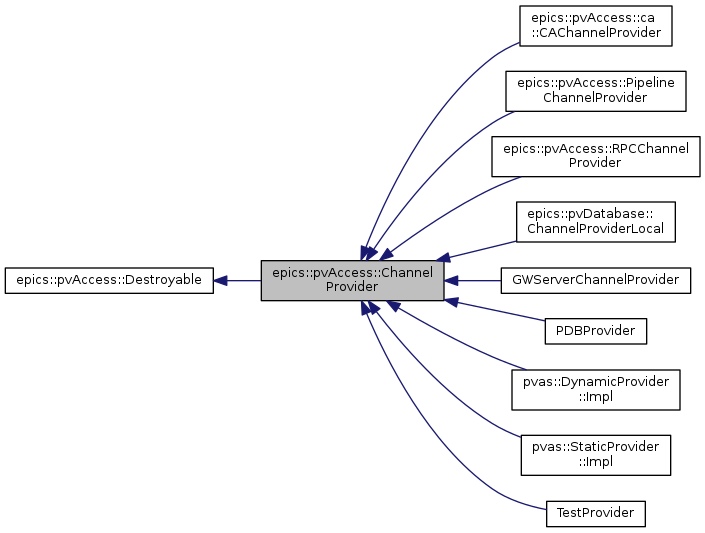

Inheritance diagram for epics::pvAccess::ChannelProvider:

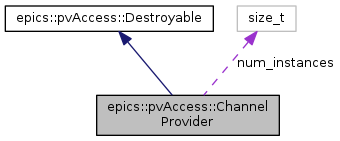

Collaboration diagram for epics::pvAccess::ChannelProvider:

Public Member Functions
	POINTER_DEFINITIONS (ChannelProvider)

	ChannelProvider ()

virtual	~ChannelProvider ()

virtual std::string	getProviderName ()=0

virtual ChannelFind::shared_pointer	channelFind (std::string const &name, ChannelFindRequester::shared_pointer const &requester)=0

virtual ChannelFind::shared_pointer	channelList (ChannelListRequester::shared_pointer const &requester)

virtual Channel::shared_pointer	createChannel (std::string const &name, ChannelRequester::shared_pointer const &requester=DefaultChannelRequester::build(), short priority=PRIORITY_DEFAULT)

virtual Channel::shared_pointer	createChannel (std::string const &name, ChannelRequester::shared_pointer const &requester, short priority, std::string const &address)=0

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

virtual void	destroy ()=0

Static Public Attributes
static const short	PRIORITY_MIN = 0

static const short	PRIORITY_MAX = 99

static const short	PRIORITY_DEFAULT = PRIORITY_MIN

static const short	PRIORITY_LINKS_DB = PRIORITY_MAX

static const short	PRIORITY_ARCHIVE = (PRIORITY_MAX + PRIORITY_MIN) / 2

static const short	PRIORITY_OPI = PRIORITY_MIN

static size_t	num_instances

Additional Inherited Members
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

An instance of a Client or Server.

Uniquely configurable (via ChannelProviderFactory::newInstance(Configuration*)

Definition at line 1230 of file pvAccess.h.

Constructor & Destructor Documentation

epics::pvAccess::ChannelProvider::ChannelProvider ( )

Definition at line 377 of file pvAccess.cpp.

 {
     REFTRACE_INCREMENT(num_instances);
 }

epics::pvAccess::ChannelProvider::~ChannelProvider ( )

virtual

Definition at line 382 of file pvAccess.cpp.

 {
     REFTRACE_DECREMENT(num_instances);
 }

Member Function Documentation

virtual ChannelFind::shared_pointer epics::pvAccess::ChannelProvider::channelFind	(	std::string const &	name,
		ChannelFindRequester::shared_pointer const &	requester
	)

pure virtual

Test to see if this provider has the named channel.

May call ChannelFindRequester::channelFindResult() before returning, or at some time later. If an exception is thrown, then channelFindResult() will never be called.

Parameters

name	The channel name.
requester	The Requester.

Returns: An unique()==true handle for the pending response. May only return NULL if channelFindResult() called with an Error

Implemented in epics::pvAccess::PipelineChannelProvider, epics::pvAccess::RPCChannelProvider, and epics::pvAccess::ca::CAChannelProvider.

ChannelFind::shared_pointer epics::pvAccess::ChannelProvider::channelList ( ChannelListRequester::shared_pointer const & requester )

virtual

Request a list of all valid channel names for this provider.

May call ChannelListRequester::channelListResult() before returning, or at some time later. If an exception is thrown, then channelListResult() will never be called.

Parameters

requester The Requester.

Returns: An unique()==true handle for the pending response. May only return NULL if channelFindResult() called with an Error

Reimplemented in epics::pvAccess::PipelineChannelProvider, epics::pvAccess::RPCChannelProvider, and epics::pvAccess::ca::CAChannelProvider.

Definition at line 250 of file ChannelAccessFactory.cpp.

 {
     ChannelFind::shared_pointer ret;
     requester->channelListResult(Status::error("not implemented"),
                                  ret,
                                  epics::pvData::PVStringArray::const_svector(),
                                  false);
     return ret;
 }

Channel::shared_pointer epics::pvAccess::ChannelProvider::createChannel	(	std::string const &	name,
		ChannelRequester::shared_pointer const &	requester = `DefaultChannelRequester::build()`,
		short	priority = `PRIORITY_DEFAULT`
	)

virtual

See longer form

Reimplemented in epics::pvAccess::PipelineChannelProvider, epics::pvAccess::RPCChannelProvider, and epics::pvAccess::ca::CAChannelProvider.

Definition at line 261 of file ChannelAccessFactory.cpp.

 {
     return createChannel(name, requester, priority, "");
 }

virtual Channel::shared_pointer epics::pvAccess::ChannelProvider::createChannel	(	std::string const &	name,
		ChannelRequester::shared_pointer const &	requester,
		short	priority,
		std::string const &	address
	)

pure virtual

Request a Channel.

Channel creation is immediate. ChannelRequester::channelCreated() will be called before returning. The shared_ptr which is passed to channelCreated() will also be returned.

Failures during channel creation are delivered to ChannelRequester::channelCreated() with Status::isSuccess()==false.

Postcondition: The returned Channel will hold a strong reference to the provided ChannelRequester and to the ChannelProvider through which it is created.; The shared_ptr passed to ChannelRequester::channelCreated() is unique. See providers_ownership_unique; The new Channel will not hold a strong reference to this ChannelProvider. This provider must be kept alive in order to keep the Channel from being destoryed.

Parameters

name	The name of the channel.
requester	Will receive notifications about channel state changes
priority	channel priority, must be `PRIORITY_MIN` <= priority <= `PRIORITY_MAX`.
address	Implementation dependent condition. eg. A network address to bypass the search phase. Pass an empty() string for default behavour.

Returns: A non-NULL Channel unless channelCreated() called with an Error

Implemented in epics::pvAccess::PipelineChannelProvider, epics::pvAccess::RPCChannelProvider, and epics::pvAccess::ca::CAChannelProvider.

virtual std::string epics::pvAccess::ChannelProvider::getProviderName ( )

pure virtual

Get the provider name.

Returns: The name.

Implemented in epics::pvAccess::PipelineChannelProvider, TestProvider, epics::pvAccess::RPCChannelProvider, pvas::DynamicProvider::Impl, epics::pvDatabase::ChannelProviderLocal, epics::pvAccess::ca::CAChannelProvider, pvas::StaticProvider::Impl, PDBProvider, and GWServerChannelProvider.

epics::pvAccess::ChannelProvider::POINTER_DEFINITIONS ( ChannelProvider )

Member Data Documentation

size_t epics::pvAccess::ChannelProvider::num_instances

static

Definition at line 1249 of file pvAccess.h.

const short epics::pvAccess::ChannelProvider::PRIORITY_ARCHIVE = (PRIORITY_MAX + PRIORITY_MIN) / 2

static

Archive priority.

Definition at line 1245 of file pvAccess.h.

const short epics::pvAccess::ChannelProvider::PRIORITY_DEFAULT = PRIORITY_MIN

static

Default priority.

Definition at line 1241 of file pvAccess.h.

const short epics::pvAccess::ChannelProvider::PRIORITY_LINKS_DB = PRIORITY_MAX

static

DB links priority.

Definition at line 1243 of file pvAccess.h.

const short epics::pvAccess::ChannelProvider::PRIORITY_MAX = 99

static

Maximal priority.

Definition at line 1239 of file pvAccess.h.

const short epics::pvAccess::ChannelProvider::PRIORITY_MIN = 0

static

Minimal priority.

Definition at line 1237 of file pvAccess.h.

const short epics::pvAccess::ChannelProvider::PRIORITY_OPI = PRIORITY_MIN

static

OPI priority.

Definition at line 1247 of file pvAccess.h.

The documentation for this class was generated from the following files:

modules/pvAccess/src/client/pv/pvAccess.h
modules/pvAccess/src/client/pvAccess.cpp
modules/pvAccess/src/factory/ChannelAccessFactory.cpp
