Inheritance diagram for pvas::StaticProvider::Impl:

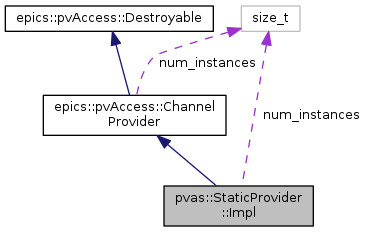

Collaboration diagram for pvas::StaticProvider::Impl:

Public Types
typedef StaticProvider::builders_t	builders_t

Public Member Functions
	POINTER_DEFINITIONS (Impl)

	Impl (const std::string &name)

virtual	~Impl ()

virtual void	destroy () OVERRIDE FINAL

virtual std::string	getProviderName () OVERRIDE FINAL

virtual pva::ChannelFind::shared_pointer	channelFind (std::string const &name, pva::ChannelFindRequester::shared_pointer const &requester) OVERRIDE FINAL

virtual pva::ChannelFind::shared_pointer	channelList (pva::ChannelListRequester::shared_pointer const &requester) OVERRIDE FINAL

virtual pva::Channel::shared_pointer	createChannel (std::string const &name, pva::ChannelRequester::shared_pointer const &requester, short priority, std::string const &address) OVERRIDE FINAL

Public Member Functions inherited from epics::pvAccess::ChannelProvider
	POINTER_DEFINITIONS (ChannelProvider)

	ChannelProvider ()

virtual	~ChannelProvider ()

virtual ChannelFind::shared_pointer	channelFind (std::string const &name, ChannelFindRequester::shared_pointer const &requester)=0

virtual ChannelFind::shared_pointer	channelList (ChannelListRequester::shared_pointer const &requester)

virtual Channel::shared_pointer	createChannel (std::string const &name, ChannelRequester::shared_pointer const &requester=DefaultChannelRequester::build(), short priority=PRIORITY_DEFAULT)

virtual Channel::shared_pointer	createChannel (std::string const &name, ChannelRequester::shared_pointer const &requester, short priority, std::string const &address)=0

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Attributes
const std::string	name

pva::ChannelFind::shared_pointer	finder

std::tr1::weak_ptr< Impl >	internal_self

std::tr1::weak_ptr< Impl >	external_self

epicsMutex	mutex

builders_t	builders

Static Public Attributes
static size_t	num_instances

Static Public Attributes inherited from epics::pvAccess::ChannelProvider
static const short	PRIORITY_MIN = 0

static const short	PRIORITY_MAX = 99

static const short	PRIORITY_DEFAULT = PRIORITY_MIN

static const short	PRIORITY_LINKS_DB = PRIORITY_MAX

static const short	PRIORITY_ARCHIVE = (PRIORITY_MAX + PRIORITY_MIN) / 2

static const short	PRIORITY_OPI = PRIORITY_MIN

static size_t	num_instances

Additional Inherited Members
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 31 of file server.cpp.

Member Typedef Documentation

typedef StaticProvider::builders_t pvas::StaticProvider::Impl::builders_t

Definition at line 43 of file server.cpp.

Constructor & Destructor Documentation

pvas::StaticProvider::Impl::Impl ( const std::string & name )

inline

Definition at line 46 of file server.cpp.

         :name(name)
     {
         REFTRACE_INCREMENT(num_instances);
     }

virtual pvas::StaticProvider::Impl::~Impl ( )

inlinevirtual

Definition at line 51 of file server.cpp.

                     {
         REFTRACE_DECREMENT(num_instances);
     }

Member Function Documentation

virtual pva::ChannelFind::shared_pointer pvas::StaticProvider::Impl::channelFind	(	std::string const &	name,
		pva::ChannelFindRequester::shared_pointer const &	requester
	)

inlinevirtual

Definition at line 58 of file server.cpp.

     {
         bool found;

         {
             Guard G(mutex);

             found =  builders.find(name)!=builders.end();
         }
         requester->channelFindResult(pvd::Status(), finder, found);
         return finder;
     }

virtual pva::ChannelFind::shared_pointer pvas::StaticProvider::Impl::channelList ( pva::ChannelListRequester::shared_pointer const & requester )

inlinevirtual

Definition at line 71 of file server.cpp.

     {
         epics::pvData::PVStringArray::svector names;
         {
             Guard G(mutex);
             names.reserve(builders.size());
             for(builders_t::const_iterator it(builders.begin()), end(builders.end()); it!=end; ++it) {
                 names.push_back(it->first);
             }
         }
         requester->channelListResult(pvd::Status(), finder, pvd::freeze(names), false);
         return finder;
     }

virtual pva::Channel::shared_pointer pvas::StaticProvider::Impl::createChannel	(	std::string const &	name,
		pva::ChannelRequester::shared_pointer const &	requester,
		short	priority,
		std::string const &	address
	)

inlinevirtual

Definition at line 84 of file server.cpp.

     {
         pva::Channel::shared_pointer ret;
         pvd::Status sts;

         builders_t::mapped_type builder;
         {
             Guard G(mutex);
             builders_t::const_iterator it(builders.find(name));
             if(it!=builders.end()) {
                 UnGuard U(G);
                 builder = it->second;
             }
         }
         if(builder)
             ret = builder->connect(Impl::shared_pointer(internal_self), name, requester);

         if(!ret) {
             sts = pvd::Status::error("No such channel");
         }

         requester->channelCreated(sts, ret);
         return ret;
     }

virtual void pvas::StaticProvider::Impl::destroy ( )

inlinevirtual

Destroy this instance.

Implements epics::pvAccess::Destroyable.

Definition at line 55 of file server.cpp.

55 {}

virtual std::string pvas::StaticProvider::Impl::getProviderName ( )

inlinevirtual

Get the provider name.

Returns: The name.

Implements epics::pvAccess::ChannelProvider.

Definition at line 57 of file server.cpp.

57 { return name; }

pvas::StaticProvider::Impl::name

const std::string name

Definition: server.cpp:37

pvas::StaticProvider::Impl::POINTER_DEFINITIONS ( Impl )

Member Data Documentation

builders_t pvas::StaticProvider::Impl::builders

Definition at line 44 of file server.cpp.

std::tr1::weak_ptr<Impl> pvas::StaticProvider::Impl::external_self

Definition at line 39 of file server.cpp.

pva::ChannelFind::shared_pointer pvas::StaticProvider::Impl::finder

Definition at line 38 of file server.cpp.

std::tr1::weak_ptr<Impl> pvas::StaticProvider::Impl::internal_self

Definition at line 39 of file server.cpp.

epicsMutex pvas::StaticProvider::Impl::mutex

mutable

Definition at line 41 of file server.cpp.

const std::string pvas::StaticProvider::Impl::name

Definition at line 37 of file server.cpp.

size_t pvas::StaticProvider::Impl::num_instances

static

Definition at line 35 of file server.cpp.

The documentation for this struct was generated from the following file:

modules/pvAccess/src/server/server.cpp
