epics::pvAccess::DefaultChannelRequester Struct Reference

Used when ChannelProvider::createChannel() is passed a NULL ChannelRequester. More...

#include "pvAccess.h"

Inheritance diagram for epics::pvAccess::DefaultChannelRequester:

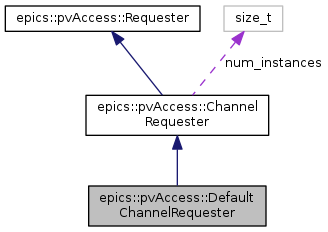

Collaboration diagram for epics::pvAccess::DefaultChannelRequester:

Public Member Functions
virtual	~DefaultChannelRequester ()
virtual std::string	getRequesterName () OVERRIDE FINAL
virtual void	channelCreated (const epics::pvData::Status &status, Channel::shared_pointer const &channel) OVERRIDE FINAL
virtual void	channelStateChange (Channel::shared_pointer const &channel, Channel::ConnectionState connectionState) OVERRIDE FINAL
Public Member Functions inherited from epics::pvAccess::ChannelRequester
	POINTER_DEFINITIONS (ChannelRequester)
	ChannelRequester ()
virtual	~ChannelRequester ()
virtual std::tr1::shared_ptr< const PeerInfo >	getPeerInfo ()
	Return information on connected peer if applicable. More...
Public Member Functions inherited from epics::pvAccess::Requester
	POINTER_DEFINITIONS (Requester)
virtual	~Requester ()
virtual void	message (std::string const &message, MessageType messageType=errorMessage)

Static Public Member Functions
static ChannelRequester::shared_pointer	build ()

Additional Inherited Members
Public Types inherited from epics::pvAccess::ChannelRequester
typedef Channel	operation_type
Static Public Attributes inherited from epics::pvAccess::ChannelRequester
static size_t	num_instances

Detailed Description

Used when ChannelProvider::createChannel() is passed a NULL ChannelRequester.

Definition at line 1209 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::DefaultChannelRequester::~DefaultChannelRequester ( )

inlinevirtual

Definition at line 1211 of file pvAccess.h.

{}

Member Function Documentation

ChannelRequester::shared_pointer epics::pvAccess::DefaultChannelRequester::build ( )

static

Definition at line 444 of file pvAccess.cpp.

{
    ChannelRequester::shared_pointer ret(new DefaultChannelRequester);
    return ret;
}

void epics::pvAccess::DefaultChannelRequester::channelCreated ( const epics::pvData::Status &  status, Channel::shared_pointer const &  channel  )

virtual

The request made with ChannelProvider::createChannel() is satisfied.

Will be called at most once for each call to createChannel().

The Channel passed here must be the same as was returned by createChannel(), if it has returned. Note that this method may be called before createChanel() returns.

Status::isOk() indicates that the Channel is valid. Calls to Channel methods can be made from this method, and later until Channel::destroy() is called.

!Status::isOk() indicates that the Channel is not available. No calls to the Channel are permitted. channelStateChange() will never be called.

Caller must hold no locks.

Parameters

status	Completion status.
channel	The channel.

Implements epics::pvAccess::ChannelRequester.

Definition at line 432 of file pvAccess.cpp.

{
    if(!status.isSuccess()) {
        std::ostringstream strm;
        status.dump(strm);
        throw std::runtime_error(strm.str());
    }
}

void epics::pvAccess::DefaultChannelRequester::channelStateChange ( Channel::shared_pointer const &  channel, Channel::ConnectionState  connectionState  )

virtual

Called occasionally after channelCreated() with Status::isOk() to give notification of connection state changes.

Caller must hold no locks.

Parameters

c	The channel.
connectionState	The new connection state.

Implements epics::pvAccess::ChannelRequester.

Definition at line 441 of file pvAccess.cpp.

{ /* no-op */ }

std::string epics::pvAccess::DefaultChannelRequester::getRequesterName ( )

virtual

The requester must have a name.

Returns

The requester's name.

Implements epics::pvAccess::Requester.

Definition at line 430 of file pvAccess.cpp.

{ return "DefaultChannelRequester"; }

---

The documentation for this struct was generated from the following files:

• modules/pvAccess/src/client/pv/pvAccess.h
• modules/pvAccess/src/client/pvAccess.cpp
