epics::pvDatabase::ChannelProviderLocal Class Reference

ChannelProvider for PVDatabase. More...

#include "channelProviderLocal.h"

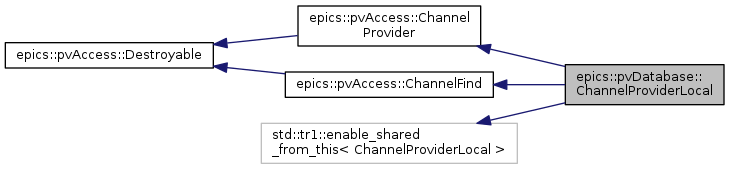

Inheritance diagram for epics::pvDatabase::ChannelProviderLocal:

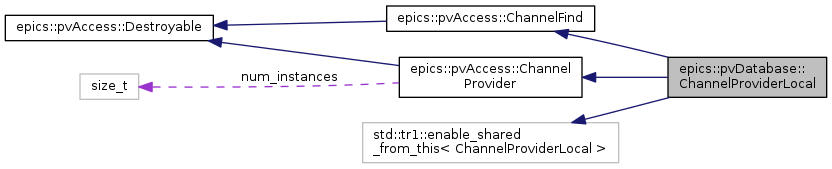

Collaboration diagram for epics::pvDatabase::ChannelProviderLocal:

Public Member Functions
	POINTER_DEFINITIONS (ChannelProviderLocal)
	ChannelProviderLocal ()
	Constructor. More...
virtual	~ChannelProviderLocal ()
	Destructor. More...
virtual void	destroy ()
	DEPRECATED. More...
virtual std::string	getProviderName ()
	Returns the channel provider name. More...
virtual epics::pvAccess::ChannelFind::shared_pointer	channelFind (std::string const &channelName, epics::pvAccess::ChannelFindRequester::shared_pointer const &channelFindRequester)
	Returns either a null channelFind or a channelFind for records in the PVDatabase. More...
virtual epics::pvAccess::ChannelFind::shared_pointer	channelList (epics::pvAccess::ChannelListRequester::shared_pointer const &channelListRequester)
	Calls method channelListRequester::channelListResult. More...
virtual epics::pvAccess::Channel::shared_pointer	createChannel (std::string const &channelName, epics::pvAccess::ChannelRequester::shared_pointer const &channelRequester, short priority)
	Create a channel for a record. More...
virtual epics::pvAccess::Channel::shared_pointer	createChannel (std::string const &channelName, epics::pvAccess::ChannelRequester::shared_pointer const &channelRequester, short priority, std::string const &address)
	Create a channel for a record. More...
int	getTraceLevel ()
	get trace level (0,1,2) means (nothing,lifetime,process) More...
void	setTraceLevel (int level)
	set trace level (0,1,2) means (nothing,lifetime,process) More...
virtual std::tr1::shared_ptr< ChannelProvider >	getChannelProvider ()
	ChannelFind method. More...
virtual void	cancel ()
	ChannelFind method. More...
Public Member Functions inherited from epics::pvAccess::ChannelProvider
	POINTER_DEFINITIONS (ChannelProvider)
	ChannelProvider ()
virtual	~ChannelProvider ()
virtual ChannelFind::shared_pointer	channelFind (std::string const &name, ChannelFindRequester::shared_pointer const &requester)=0
virtual ChannelFind::shared_pointer	channelList (ChannelListRequester::shared_pointer const &requester)
virtual Channel::shared_pointer	createChannel (std::string const &name, ChannelRequester::shared_pointer const &requester=DefaultChannelRequester::build(), short priority=PRIORITY_DEFAULT)
virtual Channel::shared_pointer	createChannel (std::string const &name, ChannelRequester::shared_pointer const &requester, short priority, std::string const &address)=0
Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)
Public Member Functions inherited from epics::pvAccess::ChannelFind
	POINTER_DEFINITIONS (ChannelFind)
	ChannelFind ()
virtual	~ChannelFind ()

Friends
class	ChannelProviderLocalRun
epicsShareFunc ChannelProviderLocalPtr	getChannelProviderLocal ()

Additional Inherited Members
Public Types inherited from epics::pvAccess::ChannelFind
typedef ChannelFindRequester	requester_type
Static Public Member Functions inherited from epics::pvAccess::ChannelFind
static ChannelFind::shared_pointer	buildDummy (const std::tr1::shared_ptr< ChannelProvider > &provider)
Static Public Attributes inherited from epics::pvAccess::ChannelProvider
static const short	PRIORITY_MIN = 0
static const short	PRIORITY_MAX = 99
static const short	PRIORITY_DEFAULT = PRIORITY_MIN
static const short	PRIORITY_LINKS_DB = PRIORITY_MAX
static const short	PRIORITY_ARCHIVE = (PRIORITY_MAX + PRIORITY_MIN) / 2
static const short	PRIORITY_OPI = PRIORITY_MIN
static size_t	num_instances
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

ChannelProvider for PVDatabase.

An implementation of channelProvider that provides access to records in PVDatabase.

Definition at line 54 of file channelProviderLocal.h.

Constructor & Destructor Documentation

epics::pvDatabase::ChannelProviderLocal::ChannelProviderLocal

(

)

Constructor.

Definition at line 70 of file channelProviderLocal.cpp.

: pvDatabase(PVDatabase::getMaster()),
  traceLevel(0)
{
    if(traceLevel>0) {
        cout << "ChannelProviderLocal::ChannelProviderLocal()\n";
    }
}

epics::pvDatabase::ChannelProviderLocal::~ChannelProviderLocal ( )

virtual

Destructor.

Definition at line 79 of file channelProviderLocal.cpp.

{
    if(traceLevel>0) {
        cout << "ChannelProviderLocal::~ChannelProviderLocal()\n";
    }
}

Member Function Documentation

virtual void epics::pvDatabase::ChannelProviderLocal::cancel ( )

inlinevirtual

ChannelFind method.

Implements epics::pvAccess::ChannelFind.

Definition at line 158 of file channelProviderLocal.h.

{}

ChannelFind::shared_pointer epics::pvDatabase::ChannelProviderLocal::channelFind ( std::string const &  channelName, epics::pvAccess::ChannelFindRequester::shared_pointer const &  channelFindRequester  )

virtual

Returns either a null channelFind or a channelFind for records in the PVDatabase.

Parameters

channelName	The name of the channel desired.
channelFindRequester	The client callback.

Returns

shared pointer to ChannelFind. This is null if the channelName is not the name of a record in the PVDatabase. It is an implementation of SyncChannelFind if the channelName is the name of a record in the PVDatabase. The interface for SyncChannelFind is defined by pvAccessCPP. The channelFindResult method of channelFindRequester is called before the method returns.

Definition at line 96 of file channelProviderLocal.cpp.

{
    if(traceLevel>1) {
        cout << "ChannelProviderLocal::channelFind " << "channelName" << endl;
    }
    PVDatabasePtr pvdb(pvDatabase.lock());
    if(!pvdb) {
        Status notFoundStatus(Status::STATUSTYPE_ERROR,"pvDatabase was deleted");
        channelFindRequester->channelFindResult(
            notFoundStatus,
            shared_from_this(),
            false);
    }
    PVRecordPtr pvRecord = pvdb->findRecord(channelName);
    if(pvRecord) {
        channelFindRequester->channelFindResult(
            Status::Ok,
            shared_from_this(),
            true);

    } else {
        Status notFoundStatus(Status::STATUSTYPE_ERROR,"pv not found");
        channelFindRequester->channelFindResult(
            notFoundStatus,
            shared_from_this(),
            false);
    }
    return shared_from_this();
}

ChannelFind::shared_pointer epics::pvDatabase::ChannelProviderLocal::channelList ( epics::pvAccess::ChannelListRequester::shared_pointer const &  channelListRequester )

virtual

Calls method channelListRequester::channelListResult.

This provides the caller with a list of the record names on the PVDatabase. A record name is the same as a channel name.

Parameters

channelListRequester

The client callback.

Returns

shared pointer to ChannelFind. The interface for SyncChannelFind is defined by pvAccessCPP.

Definition at line 128 of file channelProviderLocal.cpp.

{
    if(traceLevel>1) {
        cout << "ChannelProviderLocal::channelList\n";
    }
    PVDatabasePtr pvdb(pvDatabase.lock());
    if(!pvdb)throw std::logic_error("pvDatabase was deleted");
    PVStringArrayPtr records(pvdb->getRecordNames());
    channelListRequester->channelListResult(
        Status::Ok, shared_from_this(), records->view(), false);
    return shared_from_this();
}

virtual epics::pvAccess::Channel::shared_pointer epics::pvDatabase::ChannelProviderLocal::createChannel ( std::string const &  channelName, epics::pvAccess::ChannelRequester::shared_pointer const &  channelRequester, short  priority  )

virtual

Create a channel for a record.

This method just calls the next method with a address of "".

Parameters

channelName	The name of the channel desired.
channelRequester	The client callback.
priority	The priority.

Returns

shared pointer to Channel.

virtual epics::pvAccess::Channel::shared_pointer epics::pvDatabase::ChannelProviderLocal::createChannel ( std::string const &  channelName, epics::pvAccess::ChannelRequester::shared_pointer const &  channelRequester, short  priority, std::string const &  address  )

virtual

Create a channel for a record.

Parameters

channelName	The name of the channel desired.
channelRequester	The callback to call with the result.
priority	The priority. This is ignored.
address	The address. This is ignored.

Returns

shared pointer to Channel. This is null if the channelName is not the name of a record in the PVDatabase. Otherwise it is a newly created channel inteface. ChannelRequester::channelCreated is called to give the result.

virtual void epics::pvDatabase::ChannelProviderLocal::destroy ( )

inlinevirtual

DEPRECATED.

Implements epics::pvAccess::Destroyable.

Definition at line 73 of file channelProviderLocal.h.

{};

std::tr1::shared_ptr< ChannelProvider > epics::pvDatabase::ChannelProviderLocal::getChannelProvider ( )

virtual

ChannelFind method.

Returns

pointer to self.

Implements epics::pvAccess::ChannelFind.

Definition at line 86 of file channelProviderLocal.cpp.

{
    return shared_from_this();
}

string epics::pvDatabase::ChannelProviderLocal::getProviderName ( )

virtual

Returns the channel provider name.

Returns

local

Implements epics::pvAccess::ChannelProvider.

Definition at line 91 of file channelProviderLocal.cpp.

{
    return providerName;
}

int epics::pvDatabase::ChannelProviderLocal::getTraceLevel ( )

inline

get trace level (0,1,2) means (nothing,lifetime,process)

Returns

the level

Definition at line 142 of file channelProviderLocal.h.

{return traceLevel;}

epics::pvDatabase::ChannelProviderLocal::POINTER_DEFINITIONS

(

ChannelProviderLocal

)

void epics::pvDatabase::ChannelProviderLocal::setTraceLevel ( int  level )

inline

set trace level (0,1,2) means (nothing,lifetime,process)

Parameters

level

The level

Definition at line 147 of file channelProviderLocal.h.

{traceLevel = level;}

Friends And Related Function Documentation

friend class ChannelProviderLocalRun

friend

Definition at line 163 of file channelProviderLocal.h.

epicsShareFunc ChannelProviderLocalPtr getChannelProviderLocal ( )

friend

Definition at line 56 of file channelProviderLocal.cpp.

{
    static int firstTime = 1;
    if (firstTime) {
        firstTime = 0;
        ChannelProviderFactory::shared_pointer factory(
             new  LocalChannelProviderFactory());
         ChannelProviderRegistry::servers()->add(factory);
    }
    ChannelProvider::shared_pointer channelProvider =
        ChannelProviderRegistry::servers()->getProvider(providerName);
    return std::tr1::dynamic_pointer_cast<ChannelProviderLocal>(channelProvider);
}

---

The documentation for this class was generated from the following files:

• modules/pvDatabase/src/pv/channelProviderLocal.h
• modules/pvDatabase/src/pvAccess/channelProviderLocal.cpp
