BaseChannel Struct Reference

#include "pvahelper.h"

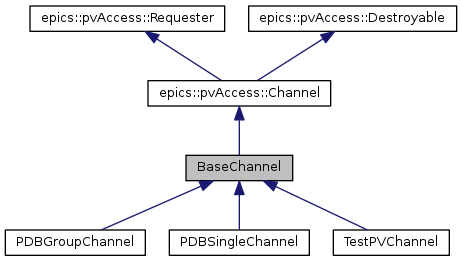

Inheritance diagram for BaseChannel:

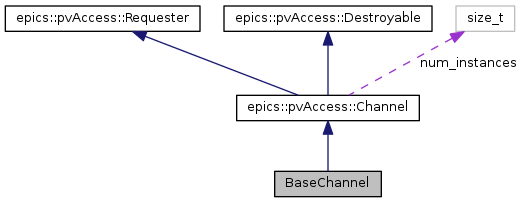

Collaboration diagram for BaseChannel:

Public Types
typedef epicsGuard< epicsMutex >	guard_t
Public Types inherited from epics::pvAccess::Channel
enum	ConnectionState { NEVER_CONNECTED, CONNECTED, DISCONNECTED, DESTROYED }
typedef ChannelRequester	requester_type

Public Member Functions
	BaseChannel (const std::string &name, const std::tr1::weak_ptr< epics::pvAccess::ChannelProvider > &prov, const epics::pvAccess::ChannelRequester::shared_pointer &req, const epics::pvData::StructureConstPtr &dtype)
virtual	~BaseChannel ()
virtual std::string	getRequesterName () OVERRIDE
virtual void	destroy () OVERRIDE FINAL
virtual std::tr1::shared_ptr< epics::pvAccess::ChannelProvider >	getProvider () OVERRIDE FINAL
virtual std::string	getRemoteAddress () OVERRIDE
virtual std::string	getChannelName () OVERRIDE FINAL
virtual std::tr1::shared_ptr< epics::pvAccess::ChannelRequester >	getChannelRequester () OVERRIDE FINAL
virtual void	getField (epics::pvAccess::GetFieldRequester::shared_pointer const &requester, std::string const &subField) OVERRIDE
virtual void	printInfo (std::ostream &out) OVERRIDE
Public Member Functions inherited from epics::pvAccess::Channel
	POINTER_DEFINITIONS (Channel)
	Channel ()
virtual	~Channel ()
virtual void	message (std::string const &message, epics::pvData::MessageType messageType)
virtual ConnectionState	getConnectionState ()
virtual bool	isConnected ()
virtual void	getField (GetFieldRequester::shared_pointer const &requester, std::string const &subField)
virtual AccessRights	getAccessRights (epics::pvData::PVField::shared_pointer const &pvField)
virtual ChannelProcess::shared_pointer	createChannelProcess (ChannelProcessRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual ChannelGet::shared_pointer	createChannelGet (ChannelGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual ChannelPut::shared_pointer	createChannelPut (ChannelPutRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual ChannelPutGet::shared_pointer	createChannelPutGet (ChannelPutGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual ChannelRPC::shared_pointer	createChannelRPC (ChannelRPCRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual Monitor::shared_pointer	createMonitor (MonitorRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual ChannelArray::shared_pointer	createChannelArray (ChannelArrayRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)
virtual void	printInfo ()
Public Member Functions inherited from epics::pvAccess::Requester
	POINTER_DEFINITIONS (Requester)
virtual	~Requester ()
virtual void	message (std::string const &message, MessageType messageType=errorMessage)
Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Attributes
epicsMutex	lock
const std::string	pvname
const epics::pvAccess::ChannelProvider::weak_pointer	provider
const requester_type::weak_pointer	requester
const epics::pvData::StructureConstPtr	fielddesc

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::Channel
static size_t	num_instances
static const char *	ConnectionStateNames [] = { "NEVER_CONNECTED", "CONNECTED", "DISCONNECTED", "DESTROYED" }
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 19 of file pvahelper.h.

Member Typedef Documentation

typedef epicsGuard<epicsMutex> BaseChannel::guard_t

Definition at line 31 of file pvahelper.h.

Constructor & Destructor Documentation

BaseChannel::BaseChannel ( const std::string &  name, const std::tr1::weak_ptr< epics::pvAccess::ChannelProvider > &  prov, const epics::pvAccess::ChannelRequester::shared_pointer &  req, const epics::pvData::StructureConstPtr &  dtype  )

inline

Definition at line 21 of file pvahelper.h.

        :pvname(name), provider(prov), requester(req), fielddesc(dtype)
    {}

virtual BaseChannel::~BaseChannel ( )

inlinevirtual

Definition at line 28 of file pvahelper.h.

{}

Member Function Documentation

virtual void BaseChannel::destroy ( )

inlinevirtual

Destroy this instance.

Implements epics::pvAccess::Destroyable.

Definition at line 42 of file pvahelper.h.

{}

virtual std::string BaseChannel::getChannelName ( )

inlinevirtual

The name passed to ChannelProvider::createChannel()

Implements epics::pvAccess::Channel.

Definition at line 49 of file pvahelper.h.

{ return pvname; }

virtual std::tr1::shared_ptr<epics::pvAccess::ChannelRequester> BaseChannel::getChannelRequester ( )

inlinevirtual

The ChannelRequester passed to ChannelProvider::createChannel()

Exceptions

std::tr1::bad_weak_ptr

Implements epics::pvAccess::Channel.

Definition at line 50 of file pvahelper.h.

    { return requester_type::shared_pointer(requester); }

virtual void BaseChannel::getField ( epics::pvAccess::GetFieldRequester::shared_pointer const &  requester, std::string const &  subField  )

inlinevirtual

Reimplemented in TestPVChannel.

Definition at line 53 of file pvahelper.h.

    { requester->getDone(epics::pvData::Status(), fielddesc); }

virtual std::tr1::shared_ptr<epics::pvAccess::ChannelProvider> BaseChannel::getProvider ( )

inlinevirtual

The ChannelProvider from which this Channel was requested. May never be NULL.

Implements epics::pvAccess::Channel.

Definition at line 44 of file pvahelper.h.

    { return epics::pvAccess::ChannelProvider::shared_pointer(provider); }

virtual std::string BaseChannel::getRemoteAddress ( )

inlinevirtual

Returns the channel's remote address, signal name, etc... For example:

• client side channel would return server's address, e.g. "/192.168.1.101:5064"
• server side channel would return underlying bus address, e.g. "#C0 S1".

The value returned here will changed depending on the connection status. A disconnected channel should return an empty() string.

Implements epics::pvAccess::Channel.

Reimplemented in TestPVChannel.

Definition at line 46 of file pvahelper.h.

    { return getRequesterName(); }

virtual std::string BaseChannel::getRequesterName ( )

inlinevirtual

The requester must have a name.

Returns

The requester's name.

Reimplemented from epics::pvAccess::Channel.

Definition at line 39 of file pvahelper.h.

    { return getChannelRequester()->getRequesterName(); }

virtual void BaseChannel::printInfo ( std::ostream &  out )

inlinevirtual

Prints detailed information about the context to the specified output stream.

Parameters

out	the output stream.

Reimplemented from epics::pvAccess::Channel.

Reimplemented in PDBGroupChannel, and PDBSingleChannel.

Definition at line 56 of file pvahelper.h.

                                                     {
        out<<"Channel '"<<pvname<<"' "<<getRemoteAddress()<<"\n";
    }

Member Data Documentation

const epics::pvData::StructureConstPtr BaseChannel::fielddesc

Definition at line 36 of file pvahelper.h.

epicsMutex BaseChannel::lock

mutable

Definition at line 30 of file pvahelper.h.

const epics::pvAccess::ChannelProvider::weak_pointer BaseChannel::provider

Definition at line 34 of file pvahelper.h.

const std::string BaseChannel::pvname

Definition at line 33 of file pvahelper.h.

const requester_type::weak_pointer BaseChannel::requester

Definition at line 35 of file pvahelper.h.

---

The documentation for this struct was generated from the following file:

• modules/pva2pva/common/pvahelper.h
