#include "utilities.h"

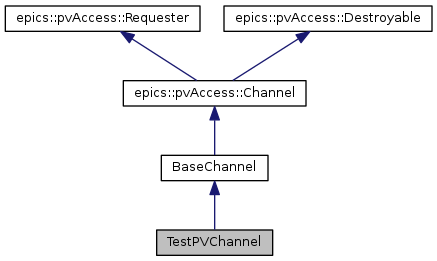

Inheritance diagram for TestPVChannel:

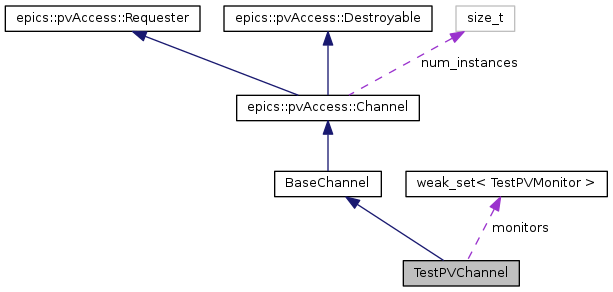

Collaboration diagram for TestPVChannel:

Public Types
typedef weak_set< TestPVMonitor >	monitors_t

Public Types inherited from BaseChannel
typedef epicsGuard< epicsMutex >	guard_t

Public Types inherited from epics::pvAccess::Channel
enum	ConnectionState { NEVER_CONNECTED, CONNECTED, DISCONNECTED, DESTROYED }

typedef ChannelRequester	requester_type

Public Member Functions
	POINTER_DEFINITIONS (TestPVChannel)

	TestPVChannel (const std::tr1::shared_ptr< TestPV > &pv, const std::tr1::shared_ptr< epics::pvAccess::ChannelRequester > &req)

virtual	~TestPVChannel ()

virtual std::string	getRemoteAddress ()

virtual ConnectionState	getConnectionState ()

virtual void	getField (epics::pvAccess::GetFieldRequester::shared_pointer const &requester, std::string const &subField)

virtual epics::pvData::Monitor::shared_pointer	createMonitor (epics::pvData::MonitorRequester::shared_pointer const &monitorRequester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

Public Member Functions inherited from BaseChannel
	BaseChannel (const std::string &name, const std::tr1::weak_ptr< epics::pvAccess::ChannelProvider > &prov, const epics::pvAccess::ChannelRequester::shared_pointer &req, const epics::pvData::StructureConstPtr &dtype)

virtual	~BaseChannel ()

virtual std::string	getRequesterName () OVERRIDE

virtual void	destroy () OVERRIDE FINAL

virtual std::tr1::shared_ptr< epics::pvAccess::ChannelProvider >	getProvider () OVERRIDE FINAL

virtual std::string	getChannelName () OVERRIDE FINAL

virtual std::tr1::shared_ptr< epics::pvAccess::ChannelRequester >	getChannelRequester () OVERRIDE FINAL

virtual void	printInfo (std::ostream &out) OVERRIDE

Public Member Functions inherited from epics::pvAccess::Channel
	POINTER_DEFINITIONS (Channel)

	Channel ()

virtual	~Channel ()

virtual void	message (std::string const &message, epics::pvData::MessageType messageType)

virtual bool	isConnected ()

virtual void	getField (GetFieldRequester::shared_pointer const &requester, std::string const &subField)

virtual AccessRights	getAccessRights (epics::pvData::PVField::shared_pointer const &pvField)

virtual ChannelProcess::shared_pointer	createChannelProcess (ChannelProcessRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelGet::shared_pointer	createChannelGet (ChannelGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelPut::shared_pointer	createChannelPut (ChannelPutRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelPutGet::shared_pointer	createChannelPutGet (ChannelPutGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelRPC::shared_pointer	createChannelRPC (ChannelRPCRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual Monitor::shared_pointer	createMonitor (MonitorRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelArray::shared_pointer	createChannelArray (ChannelArrayRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual void	printInfo ()

Public Member Functions inherited from epics::pvAccess::Requester
	POINTER_DEFINITIONS (Requester)

virtual	~Requester ()

virtual void	message (std::string const &message, MessageType messageType=errorMessage)

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Attributes
std::tr1::weak_ptr< TestPVChannel >	weakself

const std::tr1::shared_ptr< TestPV >	pv

ConnectionState	state

monitors_t	monitors

Public Attributes inherited from BaseChannel
epicsMutex	lock

const std::string	pvname

const epics::pvAccess::ChannelProvider::weak_pointer	provider

const requester_type::weak_pointer	requester

const epics::pvData::StructureConstPtr	fielddesc

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::Channel
static size_t	num_instances

static const char *	ConnectionStateNames [] = { "NEVER_CONNECTED", "CONNECTED", "DISCONNECTED", "DESTROYED" }

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 184 of file utilities.h.

Member Typedef Documentation

typedef weak_set<TestPVMonitor> TestPVChannel::monitors_t

Definition at line 193 of file utilities.h.

Constructor & Destructor Documentation

TestPVChannel::TestPVChannel	(	const std::tr1::shared_ptr< TestPV > &	pv,
		const std::tr1::shared_ptr< epics::pvAccess::ChannelRequester > &	req
	)

Definition at line 220 of file utilities.cpp.

     :BaseChannel(pv->name, pv->provider, req, pv->dtype)
     ,pv(pv)
     ,state(CONNECTED)
 {
     epicsAtomicIncrSizeT(&countTestPVChannel);
 }

TestPVChannel::~TestPVChannel ( )

virtual

Definition at line 229 of file utilities.cpp.

 {
     epicsAtomicDecrSizeT(&countTestPVChannel);
 }

Member Function Documentation

pvd::Monitor::shared_pointer TestPVChannel::createMonitor	(	epics::pvData::MonitorRequester::shared_pointer const &	monitorRequester,
		epics::pvData::PVStructure::shared_pointer const &	pvRequest
	)

virtual

Definition at line 249 of file utilities.cpp.

 {
     shared_pointer self(weakself);
     TestPVMonitor::shared_pointer ret(new TestPVMonitor(self, requester, 2));
     {
         Guard G(pv->lock);
         monitors.insert(ret);
         static_cast<TestPVMonitor*>(ret.get())->weakself = ret; // save wrapped weak ref
     }
     testDiag("TestPVChannel::createMonitor %s %p", pv->name.c_str(), ret.get());
     requester->monitorConnect(pvd::Status(), ret, pv->dtype);
     return ret;
 }

TestPVChannel::ConnectionState TestPVChannel::getConnectionState ( )

virtual

Poll the connection state in more detail

Reimplemented from epics::pvAccess::Channel.

Definition at line 234 of file utilities.cpp.

 {
     Guard G(pv->lock);
     return state;
 }

void TestPVChannel::getField	(	epics::pvAccess::GetFieldRequester::shared_pointer const &	requester,
		std::string const &	subField
	)

virtual

Reimplemented from BaseChannel.

Definition at line 240 of file utilities.cpp.

 {
     Guard G(pv->lock);

     //TODO subField?
     requester->getDone(pvd::Status(), pv->dtype);
 }

virtual std::string TestPVChannel::getRemoteAddress ( )

inlinevirtual

Returns the channel's remote address, signal name, etc... For example:

client side channel would return server's address, e.g. "/192.168.1.101:5064"
server side channel would return underlying bus address, e.g. "#C0 S1".

The value returned here will changed depending on the connection status. A disconnected channel should return an empty() string.

Reimplemented from BaseChannel.

Definition at line 200 of file utilities.h.

200 { return "localhost:1234"; }

TestPVChannel::POINTER_DEFINITIONS ( TestPVChannel )

Member Data Documentation

monitors_t TestPVChannel::monitors

Definition at line 194 of file utilities.h.

const std::tr1::shared_ptr<TestPV> TestPVChannel::pv

Definition at line 190 of file utilities.h.

ConnectionState TestPVChannel::state

Definition at line 191 of file utilities.h.

std::tr1::weak_ptr<TestPVChannel> TestPVChannel::weakself

Definition at line 188 of file utilities.h.

The documentation for this struct was generated from the following files:

modules/pva2pva/common/utilities.h
modules/pva2pva/common/utilities.cpp
