#include "pdbgroup.h"

Inheritance diagram for PDBGroupMonitor:

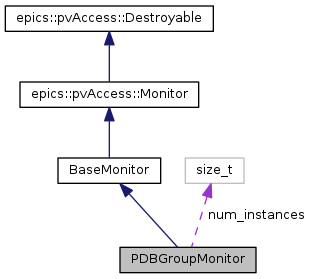

Collaboration diagram for PDBGroupMonitor:

Public Member Functions
	POINTER_DEFINITIONS (PDBGroupMonitor)

	PDBGroupMonitor (const PDBGroupPV::shared_pointer &pv, const requester_type::weak_pointer &requester, const epics::pvData::PVStructure::shared_pointer &pvReq)

virtual	~PDBGroupMonitor ()

virtual void	onStart () OVERRIDE FINAL

virtual void	onStop () OVERRIDE FINAL

virtual void	requestUpdate () OVERRIDE FINAL

virtual void	destroy () OVERRIDE FINAL

Public Member Functions inherited from BaseMonitor
	POINTER_DEFINITIONS (BaseMonitor)

shared_pointer	shared_from_this ()

	BaseMonitor (epicsMutex &lock, const requester_t::weak_pointer &requester, const epics::pvData::PVStructure::shared_pointer &pvReq)

virtual	~BaseMonitor ()

const epics::pvData::PVStructurePtr &	getValue ()

void	connect (guard_t &guard, const epics::pvData::PVStructurePtr &value)

bool	post (guard_t &guard, const epics::pvData::BitSet &updated, no_overflow)
	post update if queue not full, if full return false w/o overflow More...

bool	post (guard_t &guard)
	post update of pending changes. eg. call from requestUpdate() More...

bool	post (guard_t &guard, const epics::pvData::BitSet &updated, const epics::pvData::BitSet &overflowed)
	post update with changed and overflowed masks (eg. when updates were lost in some upstream queue) More...

bool	post (guard_t &guard, const epics::pvData::BitSet &updated)
	post update with changed More...

virtual void	getStats (Stats &s) const

Public Member Functions inherited from epics::pvAccess::Monitor
	POINTER_DEFINITIONS (Monitor)

virtual	~Monitor ()

virtual void	reportRemoteQueueStatus (epics::pvData::int32 freeElements)

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Attributes
PDBGroupPV::shared_pointer	pv

bool	atomic

Public Attributes inherited from BaseMonitor
weak_pointer	weakself

epicsMutex &	lock

Static Public Attributes
static size_t	num_instances

Additional Inherited Members
Public Types inherited from BaseMonitor
typedef epics::pvAccess::MonitorRequester	requester_t

typedef epicsGuard< epicsMutex >	guard_t

typedef epicsGuardRelease< epicsMutex >	unguard_t

Public Types inherited from epics::pvAccess::Monitor
typedef MonitorRequester	requester_type

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 196 of file pdbgroup.h.

Constructor & Destructor Documentation

PDBGroupMonitor::PDBGroupMonitor	(	const PDBGroupPV::shared_pointer &	pv,
		const requester_type::weak_pointer &	requester,
		const epics::pvData::PVStructure::shared_pointer &	pvReq
	)

Definition at line 418 of file pdbgroup.cpp.

     :BaseMonitor(pv->lock, requester, pvReq)
     ,pv(pv)
 {
     epics::atomic::increment(num_instances);
 }

PDBGroupMonitor::~PDBGroupMonitor ( )

virtual

Definition at line 427 of file pdbgroup.cpp.

 {
     destroy();
     epics::atomic::decrement(num_instances);
 }

Member Function Documentation

void PDBGroupMonitor::destroy ( )

virtual

Destroy this instance.

Reimplemented from BaseMonitor.

Definition at line 433 of file pdbgroup.cpp.

 {
     BaseMonitor::destroy();
     PDBGroupPV::shared_pointer pv;
     {
         Guard G(lock);
         this->pv.swap(pv);
     }
 }

void PDBGroupMonitor::onStart ( )

virtual

Reimplemented from BaseMonitor.

Definition at line 443 of file pdbgroup.cpp.

 {
     pv->addMonitor(this);
 }

void PDBGroupMonitor::onStop ( )

virtual

Reimplemented from BaseMonitor.

Definition at line 448 of file pdbgroup.cpp.

 {
     pv->removeMonitor(this);
 }

PDBGroupMonitor::POINTER_DEFINITIONS ( PDBGroupMonitor )

void PDBGroupMonitor::requestUpdate ( )

virtual

called when within release() when the opportunity exists to end the overflow condition May do nothing, or lock and call post()

Reimplemented from BaseMonitor.

Definition at line 453 of file pdbgroup.cpp.

 {
     Guard G(pv->lock);
     post(G);
 }

Member Data Documentation

bool PDBGroupMonitor::atomic

Definition at line 202 of file pdbgroup.h.

size_t PDBGroupMonitor::num_instances

static

Definition at line 204 of file pdbgroup.h.

PDBGroupPV::shared_pointer PDBGroupMonitor::pv

Definition at line 200 of file pdbgroup.h.

The documentation for this struct was generated from the following files:

modules/pva2pva/pdbApp/pdbgroup.h
modules/pva2pva/pdbApp/pdbgroup.cpp
