Public Types | Public Member Functions | List of all members
epics::pvAccess::ChannelPut Class Referenceabstract

#include "pvAccess.h"

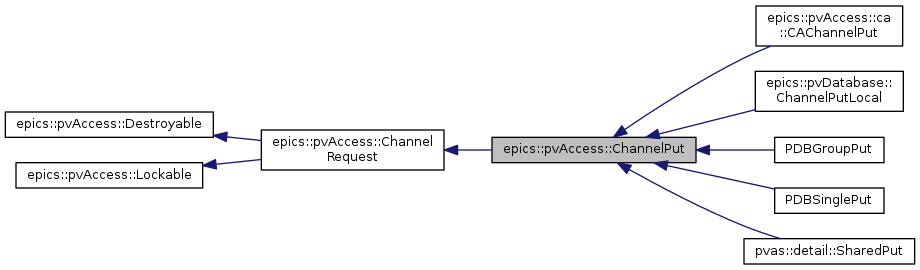

+ Inheritance diagram for epics::pvAccess::ChannelPut:

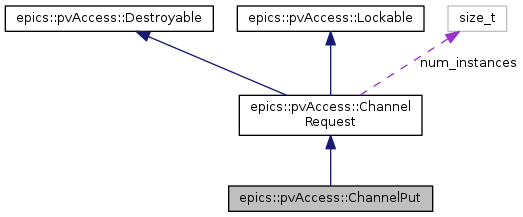

+ Collaboration diagram for epics::pvAccess::ChannelPut:

Public Types

typedef ChannelPutRequester requester_type


Public Member Functions

 POINTER_DEFINITIONS (ChannelPut)

virtual ~ChannelPut ()

virtual void put (epics::pvData::PVStructure::shared_pointer const &pvPutStructure, epics::pvData::BitSet::shared_pointer const &putBitSet)=0

virtual void get ()=0

- Public Member Functions inherited from epics::pvAccess::ChannelRequest
 POINTER_DEFINITIONS (ChannelRequest)

 ChannelRequest ()

virtual ~ChannelRequest ()

virtual std::tr1::shared_ptr< Channel > getChannel ()=0

virtual void cancel ()=0

virtual void lastRequest ()=0

- Public Member Functions inherited from epics::pvAccess::Destroyable
 POINTER_DEFINITIONS (Destroyable)

virtual void destroy ()=0

- Public Member Functions inherited from epics::pvAccess::Lockable
 POINTER_DEFINITIONS (Lockable)

virtual ~Lockable ()

virtual void lock ()

virtual void unlock ()


Additional Inherited Members

- Static Public Attributes inherited from epics::pvAccess::ChannelRequest
static size_t num_instances

- Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual ~Destroyable ()


Detailed Description

Interface for a channel access put request.

Definition at line 600 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelPutRequester epics::pvAccess::ChannelPut::requester_type

Definition at line 603 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelPut::~ChannelPut ( )
inlinevirtual

Definition at line 605 of file pvAccess.h.

605 {}

Member Function Documentation

virtual void epics::pvAccess::ChannelPut::get ( )
pure virtual

Get the current data.

Ownership transfer as with ChannelGet::get()

Implemented in epics::pvDatabase::ChannelPutLocal, epics::pvAccess::ca::CAChannelPut, PDBGroupPut, PDBSinglePut, and pvas::detail::SharedPut.

epics::pvAccess::ChannelPut::POINTER_DEFINITIONS ( ChannelPut  )
virtual void epics::pvAccess::ChannelPut::put ( epics::pvData::PVStructure::shared_pointer const &  pvPutStructure,
epics::pvData::BitSet::shared_pointer const &  putBitSet
)
pure virtual

Put data to a channel.

Completion status is reported by calling ChannelPutRequester::putDone()

Ownership of the PVStructure is transfered to the ChannelPut until ChannelPutRequester::putDone() or ChannelPutRequester::channelDisconnect() is called.

Parameters
pvPutStructureThe PVStructure that holds the putData.
putBitSetputPVStructure bit-set (selects what fields to put).

Implemented in epics::pvAccess::ca::CAChannelPut, PDBGroupPut, PDBSinglePut, and pvas::detail::SharedPut.

The documentation for this class was generated from the following file:
