epics::pvAccess::ChannelPutRequester Class Referenceabstract

#include "pvAccess.h"

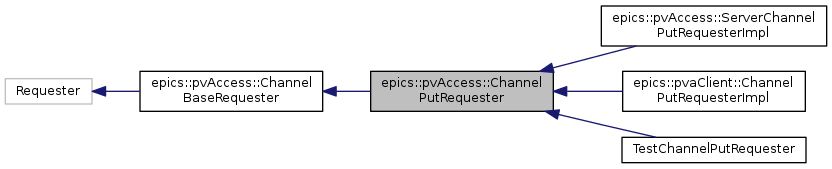

+ Inheritance diagram for epics::pvAccess::ChannelPutRequester:
+ Collaboration diagram for epics::pvAccess::ChannelPutRequester:

Public Types

typedef ChannelPut operation_type


Public Member Functions

 POINTER_DEFINITIONS (ChannelPutRequester)

virtual ~ChannelPutRequester ()

virtual void channelPutConnect (const epics::pvData::Status &status, ChannelPut::shared_pointer const &channelPut, epics::pvData::Structure::const_shared_pointer const &structure)=0

virtual void putDone (const epics::pvData::Status &status, ChannelPut::shared_pointer const &channelPut)=0

virtual void getDone (const epics::pvData::Status &status, ChannelPut::shared_pointer const &channelPut, epics::pvData::PVStructure::shared_pointer const &pvStructure, epics::pvData::BitSet::shared_pointer const &bitSet)=0

- Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
 POINTER_DEFINITIONS (ChannelBaseRequester)

 ChannelBaseRequester ()

virtual ~ChannelBaseRequester ()

virtual void channelDisconnect (bool destroy)


Additional Inherited Members

- Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t num_instances


Detailed Description

Requester for ChannelPut.

Definition at line 635 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelPut epics::pvAccess::ChannelPutRequester::operation_type

Definition at line 638 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelPutRequester::~ChannelPutRequester ( )
inlinevirtual

Definition at line 640 of file pvAccess.h.

640 {}

Member Function Documentation

virtual void epics::pvAccess::ChannelPutRequester::channelPutConnect ( const epics::pvData::Status &  status,
ChannelPut::shared_pointer const &  channelPut,
epics::pvData::Structure::const_shared_pointer const &  structure
)
pure virtual

The client and server have both processed the createChannelPut request.

Parameters
statusCompletion status.
channelPutThe channelPut interface or null if the request failed.
structureThe introspection interface of requested put/get structure or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelPutRequesterImpl.

virtual void epics::pvAccess::ChannelPutRequester::getDone ( const epics::pvData::Status &  status,
ChannelPut::shared_pointer const &  channelPut,
epics::pvData::PVStructure::shared_pointer const &  pvStructure,
epics::pvData::BitSet::shared_pointer const &  bitSet
)
pure virtual

The get request is done. This is always called with no locks held.

Ownership transfer as with ChannelGetRequester::getDone()

Parameters
statusCompletion status.
channelPutThe channelPut interface.
pvStructureThe PVStructure that holds the data or nullptr if the request failed.
bitSetThe bitSet for that shows what data has changed or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelPutRequesterImpl.

epics::pvAccess::ChannelPutRequester::POINTER_DEFINITIONS ( ChannelPutRequester  )
virtual void epics::pvAccess::ChannelPutRequester::putDone ( const epics::pvData::Status &  status,
ChannelPut::shared_pointer const &  channelPut
)
pure virtual

The request is done. This is always called with no locks held.

Parameters
statusCompletion status.
channelPutThe channelPut interface.

Implemented in epics::pvAccess::ServerChannelPutRequesterImpl, and epics::pvaClient::ChannelPutRequesterImpl.

The documentation for this class was generated from the following file:
