#include "pvAccess.h"

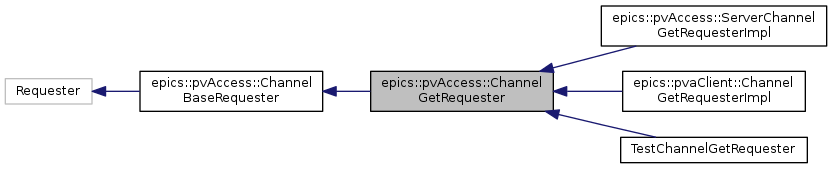

Inheritance diagram for epics::pvAccess::ChannelGetRequester:

Collaboration diagram for epics::pvAccess::ChannelGetRequester:

Public Member Functions
	POINTER_DEFINITIONS (ChannelGetRequester)

virtual	~ChannelGetRequester ()

virtual void	channelGetConnect (const epics::pvData::Status &status, ChannelGet::shared_pointer const &channelGet, epics::pvData::Structure::const_shared_pointer const &structure)=0

virtual void	getDone (const epics::pvData::Status &status, ChannelGet::shared_pointer const &channelGet, epics::pvData::PVStructure::shared_pointer const &pvStructure, epics::pvData::BitSet::shared_pointer const &bitSet)=0

Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)

	ChannelBaseRequester ()

virtual	~ChannelBaseRequester ()

virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Detailed Description

Requester for channelGet.

Definition at line 511 of file pvAccess.h.

Member Typedef Documentation

Definition at line 514 of file pvAccess.h.

virtual epics::pvAccess::ChannelGetRequester::~ChannelGetRequester ( )

inlinevirtual

Definition at line 516 of file pvAccess.h.

516 {}

virtual void epics::pvAccess::ChannelGetRequester::channelGetConnect	(	const epics::pvData::Status &	status,
		ChannelGet::shared_pointer const &	channelGet,
		epics::pvData::Structure::const_shared_pointer const &	structure
	)

pure virtual

The client and server have both completed the createChannelGet request.

Parameters

status	Completion status.
channelGet	The channelGet interface or nullptr if the request failed.
structure	The introspection interface of requested get structure or nullptr if the request failed.

virtual void epics::pvAccess::ChannelGetRequester::getDone	(	const epics::pvData::Status &	status,
		ChannelGet::shared_pointer const &	channelGet,
		epics::pvData::PVStructure::shared_pointer const &	pvStructure,
		epics::pvData::BitSet::shared_pointer const &	bitSet
	)

pure virtual

The request is done. This is always called with no locks held.

Ownership of the PVStructure is passed to the ChannelGetRequester until a subsequent call to ChannelGet::get() or ChannelGetRequester::channelDisconnect()

Parameters

status	Completion status.
channelGet	The channelGet interface.
pvStructure	The PVStructure that holds the data or nullptr if the request failed.
bitSet	The bitSet for that shows what data has changed or nullptr if the request failed.

epics::pvAccess::ChannelGetRequester::POINTER_DEFINITIONS ( ChannelGetRequester )

The documentation for this class was generated from the following file:
