Public Types | Public Member Functions | List of all members
epics::pvAccess::ChannelGet Class Referenceabstract

#include "pvAccess.h"

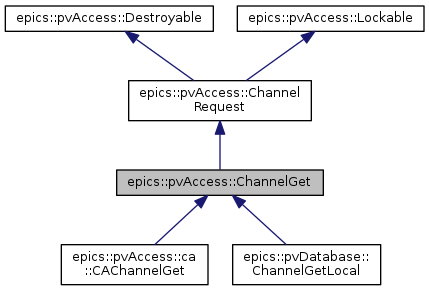

+ Inheritance diagram for epics::pvAccess::ChannelGet:

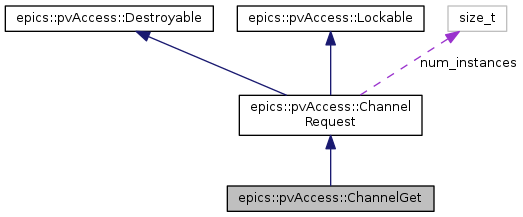

+ Collaboration diagram for epics::pvAccess::ChannelGet:

Public Types

typedef ChannelGetRequester requester_type


Public Member Functions

 POINTER_DEFINITIONS (ChannelGet)

virtual ~ChannelGet ()

virtual void get ()=0

- Public Member Functions inherited from epics::pvAccess::ChannelRequest
 POINTER_DEFINITIONS (ChannelRequest)

 ChannelRequest ()

virtual ~ChannelRequest ()

virtual std::tr1::shared_ptr< Channel > getChannel ()=0

virtual void cancel ()=0

virtual void lastRequest ()=0

- Public Member Functions inherited from epics::pvAccess::Destroyable
 POINTER_DEFINITIONS (Destroyable)

virtual void destroy ()=0

- Public Member Functions inherited from epics::pvAccess::Lockable
 POINTER_DEFINITIONS (Lockable)

virtual ~Lockable ()

virtual void lock ()

virtual void unlock ()


Additional Inherited Members

- Static Public Attributes inherited from epics::pvAccess::ChannelRequest
static size_t num_instances

- Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual ~Destroyable ()


Detailed Description

Request to get data from a channel.

Definition at line 489 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelGetRequester epics::pvAccess::ChannelGet::requester_type

Definition at line 492 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelGet::~ChannelGet ( )
inlinevirtual

Definition at line 494 of file pvAccess.h.

494 {}

Member Function Documentation

virtual void epics::pvAccess::ChannelGet::get ( )
pure virtual

Get data from the channel.

Ownership of the PVStructure passed to ChannelGetRequester::getDone() is returned to the ChannelGet.

Completion status is reported by calling ChannelGetRequester::getDone() callback.

Implemented in epics::pvDatabase::ChannelGetLocal, and epics::pvAccess::ca::CAChannelGet.

epics::pvAccess::ChannelGet::POINTER_DEFINITIONS ( ChannelGet  )
The documentation for this class was generated from the following file:
