#include "sharedstateimpl.h"

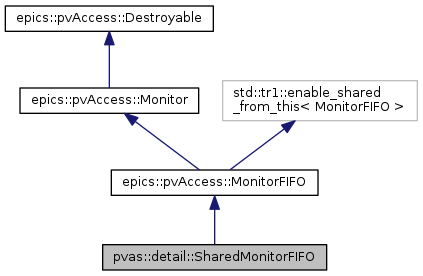

Inheritance diagram for pvas::detail::SharedMonitorFIFO:

Collaboration diagram for pvas::detail::SharedMonitorFIFO:

Public Member Functions
	SharedMonitorFIFO (const std::tr1::shared_ptr< SharedChannel > &channel, const requester_type::shared_pointer &requester, const pvd::PVStructure::const_shared_pointer &pvRequest, Config *conf)

virtual	~SharedMonitorFIFO ()

Public Member Functions inherited from epics::pvAccess::MonitorFIFO
	POINTER_DEFINITIONS (MonitorFIFO)

	MonitorFIFO (const std::tr1::shared_ptr< MonitorRequester > &requester, const pvData::PVStructure::const_shared_pointer &pvRequest, const Source::shared_pointer &source=Source::shared_pointer(), Config *conf=0)

virtual	~MonitorFIFO ()

const std::tr1::shared_ptr< MonitorRequester >	getRequester () const

void	show (std::ostream &strm) const

virtual void	destroy () OVERRIDE FINAL

void	setFreeHighMark (double level)

void	open (const epics::pvData::StructureConstPtr &type)
	Mark subscription as "open" with the associated structure type. More...

void	close ()
	Abnormal closure (eg. due to upstream dis-connection) More...

void	finish ()
	Successful closure (eg. RDB query done) More...

bool	tryPost (const pvData::PVStructure &value, const epics::pvData::BitSet &changed, const epics::pvData::BitSet &overrun=epics::pvData::BitSet(), bool force=false)

void	post (const pvData::PVStructure &value, const epics::pvData::BitSet &changed, const epics::pvData::BitSet &overrun=epics::pvData::BitSet())
	Consume a free slot if available, otherwise squash with most recent. More...

void	notify ()

virtual epics::pvData::Status	start () OVERRIDE FINAL

virtual epics::pvData::Status	stop () OVERRIDE FINAL

virtual MonitorElementPtr	poll () OVERRIDE FINAL

virtual void	release (MonitorElementPtr const &monitorElement) OVERRIDE FINAL

virtual void	getStats (Stats &s) const OVERRIDE FINAL

virtual void	reportRemoteQueueStatus (epics::pvData::int32 freeElements) OVERRIDE FINAL

size_t	freeCount () const
	Number of unused FIFO slots at this moment, which may changed in the next. More...

Public Member Functions inherited from epics::pvAccess::Monitor
	POINTER_DEFINITIONS (Monitor)

virtual	~Monitor ()

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

Public Attributes
const std::tr1::shared_ptr< SharedChannel >	channel

Additional Inherited Members
Public Types inherited from epics::pvAccess::Monitor
typedef MonitorRequester	requester_type

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 66 of file sharedstateimpl.h.

Constructor & Destructor Documentation

pvas::detail::SharedMonitorFIFO::SharedMonitorFIFO	(	const std::tr1::shared_ptr< SharedChannel > &	channel,
		const requester_type::shared_pointer &	requester,
		const pvd::PVStructure::const_shared_pointer &	pvRequest,
		Config *	conf
	)

Definition at line 258 of file sharedstate_channel.cpp.

     :pva::MonitorFIFO(requester, pvRequest, pva::MonitorFIFO::Source::shared_pointer(), conf)
     ,channel(channel)
 {}

pvas::detail::SharedMonitorFIFO::~SharedMonitorFIFO ( )

virtual

Definition at line 266 of file sharedstate_channel.cpp.

 {
     Guard G(channel->owner->mutex);
     channel->owner->monitors.remove(this);
 }

Member Data Documentation

const std::tr1::shared_ptr<SharedChannel> pvas::detail::SharedMonitorFIFO::channel

Definition at line 68 of file sharedstateimpl.h.

The documentation for this struct was generated from the following files:

modules/pvAccess/src/server/sharedstateimpl.h
modules/pvAccess/src/server/sharedstate_channel.cpp
