#include "remote.h"

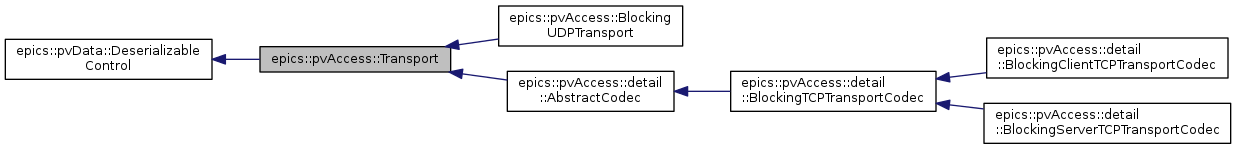

Inheritance diagram for epics::pvAccess::Transport:

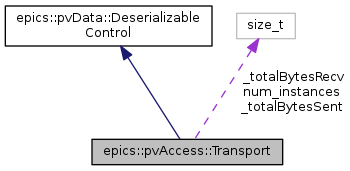

Collaboration diagram for epics::pvAccess::Transport:

Public Member Functions
	POINTER_DEFINITIONS (Transport)

	Transport ()

virtual	~Transport ()

virtual bool	acquire (std::tr1::shared_ptr< ClientChannelImpl > const &client)=0

virtual void	release (pvAccessID clientId)=0

virtual std::string	getType () const =0

virtual const osiSockAddr &	getRemoteAddress () const =0

virtual const std::string &	getRemoteName () const =0

virtual std::size_t	getReceiveBufferSize () const =0

virtual epics::pvData::int16	getPriority () const =0

virtual void	setRemoteTransportReceiveBufferSize (std::size_t receiveBufferSize)=0

virtual void	setRemoteTransportSocketReceiveBufferSize (std::size_t socketReceiveBufferSize)=0

virtual void	setByteOrder (int byteOrder)=0

virtual void	enqueueSendRequest (TransportSender::shared_pointer const &sender)=0

virtual void	flushSendQueue ()=0

virtual void	verified (epics::pvData::Status const &status)=0

virtual bool	verify (epics::pvData::int32 timeoutMs)=0

virtual void	close ()=0

virtual void	waitJoin ()
	Call after close() to wait for any worker threads to exit. More...

virtual bool	isClosed ()=0

virtual void	authNZMessage (epics::pvData::PVStructure::shared_pointer const &data)=0

Public Member Functions inherited from epics::pvData::DeserializableControl
virtual	~DeserializableControl ()

virtual void	ensureData (std::size_t size)=0

virtual void	alignData (std::size_t alignment)=0

virtual bool	directDeserialize (ByteBuffer existingBuffer, char deserializeTo, std::size_t elementCount, std::size_t elementSize)=0

virtual std::tr1::shared_ptr< const Field >	cachedDeserialize (ByteBuffer *buffer)=0

Public Attributes
size_t	_totalBytesSent

size_t	_totalBytesRecv

Static Public Attributes
static size_t	num_instances

Detailed Description

Interface defining transport (connection).

Definition at line 164 of file remote.h.

Constructor & Destructor Documentation

epics::pvAccess::Transport::Transport ( )

Definition at line 63 of file codec.cpp.

     :_totalBytesSent(0u)
     ,_totalBytesRecv(0u)
 {
     REFTRACE_INCREMENT(num_instances);
 }

epics::pvAccess::Transport::~Transport ( )

virtual

Definition at line 70 of file codec.cpp.

 {
     REFTRACE_DECREMENT(num_instances);
 }

Member Function Documentation

virtual bool epics::pvAccess::Transport::acquire ( std::tr1::shared_ptr< ClientChannelImpl > const & client )

pure virtual

Acquires transport.

Parameters

client client (channel) acquiring the transport

Returns: true if transport was granted, false otherwise.

Implemented in epics::pvAccess::detail::BlockingClientTCPTransportCodec, epics::pvAccess::detail::BlockingServerTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::authNZMessage ( epics::pvData::PVStructure::shared_pointer const & data )

pure virtual

Pass data to the active security plug-in session.

Parameters

data	the data (any data), can be `null`.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::close ( )

pure virtual

Close transport.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::enqueueSendRequest ( TransportSender::shared_pointer const & sender )

pure virtual

Enqueue send request.

Parameters

sender

Implemented in epics::pvAccess::detail::AbstractCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::flushSendQueue ( )

pure virtual

Flush send queue (sent messages).

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual epics::pvData::int16 epics::pvAccess::Transport::getPriority ( ) const

pure virtual

Transport priority.

Returns: protocol priority.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual std::size_t epics::pvAccess::Transport::getReceiveBufferSize ( ) const

pure virtual

Get receive buffer size.

Returns: receive buffer size.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual const osiSockAddr& epics::pvAccess::Transport::getRemoteAddress ( ) const

pure virtual

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual const std::string& epics::pvAccess::Transport::getRemoteName ( ) const

pure virtual

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual std::string epics::pvAccess::Transport::getType ( ) const

pure virtual

Get protocol type (tcp, udp, ssl, etc.).

Returns: protocol type.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual bool epics::pvAccess::Transport::isClosed ( )

pure virtual

Check connection status.

Returns: true if connected.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

epics::pvAccess::Transport::POINTER_DEFINITIONS ( Transport )

virtual void epics::pvAccess::Transport::release ( pvAccessID clientId )

pure virtual

Releases transport.

Parameters

client client (channel) releasing the transport

Implemented in epics::pvAccess::detail::BlockingClientTCPTransportCodec, epics::pvAccess::detail::BlockingServerTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::setByteOrder ( int byteOrder )

pure virtual

Set byte order.

Parameters

byteOrder byte order to set.

Implemented in epics::pvAccess::detail::AbstractCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::setRemoteTransportReceiveBufferSize ( std::size_t receiveBufferSize )

pure virtual

Set remote transport receive buffer size.

Parameters

receiveBufferSize receive buffer size.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::setRemoteTransportSocketReceiveBufferSize ( std::size_t socketReceiveBufferSize )

pure virtual

Set remote transport socket receive buffer size.

Parameters

socketReceiveBufferSize remote socket receive buffer size.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::verified ( epics::pvData::Status const & status )

pure virtual

Notify transport that it is has been verified.

Parameters

status vefification status;

Implemented in epics::pvAccess::detail::BlockingClientTCPTransportCodec, epics::pvAccess::detail::BlockingServerTCPTransportCodec, epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual bool epics::pvAccess::Transport::verify ( epics::pvData::int32 timeoutMs )

pure virtual

Waits (if needed) until transport is verified, i.e. verified() method is being called.

Parameters

timeoutMs timeout to wait for verification, infinite if 0.

Implemented in epics::pvAccess::detail::BlockingServerTCPTransportCodec, epics::pvAccess::detail::BlockingTCPTransportCodec, and epics::pvAccess::BlockingUDPTransport.

virtual void epics::pvAccess::Transport::waitJoin ( )

inlinevirtual

Call after close() to wait for any worker threads to exit.

Reimplemented in epics::pvAccess::detail::BlockingTCPTransportCodec.

Definition at line 258 of file remote.h.

258 {}

Member Data Documentation

size_t epics::pvAccess::Transport::_totalBytesRecv

Definition at line 273 of file remote.h.

size_t epics::pvAccess::Transport::_totalBytesSent

Definition at line 272 of file remote.h.

size_t epics::pvAccess::Transport::num_instances

static

Definition at line 168 of file remote.h.

The documentation for this class was generated from the following files:

modules/pvAccess/src/remote/pv/remote.h
modules/pvAccess/src/remote/codec.cpp
