#include "clientContextImpl.h"

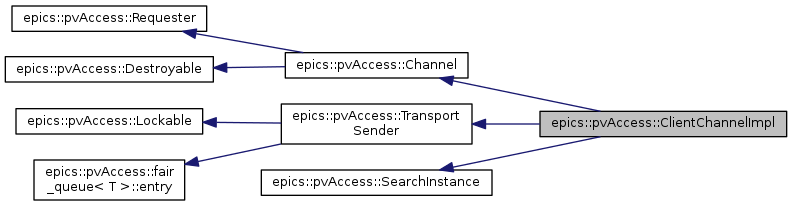

Inheritance diagram for epics::pvAccess::ClientChannelImpl:

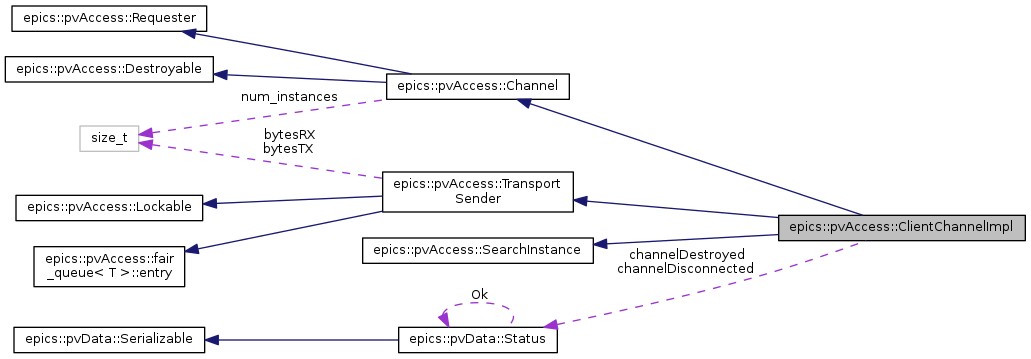

Collaboration diagram for epics::pvAccess::ClientChannelImpl:

Public Member Functions
	POINTER_DEFINITIONS (ClientChannelImpl)

virtual pvAccessID	getChannelID ()=0

virtual void	connectionCompleted (pvAccessID sid)=0

virtual void	createChannelFailed ()=0

virtual ClientContextImpl *	getContext ()=0

virtual void	channelDestroyedOnServer ()=0

virtual pvAccessID	getID ()=0

virtual pvAccessID	getServerChannelID ()=0

virtual void	registerResponseRequest (ResponseRequest::shared_pointer const &responseRequest)=0

virtual void	unregisterResponseRequest (pvAccessID ioid)=0

virtual Transport::shared_pointer	checkAndGetTransport ()=0

virtual Transport::shared_pointer	checkDestroyedAndGetTransport ()=0

virtual Transport::shared_pointer	getTransport ()=0

virtual void	transportClosed ()=0

Public Member Functions inherited from epics::pvAccess::Channel
	POINTER_DEFINITIONS (Channel)

	Channel ()

virtual	~Channel ()

virtual std::string	getRequesterName ()

virtual void	message (std::string const &message, epics::pvData::MessageType messageType)

virtual std::tr1::shared_ptr< ChannelProvider >	getProvider ()=0

virtual std::string	getRemoteAddress ()=0

virtual ConnectionState	getConnectionState ()

virtual std::string	getChannelName ()=0

virtual std::tr1::shared_ptr< ChannelRequester >	getChannelRequester ()=0

virtual bool	isConnected ()

virtual void	getField (GetFieldRequester::shared_pointer const &requester, std::string const &subField)

virtual AccessRights	getAccessRights (epics::pvData::PVField::shared_pointer const &pvField)

virtual ChannelProcess::shared_pointer	createChannelProcess (ChannelProcessRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelGet::shared_pointer	createChannelGet (ChannelGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelPut::shared_pointer	createChannelPut (ChannelPutRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelPutGet::shared_pointer	createChannelPutGet (ChannelPutGetRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelRPC::shared_pointer	createChannelRPC (ChannelRPCRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual Monitor::shared_pointer	createMonitor (MonitorRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual ChannelArray::shared_pointer	createChannelArray (ChannelArrayRequester::shared_pointer const &requester, epics::pvData::PVStructure::shared_pointer const &pvRequest)

virtual void	printInfo ()

virtual void	printInfo (std::ostream &out)

Public Member Functions inherited from epics::pvAccess::Requester
	POINTER_DEFINITIONS (Requester)

virtual	~Requester ()

virtual void	message (std::string const &message, MessageType messageType=errorMessage)

Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)

virtual void	destroy ()=0

Public Member Functions inherited from epics::pvAccess::TransportSender
	POINTER_DEFINITIONS (TransportSender)

	TransportSender ()

virtual	~TransportSender ()

virtual void	send (epics::pvData::ByteBuffer buffer, TransportSendControl control)=0

Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)

virtual	~Lockable ()

virtual void	lock ()

virtual void	unlock ()

Public Member Functions inherited from epics::pvAccess::fair_queue< T >::entry
	entry ()

	~entry ()

Public Member Functions inherited from epics::pvAccess::SearchInstance
	POINTER_DEFINITIONS (SearchInstance)

virtual	~SearchInstance ()

virtual pvAccessID	getSearchInstanceID ()=0

virtual const std::string &	getSearchInstanceName ()=0

virtual int32_t &	getUserValue ()=0

virtual void	searchResponse (const ServerGUID &guid, int8_t minorRevision, osiSockAddr *serverAddress)=0

Static Public Attributes
static epics::pvData::Status	channelDestroyed

static epics::pvData::Status	channelDisconnected

Static Public Attributes inherited from epics::pvAccess::Channel
static size_t	num_instances

static const char *	ConnectionStateNames [] = { "NEVER_CONNECTED", "CONNECTED", "DISCONNECTED", "DESTROYED" }

Additional Inherited Members
Public Types inherited from epics::pvAccess::Channel
enum	ConnectionState { NEVER_CONNECTED, CONNECTED, DISCONNECTED, DESTROYED }

typedef ChannelRequester	requester_type

Public Attributes inherited from epics::pvAccess::TransportSender
size_t	bytesTX

size_t	bytesRX

Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Definition at line 35 of file clientContextImpl.h.

Member Function Documentation

virtual void epics::pvAccess::ClientChannelImpl::channelDestroyedOnServer ( )

pure virtual

virtual Transport::shared_pointer epics::pvAccess::ClientChannelImpl::checkAndGetTransport ( )

pure virtual

virtual Transport::shared_pointer epics::pvAccess::ClientChannelImpl::checkDestroyedAndGetTransport ( )

pure virtual

virtual void epics::pvAccess::ClientChannelImpl::connectionCompleted ( pvAccessID sid )

pure virtual

virtual void epics::pvAccess::ClientChannelImpl::createChannelFailed ( )

pure virtual

virtual pvAccessID epics::pvAccess::ClientChannelImpl::getChannelID ( )

pure virtual

virtual ClientContextImpl* epics::pvAccess::ClientChannelImpl::getContext ( )

pure virtual

virtual pvAccessID epics::pvAccess::ClientChannelImpl::getID ( )

pure virtual

virtual pvAccessID epics::pvAccess::ClientChannelImpl::getServerChannelID ( )

pure virtual

virtual Transport::shared_pointer epics::pvAccess::ClientChannelImpl::getTransport ( )

pure virtual

epics::pvAccess::ClientChannelImpl::POINTER_DEFINITIONS ( ClientChannelImpl )

virtual void epics::pvAccess::ClientChannelImpl::registerResponseRequest ( ResponseRequest::shared_pointer const & responseRequest )

pure virtual

virtual void epics::pvAccess::ClientChannelImpl::transportClosed ( )

pure virtual

virtual void epics::pvAccess::ClientChannelImpl::unregisterResponseRequest ( pvAccessID ioid )

pure virtual

Member Data Documentation

Status epics::pvAccess::ClientChannelImpl::channelDestroyed

static

Definition at line 58 of file clientContextImpl.h.

Status epics::pvAccess::ClientChannelImpl::channelDisconnected

static

Definition at line 59 of file clientContextImpl.h.

The documentation for this class was generated from the following files:

modules/pvAccess/src/remoteClient/pv/clientContextImpl.h
modules/pvAccess/src/remoteClient/clientContextImpl.cpp
