camonitor.c File Reference

#include <stdio.h>
#include <epicsStdlib.h>
#include <string.h>
#include "epicsVersion.h"
#include <cadef.h>
#include <epicsGetopt.h>
#include "tool_lib.h"

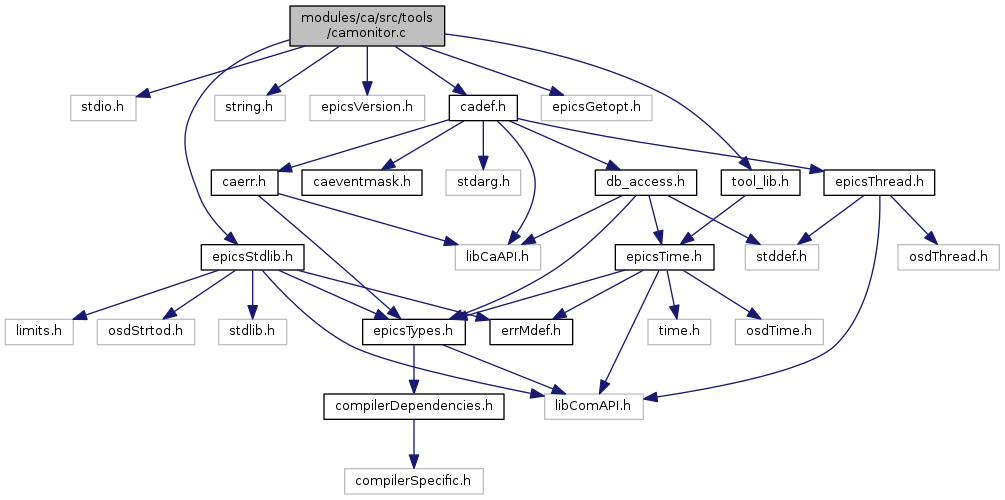

Include dependency graph for camonitor.c:

Go to the source code of this file.

Macros
#define	VALID_DOUBLE_DIGITS   18 /* Max usable precision for a double */

Functions
void	usage (void)
int	main (int argc, char *argv[])

Macro Definition Documentation

#define VALID_DOUBLE_DIGITS   18 /* Max usable precision for a double */

Definition at line 36 of file camonitor.c.

Function Documentation

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 206 of file camonitor.c.

{
    int returncode = 0;
    int n;
    int result;                 /* CA result */
    IntFormatT outType;         /* Output type */

    int opt;                    /* getopt() current option */
    int digits = 0;             /* getopt() no. of float digits */

    int nPvs;                   /* Number of PVs */
    pv* pvs;                    /* Array of PV structures */

    LINE_BUFFER(stdout);        /* Configure stdout buffering */

    while ((opt = getopt(argc, argv, ":nhVm:sSe:f:g:l:#:0:w:t:p:F:")) != -1) {
        switch (opt) {
        case 'h':               /* Print usage */
            usage();
            return 0;
        case 'V':
            printf( "\nEPICS Version %s, CA Protocol version %s\n", EPICS_VERSION_STRING, ca_version() );
            return 0;
        case 'n':               /* Print ENUM as index numbers */
            enumAsNr=1;
            break;
        case 't':               /* Select timestamp source(s) and type */
            tsSrcServer = 0;
            tsSrcClient = 0;
            {
                int i = 0;
                char c;
                while ((c = optarg[i++]))
                    switch (c) {
                    case 's': tsSrcServer = 1; break;
                    case 'c': tsSrcClient = 1; break;
                    case 'n': break;
                    case 'r': tsType = relative; break;
                    case 'i': tsType = incremental; break;
                    case 'I': tsType = incrementalByChan; break;
                    default :
                        fprintf(stderr, "Invalid argument '%c' "
                                "for option '-t' - ignored.\n", c);
                    }
            }
            break;
        case 'w':               /* Set CA timeout value */
            if(epicsScanDouble(optarg, &caTimeout) != 1)
            {
                fprintf(stderr, "'%s' is not a valid timeout value "
                        "- ignored. ('camonitor -h' for help.)\n", optarg);
                caTimeout = DEFAULT_TIMEOUT;
            }
            break;
        case '#':               /* Array count */
            if (sscanf(optarg,"%ld", &reqElems) != 1)
            {
                fprintf(stderr, "'%s' is not a valid array element count "
                        "- ignored. ('camonitor -h' for help.)\n", optarg);
                reqElems = 0;
            }
            break;
        case 'p':               /* CA priority */
            if (sscanf(optarg,"%u", &caPriority) != 1)
            {
                fprintf(stderr, "'%s' is not a valid CA priority "
                        "- ignored. ('camonitor -h' for help.)\n", optarg);
                caPriority = DEFAULT_CA_PRIORITY;
            }
            if (caPriority > CA_PRIORITY_MAX) caPriority = CA_PRIORITY_MAX;
            break;
        case 'm':               /* Select CA event mask */
            eventMask = 0;
            {
                int i = 0;
                char c, err = 0;
                while ((c = optarg[i++]) && !err)
                    switch (c) {
                    case 'v': eventMask |= DBE_VALUE; break;
                    case 'a': eventMask |= DBE_ALARM; break;
                    case 'l': eventMask |= DBE_LOG; break;
                    case 'p': eventMask |= DBE_PROPERTY; break;
                        default :
                            fprintf(stderr, "Invalid argument '%s' "
                                    "for option '-m' - ignored.\n", optarg);
                            eventMask = DBE_VALUE | DBE_ALARM;
                            err = 1;
                    }
            }
            break;
        case 's':               /* Select string dbr for floating type data */
            floatAsString = 1;
            break;
        case 'S':               /* Treat char array as (long) string */
            charArrAsStr = 1;
            break;
        case 'e':               /* Select %e/%f/%g format, using <arg> digits */
        case 'f':
        case 'g':
            if (sscanf(optarg, "%d", &digits) != 1)
                fprintf(stderr,
                        "Invalid precision argument '%s' "
                        "for option '-%c' - ignored.\n", optarg, opt);
            else
            {
                if (digits>=0 && digits<=VALID_DOUBLE_DIGITS)
                    sprintf(dblFormatStr, "%%-.%d%c", digits, opt);
                else
                    fprintf(stderr, "Precision %d for option '-%c' "
                            "out of range - ignored.\n", digits, opt);
            }
            break;
        case 'l':               /* Convert to long and use integer format */
        case '0':               /* Select integer format */
            switch ((char) *optarg) {
            case 'x': outType = hex; break;    /* x print Hex */
            case 'b': outType = bin; break;    /* b print Binary */
            case 'o': outType = oct; break;    /* o print Octal */
            default :
                outType = dec;
                fprintf(stderr, "Invalid argument '%s' "
                        "for option '-%c' - ignored.\n", optarg, opt);
            }
            if (outType != dec) {
              if (opt == '0') outTypeI = outType;
              else            outTypeF = outType;
            }
            break;
        case 'F':               /* Store this for output and tool_lib formatting */
            fieldSeparator = (char) *optarg;
            break;
        case '?':
            fprintf(stderr,
                    "Unrecognized option: '-%c'. ('camonitor -h' for help.)\n",
                    optopt);
            return 1;
        case ':':
            fprintf(stderr,
                    "Option '-%c' requires an argument. ('camonitor -h' for help.)\n",
                    optopt);
            return 1;
        default :
            usage();
            return 1;
        }
    }

    nPvs = argc - optind;       /* Remaining arg list are PV names */

    if (nPvs < 1)
    {
        fprintf(stderr, "No pv name specified. ('camonitor -h' for help.)\n");
        return 1;
    }
                                /* Start up Channel Access */

    result = ca_context_create(ca_disable_preemptive_callback);
    if (result != ECA_NORMAL) {
        fprintf(stderr, "CA error %s occurred while trying "
                "to start channel access.\n", ca_message(result));
        return 1;
    }
                                /* Allocate PV structure array */

    pvs = calloc (nPvs, sizeof(pv));
    if (!pvs)
    {
        fprintf(stderr, "Memory allocation for channel structures failed.\n");
        return 1;
    }
                                /* Connect channels */

                                      /* Copy PV names from command line */
    for (n = 0; optind < argc; n++, optind++)
    {
        pvs[n].name   = argv[optind];
    }
                                      /* Create CA connections */
    returncode = create_pvs(pvs, nPvs, connection_handler);
    if ( returncode ) {
        return returncode;
    }
                                      /* Check for channels that didn't connect */
    ca_pend_event(caTimeout);
    for (n = 0; n < nPvs; n++)
    {
        if (!pvs[n].onceConnected)
            print_time_val_sts(&pvs[n], reqElems);
    }

                                /* Read and print data forever */
    ca_pend_event(0);

                                /* Shut down Channel Access */
    ca_context_destroy();

    return result;
}

void usage

(

void

)

Definition at line 44 of file camonitor.c.

{
    fprintf (stderr, "\nUsage: camonitor [options] <PV name> ...\n"
    "\n"
    "  -h:       Help: Print this message\n"
    "  -V:       Version: Show EPICS and CA versions\n"
    "Channel Access options:\n"
    "  -w <sec>: Wait time, specifies CA timeout, default is %f second(s)\n"
    "  -m <msk>: Specify CA event mask to use.  <msk> is any combination of\n"
    "            'v' (value), 'a' (alarm), 'l' (log/archive), 'p' (property).\n"
    "            Default event mask is 'va'\n"
    "  -p <pri>: CA priority (0-%u, default 0=lowest)\n"
    "Timestamps:\n"
    "  Default:  Print absolute timestamps (as reported by CA server)\n"
    "  -t <key>: Specify timestamp source(s) and type, with <key> containing\n"
    "            's' = CA server (remote) timestamps\n"
    "            'c' = CA client (local) timestamps (shown in '()'s)\n"
    "            'n' = no timestamps\n"
    "            'r' = relative timestamps (time elapsed since start of program)\n"
    "            'i' = incremental timestamps (time elapsed since last update)\n"
    "            'I' = incremental timestamps (time since last update, by channel)\n"
    "            'r', 'i' or 'I' require 's' or 'c' to select the time source\n"
    "Enum format:\n"
    "  -n:       Print DBF_ENUM values as number (default is enum string)\n"
    "Array values: Print number of elements, then list of values\n"
    "  Default:  Request and print all elements (dynamic arrays supported)\n"
    "  -# <num>: Request and print up to <num> elements\n"
    "  -S:       Print arrays of char as a string (long string)\n"
    "Floating point format:\n"
    "  Default:  Use %%g format\n"
    "  -e <num>: Use %%e format, with a precision of <num> digits\n"
    "  -f <num>: Use %%f format, with a precision of <num> digits\n"
    "  -g <num>: Use %%g format, with a precision of <num> digits\n"
    "  -s:       Get value as string (honors server-side precision)\n"
    "  -lx:      Round to long integer and print as hex number\n"
    "  -lo:      Round to long integer and print as octal number\n"
    "  -lb:      Round to long integer and print as binary number\n"
    "Integer number format:\n"
    "  Default:  Print as decimal number\n"
    "  -0x:      Print as hex number\n"
    "  -0o:      Print as octal number\n"
    "  -0b:      Print as binary number\n"
    "Alternate output field separator:\n"
    "  -F <ofs>: Use <ofs> to separate fields in output\n"
    "\n"
    "Example: camonitor -f8 my_channel another_channel\n"
    "  (doubles are printed as %%f with precision of 8)\n\n"
             , DEFAULT_TIMEOUT, CA_PRIORITY_MAX);
}
