timerQueuePassive Class Reference

#include "timerPrivate.h"

Inheritance diagram for timerQueuePassive:

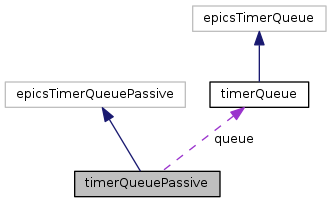

Collaboration diagram for timerQueuePassive:

Public Member Functions
	timerQueuePassive (epicsTimerQueueNotify &)
epicsTimer &	createTimer ()
epicsTimerForC &	createTimerForC (epicsTimerCallback pCallback, void *pArg)
void	show (unsigned int level) const
double	process (const epicsTime &currentTime)

Protected Member Functions
	~timerQueuePassive ()
epicsTimerQueue &	getEpicsTimerQueue ()
	timerQueuePassive (const timerQueuePassive &)
timerQueuePassive &	operator= (const timerQueuePassive &)

Protected Attributes
timerQueue	queue

Detailed Description

Definition at line 180 of file timerPrivate.h.

Constructor & Destructor Documentation

timerQueuePassive::timerQueuePassive

(

epicsTimerQueueNotify &

notifyIn

)

Definition at line 35 of file timerQueuePassive.cpp.

                                                                       :
    queue ( notifyIn ) {}

timerQueuePassive::~timerQueuePassive ( )

protected

Definition at line 38 of file timerQueuePassive.cpp.

{}

timerQueuePassive::timerQueuePassive ( const timerQueuePassive &  )

protected

Member Function Documentation

epicsTimer & timerQueuePassive::createTimer

(

)

Definition at line 40 of file timerQueuePassive.cpp.

{
    return this->queue.createTimer ();
}

epicsTimerForC & timerQueuePassive::createTimerForC	(	epicsTimerCallback	pCallback,
		void *	pArg
	)

Definition at line 45 of file timerQueuePassive.cpp.

{
    return this->queue.createTimerForC ( pCallback, pArg );
}

epicsTimerQueue & timerQueuePassive::getEpicsTimerQueue ( )

protected

Definition at line 64 of file timerQueuePassive.cpp.

{
    return static_cast < epicsTimerQueue &> ( * this );
}

timerQueuePassive& timerQueuePassive::operator= ( const timerQueuePassive &  )

protected

double timerQueuePassive::process

(

const epicsTime &

currentTime

)

Definition at line 50 of file timerQueuePassive.cpp.

{
    return this->queue.process ( currentTime );
}

void timerQueuePassive::show

(

unsigned int

level

)

const

Definition at line 55 of file timerQueuePassive.cpp.

{
    printf ( "EPICS non-threaded timer queue at %p\n",
        static_cast <const void *> ( this ) );
    if ( level >=1u ) {
        this->queue.show ( level - 1u );
    }
}

Member Data Documentation

timerQueue timerQueuePassive::queue

protected

Definition at line 188 of file timerPrivate.h.

---

The documentation for this class was generated from the following files:

• modules/libcom/src/timer/timerPrivate.h
• modules/libcom/src/timer/timerQueuePassive.cpp
