epicsTimerForC Struct Reference

#include "timerPrivate.h"

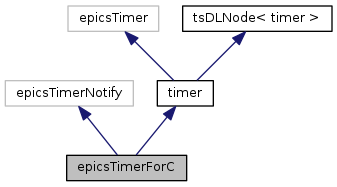

Inheritance diagram for epicsTimerForC:

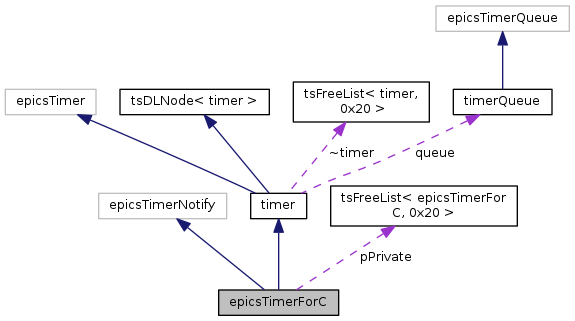

Collaboration diagram for epicsTimerForC:

Public Member Functions
void	destroy ()
Public Member Functions inherited from timer
void	destroy ()
void	start (class epicsTimerNotify &, const epicsTime &)
void	start (class epicsTimerNotify &, double delaySeconds)
void	cancel ()
expireInfo	getExpireInfo () const
void	show (unsigned int level) const
void *	operator new (size_t size, tsFreeList< timer, 0x20 > &)
Public Member Functions inherited from tsDLNode< timer >
	tsDLNode ()
	tsDLNode (const tsDLNode< timer > &)
const tsDLNode< timer > &	operator= (const tsDLNode< timer > &)

Protected Member Functions
	epicsTimerForC (timerQueue &, epicsTimerCallback, void *pPrivateIn)
	~epicsTimerForC ()
void *	operator new (size_t size, tsFreeList< epicsTimerForC, 0x20 > &)
expireStatus	expire (const epicsTime &currentTime)
epicsTimerForC &	operator= (const epicsTimerForC &)
void	operator delete (void *)

Protected Attributes
epicsPlacementDeleteOperator((void *, tsFreeList< epicsTimerForC, 0x20 > &)) private void	pPrivate )

Friends
class	timerQueue

Additional Inherited Members
Public Attributes inherited from timer
epicsPlacementDeleteOperator((void *, tsFreeList< timer, 0x20 > &)) protecte	~timer )()
timerQueue &	queue

Detailed Description

Definition at line 64 of file timerPrivate.h.

Constructor & Destructor Documentation

epicsTimerForC::epicsTimerForC ( timerQueue &  queue, epicsTimerCallback  pCBIn, void *  pPrivateIn  )

protected

Definition at line 42 of file epicsTimer.cpp.

                                                                                               :
    timer ( queue ), pCallBack ( pCBIn ), pPrivate ( pPrivateIn )
{
}

epicsTimerForC::~epicsTimerForC ( )

protected

Definition at line 47 of file epicsTimer.cpp.

{
}

Member Function Documentation

void epicsTimerForC::destroy

(

)

Definition at line 51 of file epicsTimer.cpp.

{
    timerQueue & queueTmp = this->queue;
    this->~epicsTimerForC ();
    queueTmp.timerForCFreeList.release ( this );
}

epicsTimerNotify::expireStatus epicsTimerForC::expire ( const epicsTime &  currentTime )

protected

Definition at line 58 of file epicsTimer.cpp.

{
    ( *this->pCallBack ) ( this->pPrivate );
    return noRestart;
}

void epicsTimerForC::operator delete ( void *  )

protected

Definition at line 232 of file timer.cpp.

{
    // Visual C++ .net appears to require operator delete if
    // placement operator delete is defined? I smell a ms rat
    // because if I declare placement new and delete, but
    // comment out the placement delete definition there are
    // no undefined symbols.
    errlogPrintf ( "%s:%d this compiler is confused about placement delete - memory was probably leaked",
        __FILE__, __LINE__ );
}

void * epicsTimerForC::operator new ( size_t  size, tsFreeList< epicsTimerForC, 0x20 > &  freeList  )

inlineprotected

Definition at line 252 of file timerPrivate.h.

{
    return freeList.allocate ( size );
}

epicsTimerForC& epicsTimerForC::operator= ( const epicsTimerForC &  )

protected

Friends And Related Function Documentation

friend class timerQueue

friend

Definition at line 83 of file timerPrivate.h.

Member Data Documentation

epicsPlacementDeleteOperator (( void *, tsFreeList < epicsTimerForC, 0x20 > & )) private void epicsTimerForC::pPrivate)

protected

Definition at line 71 of file timerPrivate.h.

---

The documentation for this struct was generated from the following files:

• modules/libcom/src/timer/timerPrivate.h
• modules/libcom/src/timer/epicsTimer.cpp
• modules/libcom/src/timer/timer.cpp
