epics::pvAccess::ChannelPutGet Class Reference

#include "pvAccess.h"

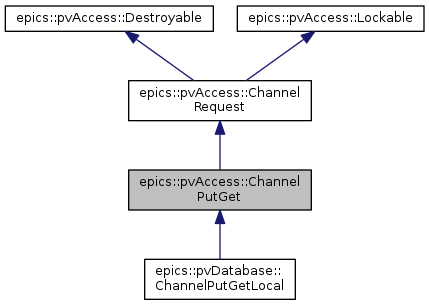

Inheritance diagram for epics::pvAccess::ChannelPutGet:

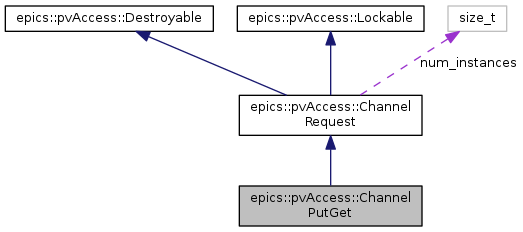

Collaboration diagram for epics::pvAccess::ChannelPutGet:

Public Types
typedef ChannelPutGetRequester	requester_type

Public Member Functions
	POINTER_DEFINITIONS (ChannelPutGet)
virtual	~ChannelPutGet ()
virtual void	putGet (epics::pvData::PVStructure::shared_pointer const &pvPutStructure, epics::pvData::BitSet::shared_pointer const &putBitSet)=0
virtual void	getPut ()=0
virtual void	getGet ()=0
Public Member Functions inherited from epics::pvAccess::ChannelRequest
	POINTER_DEFINITIONS (ChannelRequest)
	ChannelRequest ()
virtual	~ChannelRequest ()
virtual std::tr1::shared_ptr< Channel >	getChannel ()=0
virtual void	cancel ()=0
virtual void	lastRequest ()=0
Public Member Functions inherited from epics::pvAccess::Destroyable
	POINTER_DEFINITIONS (Destroyable)
virtual void	destroy ()=0
Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)
virtual	~Lockable ()
virtual void	lock ()
virtual void	unlock ()

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::ChannelRequest
static size_t	num_instances
Protected Member Functions inherited from epics::pvAccess::Destroyable
virtual	~Destroyable ()

Detailed Description

Channel access put/get request. The put is performed first, followed optionally by a process request, and then by a get request.

Definition at line 684 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelPutGetRequester epics::pvAccess::ChannelPutGet::requester_type

Definition at line 687 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelPutGet::~ChannelPutGet ( )

inlinevirtual

Definition at line 689 of file pvAccess.h.

{}

Member Function Documentation

virtual void epics::pvAccess::ChannelPutGet::getGet ( )

pure virtual

Get the get PVStructure. The record will not be processed. Completion status is reported by calling ChannelPutGetRequester.getGetDone() callback.

Implemented in epics::pvDatabase::ChannelPutGetLocal.

virtual void epics::pvAccess::ChannelPutGet::getPut ( )

pure virtual

Get the put PVStructure. The record will not be processed. Completion status is reported by calling ChannelPutGetRequester.getPutDone() callback.

Implemented in epics::pvDatabase::ChannelPutGetLocal.

epics::pvAccess::ChannelPutGet::POINTER_DEFINITIONS

(

ChannelPutGet

)

virtual void epics::pvAccess::ChannelPutGet::putGet ( epics::pvData::PVStructure::shared_pointer const &  pvPutStructure, epics::pvData::BitSet::shared_pointer const &  putBitSet  )

pure virtual

Issue a put/get request. If process was requested when the ChannelPutGet was created this is a put, process, get. Completion status is reported by calling ChannelPutGetRequester.putGetDone() callback.

Parameters

pvPutStructure	The PVStructure that holds the putData.
putBitSet	putPVStructure bit-set (selects what fields to put).

---

The documentation for this class was generated from the following file:

• modules/pvAccess/src/client/pv/pvAccess.h
