epics::pvAccess::ChannelPutGetRequester Class Reference

#include "pvAccess.h"

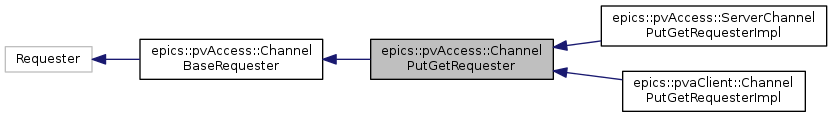

Inheritance diagram for epics::pvAccess::ChannelPutGetRequester:

Collaboration diagram for epics::pvAccess::ChannelPutGetRequester:

Public Types
typedef ChannelPutGet	operation_type

Public Member Functions
	POINTER_DEFINITIONS (ChannelPutGetRequester)
virtual	~ChannelPutGetRequester ()
virtual void	channelPutGetConnect (const epics::pvData::Status &status, ChannelPutGet::shared_pointer const &channelPutGet, epics::pvData::Structure::const_shared_pointer const &putStructure, epics::pvData::Structure::const_shared_pointer const &getStructure)=0
virtual void	putGetDone (const epics::pvData::Status &status, ChannelPutGet::shared_pointer const &channelPutGet, epics::pvData::PVStructure::shared_pointer const &pvGetStructure, epics::pvData::BitSet::shared_pointer const &getBitSet)=0
virtual void	getPutDone (const epics::pvData::Status &status, ChannelPutGet::shared_pointer const &channelPutGet, epics::pvData::PVStructure::shared_pointer const &pvPutStructure, epics::pvData::BitSet::shared_pointer const &putBitSet)=0
virtual void	getGetDone (const epics::pvData::Status &status, ChannelPutGet::shared_pointer const &channelPutGet, epics::pvData::PVStructure::shared_pointer const &pvGetStructure, epics::pvData::BitSet::shared_pointer const &getBitSet)=0
Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)
	ChannelBaseRequester ()
virtual	~ChannelBaseRequester ()
virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Detailed Description

Requester for ChannelPutGet.

Definition at line 718 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelPutGet epics::pvAccess::ChannelPutGetRequester::operation_type

Definition at line 722 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelPutGetRequester::~ChannelPutGetRequester ( )

inlinevirtual

Definition at line 724 of file pvAccess.h.

{}

Member Function Documentation

virtual void epics::pvAccess::ChannelPutGetRequester::channelPutGetConnect ( const epics::pvData::Status &  status, ChannelPutGet::shared_pointer const &  channelPutGet, epics::pvData::Structure::const_shared_pointer const &  putStructure, epics::pvData::Structure::const_shared_pointer const &  getStructure  )

pure virtual

The client and server have both completed the createChannelPutGet request.

Parameters

status	Completion status.
channelPutGet	The channelPutGet interface or null if the request failed.
putStructure	The put structure introspection data or nullptr if the request failed.
getStructure	The get structure introspection data or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelPutGetRequesterImpl.

virtual void epics::pvAccess::ChannelPutGetRequester::getGetDone ( const epics::pvData::Status &  status, ChannelPutGet::shared_pointer const &  channelPutGet, epics::pvData::PVStructure::shared_pointer const &  pvGetStructure, epics::pvData::BitSet::shared_pointer const &  getBitSet  )

pure virtual

The getGet request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelPutGet	The channelPutGet interface.
pvGetStructure	The PVStructure that holds the getData or nullptr if the request failed.
getBitSet	getPVStructure changed bit-set or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelPutGetRequesterImpl.

virtual void epics::pvAccess::ChannelPutGetRequester::getPutDone ( const epics::pvData::Status &  status, ChannelPutGet::shared_pointer const &  channelPutGet, epics::pvData::PVStructure::shared_pointer const &  pvPutStructure, epics::pvData::BitSet::shared_pointer const &  putBitSet  )

pure virtual

The getPut request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelPutGet	The channelPutGet interface.
pvPutStructure	The PVStructure that holds the putData or nullptr if the request failed.
putBitSet	putPVStructure changed bit-set or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelPutGetRequesterImpl.

epics::pvAccess::ChannelPutGetRequester::POINTER_DEFINITIONS

(

ChannelPutGetRequester

)

virtual void epics::pvAccess::ChannelPutGetRequester::putGetDone ( const epics::pvData::Status &  status, ChannelPutGet::shared_pointer const &  channelPutGet, epics::pvData::PVStructure::shared_pointer const &  pvGetStructure, epics::pvData::BitSet::shared_pointer const &  getBitSet  )

pure virtual

The putGet request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelPutGet	The channelPutGet interface.
pvGetStructure	The PVStructure that holds the getData or nullptr if the request failed.
getBitSet	getPVStructure changed bit-set or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelPutGetRequesterImpl.

---

The documentation for this class was generated from the following file:

• modules/pvAccess/src/client/pv/pvAccess.h
