cainfo.c File Reference

#include <stdio.h>
#include <epicsStdlib.h>
#include "epicsVersion.h"
#include <cadef.h>
#include <epicsGetopt.h>
#include "tool_lib.h"

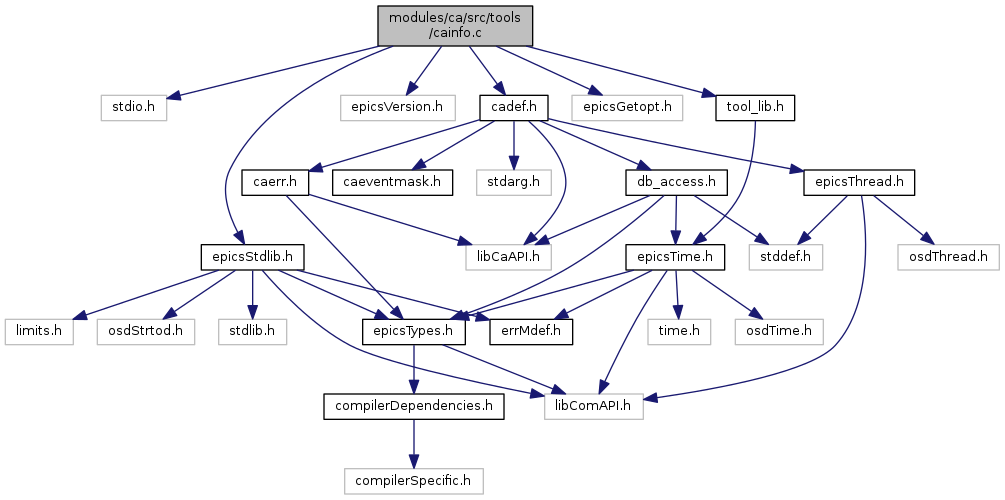

Include dependency graph for cainfo.c:

Go to the source code of this file.

Functions
void	usage (void)
int	cainfo (pv *pvs, int nPvs)
int	main (int argc, char *argv[])

Function Documentation

int cainfo	(	pv *	pvs,
		int	nPvs
	)

Definition at line 65 of file cainfo.c.

{
    int n;
    long  dbfType;
    long  dbrType;
    unsigned long nElems;
    enum channel_state state;
    char *stateStrings[] = {
        "never connected", "previously connected", "connected", "closed" };
    char *boolStrings[] = { "no ", "" };

    if (statLevel) {
        ca_client_status(statLevel);

    } else {

        for (n = 0; n < nPvs; n++) {

                                /* Print the status data */
                                /* --------------------- */

            state   = ca_state(pvs[n].chid);
            nElems  = ca_element_count(pvs[n].chid);
            dbfType = ca_field_type(pvs[n].chid);
            dbrType = dbf_type_to_DBR(dbfType);

            printf("%s\n"
                   "    State:            %s\n"
                   "    Host:             %s\n"
                   "    Access:           %sread, %swrite\n"
                   "    Native data type: %s\n"
                   "    Request type:     %s\n"
                   "    Element count:    %lu\n"
                   , pvs[n].name,
                   stateStrings[state],
                   ca_host_name(pvs[n].chid),
                   boolStrings[ca_read_access(pvs[n].chid)],
                   boolStrings[ca_write_access(pvs[n].chid)],
                   dbf_type_to_text(dbfType),
                   dbr_type_to_text(dbrType),
                   nElems
                );
        }
    }

    return 0;
}

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 131 of file cainfo.c.

{
    int n;
    int result;                 /* CA result */

    int opt;                    /* getopt() current option */

    int nPvs;                   /* Number of PVs */
    pv* pvs;                    /* Array of PV structures */

    LINE_BUFFER(stdout);        /* Configure stdout buffering */

    while ((opt = getopt(argc, argv, ":nhVw:s:p:")) != -1) {
        switch (opt) {
        case 'h':               /* Print usage */
            usage();
            return 0;
        case 'V':
            printf( "\nEPICS Version %s, CA Protocol version %s\n", EPICS_VERSION_STRING, ca_version() );
            return 0;
        case 'w':               /* Set CA timeout value */
            if(epicsScanDouble(optarg, &caTimeout) != 1)
            {
                fprintf(stderr, "'%s' is not a valid timeout value "
                        "- ignored. ('cainfo -h' for help.)\n", optarg);
                caTimeout = DEFAULT_TIMEOUT;
            }
            break;
        case 's':               /* ca_client_status interest level */
            if (sscanf(optarg,"%du", &statLevel) != 1)
            {
                fprintf(stderr, "'%s' is not a valid interest level "
                        "- ignored. ('cainfo -h' for help.)\n", optarg);
                statLevel = 0;
            }
            break;
        case 'p':               /* CA priority */
            if (sscanf(optarg,"%u", &caPriority) != 1)
            {
                fprintf(stderr, "'%s' is not a valid CA priority "
                        "- ignored. ('cainfo -h' for help.)\n", optarg);
                caPriority = DEFAULT_CA_PRIORITY;
            }
            if (caPriority > CA_PRIORITY_MAX) caPriority = CA_PRIORITY_MAX;
            break;
        case '?':
            fprintf(stderr,
                    "Unrecognized option: '-%c'. ('cainfo -h' for help.)\n",
                    optopt);
            return 1;
        case ':':
            fprintf(stderr,
                    "Option '-%c' requires an argument. ('cainfo -h' for help.)\n",
                    optopt);
            return 1;
        default :
            usage();
            return 1;
        }
    }

    nPvs = argc - optind;       /* Remaining arg list are PV names */

    if (!statLevel && nPvs < 1)
    {
        fprintf(stderr, "No pv name specified. ('cainfo -h' for help.)\n");
        return 1;
    }
                                /* Start up Channel Access */

    result = ca_context_create(ca_disable_preemptive_callback);
    if (result != ECA_NORMAL) {
        fprintf(stderr, "CA error %s occurred while trying "
                "to start channel access.\n", ca_message(result));
        return 1;
    }
                                /* Allocate PV structure array */

    pvs = calloc (nPvs, sizeof(pv));
    if (!pvs)
    {
        fprintf(stderr, "Memory allocation for channel structures failed.\n");
        return 1;
    }
                                /* Connect channels */

    for (n = 0; optind < argc; n++, optind++)
        pvs[n].name = argv[optind] ;       /* Copy PV names from command line */

    result = connect_pvs(pvs, nPvs);

                                /* Print data */
    if (!result)
        result = cainfo(pvs, nPvs);

                                /* Shut down Channel Access */
    ca_context_destroy();

    return result;
}

void usage

(

void

)

Definition at line 36 of file cainfo.c.

{
    fprintf (stderr, "\nUsage: cainfo [options] <PV name> ...\n\n"
    "  -h: Help: Print this message\n"
    "  -V: Version: Show EPICS and CA versions\n"
    "Channel Access options:\n"
    "  -w <sec>:   Wait time, specifies CA timeout, default is %f second(s)\n"
    "  -s <level>: Call ca_client_status with the specified interest level\n"
    "  -p <prio>:  CA priority (0-%u, default 0=lowest)\n"
    "\nExample: cainfo my_channel another_channel\n\n"
             , DEFAULT_TIMEOUT, CA_PRIORITY_MAX);
    fprintf (stderr, "\nEPICS Version %s, CA Protocol version %s\n", EPICS_VERSION_STRING, ca_version() );
}
