epics::pvaClient::ChannelProcessRequesterImpl Class Reference

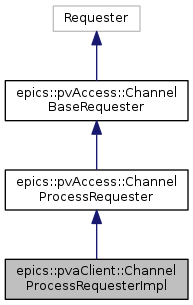

Inheritance diagram for epics::pvaClient::ChannelProcessRequesterImpl:

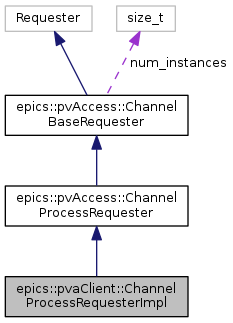

Collaboration diagram for epics::pvaClient::ChannelProcessRequesterImpl:

Public Member Functions
	ChannelProcessRequesterImpl (PvaClientProcessPtr const &pvaClientProcess, PvaClientPtr const &pvaClient)
virtual	~ChannelProcessRequesterImpl ()
virtual std::string	getRequesterName ()
virtual void	message (std::string const &message, epics::pvData::MessageType messageType)
virtual void	channelProcessConnect (const Status &status, ChannelProcess::shared_pointer const &channelProcess)
virtual void	processDone (const Status &status, ChannelProcess::shared_pointer const &ChannelProcess)
Public Member Functions inherited from epics::pvAccess::ChannelProcessRequester
	POINTER_DEFINITIONS (ChannelProcessRequester)
virtual	~ChannelProcessRequester ()
Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)
	ChannelBaseRequester ()
virtual	~ChannelBaseRequester ()
virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Public Types inherited from epics::pvAccess::ChannelProcessRequester
typedef ChannelProcess	operation_type
Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Detailed Description

Definition at line 24 of file pvaClientProcess.cpp.

Constructor & Destructor Documentation

epics::pvaClient::ChannelProcessRequesterImpl::ChannelProcessRequesterImpl ( PvaClientProcessPtr const &  pvaClientProcess, PvaClientPtr const &  pvaClient  )

inline

Definition at line 29 of file pvaClientProcess.cpp.

    : pvaClientProcess(pvaClientProcess),
      pvaClient(pvaClient)
    {}

virtual epics::pvaClient::ChannelProcessRequesterImpl::~ChannelProcessRequesterImpl ( )

inlinevirtual

Definition at line 35 of file pvaClientProcess.cpp.

                                           {
        if(PvaClient::getDebug()) std::cout << "~ChannelProcessRequesterImpl" << std::endl;
    }

Member Function Documentation

virtual void epics::pvaClient::ChannelProcessRequesterImpl::channelProcessConnect ( const Status &  status, ChannelProcess::shared_pointer const &  channelProcess  )

inlinevirtual

The client and server have both completed the createChannelProcess request.

Parameters

status	Completion status.
channelProcess	The channelProcess interface or nullptr if the client could not become the record processor.

Implements epics::pvAccess::ChannelProcessRequester.

Definition at line 51 of file pvaClientProcess.cpp.

    {
        PvaClientProcessPtr clientProcess(pvaClientProcess.lock());
        if(!clientProcess) return;
        clientProcess->channelProcessConnect(status,channelProcess);
    }

virtual std::string epics::pvaClient::ChannelProcessRequesterImpl::getRequesterName ( )

inlinevirtual

Definition at line 39 of file pvaClientProcess.cpp.

                                         {
        PvaClientProcessPtr clientProcess(pvaClientProcess.lock());
        if(!clientProcess) return string("clientProcess is null");
        return clientProcess->getRequesterName();
    }

virtual void epics::pvaClient::ChannelProcessRequesterImpl::message ( std::string const &  message, epics::pvData::MessageType  messageType  )

inlinevirtual

Definition at line 45 of file pvaClientProcess.cpp.

                                                                                        {
        PvaClientProcessPtr clientProcess(pvaClientProcess.lock());
        if(!clientProcess) return;
        clientProcess->message(message,messageType);
    }

virtual void epics::pvaClient::ChannelProcessRequesterImpl::processDone ( const Status &  status, ChannelProcess::shared_pointer const &  channelProcess  )

inlinevirtual

The process request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelProcess	The channelProcess interface.

Implements epics::pvAccess::ChannelProcessRequester.

Definition at line 60 of file pvaClientProcess.cpp.

    {
        PvaClientProcessPtr clientProcess(pvaClientProcess.lock());
        if(!clientProcess) return;
        clientProcess->processDone(status,ChannelProcess);
    }

---

The documentation for this class was generated from the following file:

• modules/pvaClient/src/pvaClientProcess.cpp
