epics::pvAccess::ServerGetHandler Class Reference

#include "responseHandlers.h"

Inheritance diagram for epics::pvAccess::ServerGetHandler:

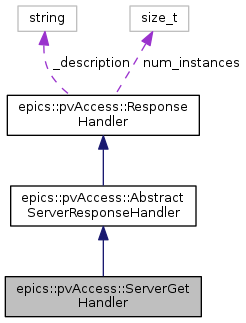

Collaboration diagram for epics::pvAccess::ServerGetHandler:

Public Member Functions
	ServerGetHandler (ServerContextImpl::shared_pointer const &context)
virtual	~ServerGetHandler ()
virtual void	handleResponse (osiSockAddr *responseFrom, Transport::shared_pointer const &transport, epics::pvData::int8 version, epics::pvData::int8 command, std::size_t payloadSize, epics::pvData::ByteBuffer *payloadBuffer) OVERRIDE FINAL
Public Member Functions inherited from epics::pvAccess::AbstractServerResponseHandler
	AbstractServerResponseHandler (ServerContextImpl::shared_pointer const &context, std::string description)
virtual	~AbstractServerResponseHandler ()
Public Member Functions inherited from epics::pvAccess::ResponseHandler
	POINTER_DEFINITIONS (ResponseHandler)
	ResponseHandler (Context *context, const std::string &description)
virtual	~ResponseHandler ()

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::ResponseHandler
static size_t	num_instances
Protected Attributes inherited from epics::pvAccess::AbstractServerResponseHandler
ServerContextImpl::shared_pointer	_context
Protected Attributes inherited from epics::pvAccess::ResponseHandler
std::string	_description
epics::pvData::int32	_debugLevel

Detailed Description

Get request handler.

Definition at line 273 of file responseHandlers.h.

Constructor & Destructor Documentation

epics::pvAccess::ServerGetHandler::ServerGetHandler ( ServerContextImpl::shared_pointer const &  context )

inline

Definition at line 276 of file responseHandlers.h.

                                                                      :
        AbstractServerResponseHandler(context, "Get request") {
    }

virtual epics::pvAccess::ServerGetHandler::~ServerGetHandler ( )

inlinevirtual

Definition at line 279 of file responseHandlers.h.

{}

Member Function Documentation

void epics::pvAccess::ServerGetHandler::handleResponse ( osiSockAddr *  responseFrom, Transport::shared_pointer const &  transport, epics::pvData::int8  version, epics::pvData::int8  command, std::size_t  payloadSize, epics::pvData::ByteBuffer *  payloadBuffer  )

virtual

Handle response.

Parameters

[in]	responseFrom	remote address of the responder, 0 if unknown.
[in]	transport	response source transport.
[in]	version	message version.
[in]	payloadSize	size of this message data available in the payloadBuffer.
[in]	payloadBuffer	message payload data. Note that this might not be the only message in the buffer. Code must not manipulate buffer.

Reimplemented from epics::pvAccess::ResponseHandler.

Definition at line 1009 of file responseHandlers.cpp.

{
    AbstractServerResponseHandler::handleResponse(responseFrom,
            transport, version, command, payloadSize, payloadBuffer);

    // NOTE: we do not explicitly check if transport is OK
    detail::BlockingServerTCPTransportCodec* casTransport(static_cast<detail::BlockingServerTCPTransportCodec*>(transport.get()));

    transport->ensureData(2*sizeof(int32)/sizeof(int8)+1);
    const pvAccessID sid = payloadBuffer->getInt();
    const pvAccessID ioid = payloadBuffer->getInt();

    // mode
    const int8 qosCode = payloadBuffer->getByte();

    ServerChannel::shared_pointer channel = casTransport->getChannel(sid);
    if (channel.get() == NULL)
    {
        BaseChannelRequester::sendFailureMessage((int8)CMD_GET, transport, ioid, qosCode, BaseChannelRequester::badCIDStatus);
        return;
    }

    const bool init = (QOS_INIT & qosCode) != 0;
    if (init)
    {
        // pvRequest
        PVStructure::shared_pointer pvRequest(SerializationHelper::deserializePVRequest(payloadBuffer, transport.get()));

        // create...
        ServerChannelGetRequesterImpl::create(_context, channel, ioid, transport, pvRequest);
    }
    else
    {
        const bool lastRequest = (QOS_DESTROY & qosCode) != 0;

        ServerChannelGetRequesterImpl::shared_pointer request = static_pointer_cast<ServerChannelGetRequesterImpl>(channel->getRequest(ioid));
        if (!request)
        {
            BaseChannelRequester::sendFailureMessage((int8)CMD_GET, transport, ioid, qosCode, BaseChannelRequester::badIOIDStatus);
            return;
        }
        atomic::add(request->bytesRX, payloadSize);

        if (!request->startRequest(qosCode))
        {
            BaseChannelRequester::sendFailureMessage((int8)CMD_GET, transport, ioid, qosCode, BaseChannelRequester::otherRequestPendingStatus);
            return;
        }

        ChannelGet::shared_pointer channelGet = request->getChannelGet();
        if (lastRequest)
            channelGet->lastRequest();
        channelGet->get();
    }
}

---

The documentation for this class was generated from the following files:

• modules/pvAccess/src/server/pv/responseHandlers.h
• modules/pvAccess/src/server/responseHandlers.cpp
