caEventRate.cpp File Reference

#include <stdio.h>
#include <limits.h>
#include <math.h>
#include "cadef.h"
#include "dbDefs.h"
#include "epicsTime.h"
#include "errlog.h"

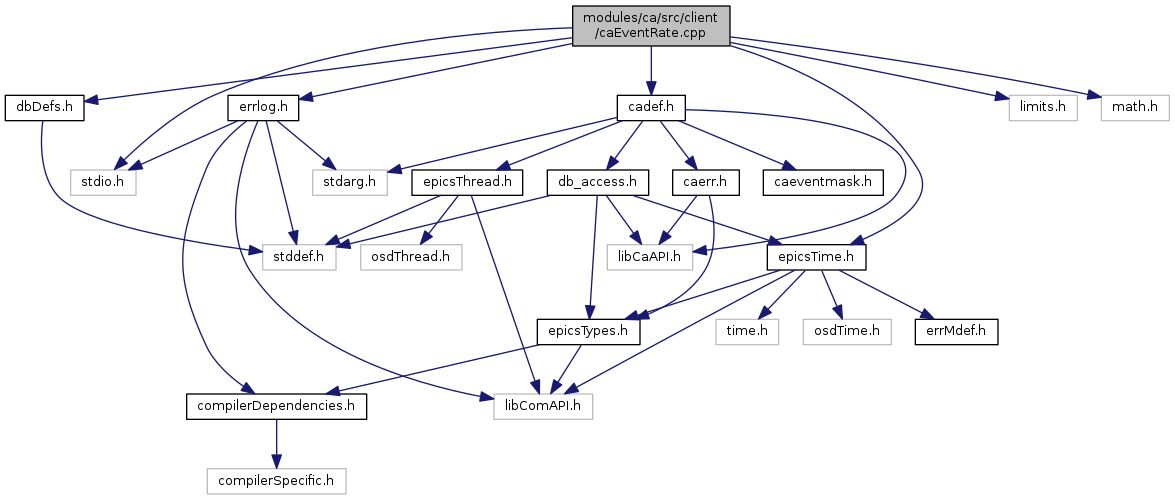

Include dependency graph for caEventRate.cpp:

Go to the source code of this file.

Functions
void	eventCallBack (struct event_handler_args args)
void	caEventRate (const char *pName, unsigned count)

Function Documentation

void caEventRate	(	const char *	pName,
		unsigned	count
	)

Definition at line 31 of file caEventRate.cpp.

{
    static const double initialSamplePeriod = 1.0;
    static const double maxSamplePeriod = 60.0 * 5.0;
    unsigned eventCount = 0u;

    chid * pChidTable = new chid [ count ];

    {
        printf ( "Connecting to CA Channel \"%s\" %u times.",
                    pName, count );
        fflush ( stdout );

        epicsTime begin = epicsTime::getCurrent ();
        for ( unsigned i = 0u; i < count; i++ ) {
            int status = ca_search ( pName,  & pChidTable[i] );
            SEVCHK ( status, NULL );
        }

        int status = ca_pend_io ( 10000.0 );
        if ( status != ECA_NORMAL ) {
            fprintf ( stderr, " not found.\n" );
            return;
        }
        epicsTime end = epicsTime::getCurrent ();

        printf ( " done(%f sec).\n", end - begin );
    }

    {
        printf ( "Subscribing %u times.", count );
        fflush ( stdout );

        epicsTime begin = epicsTime::getCurrent ();
        for ( unsigned i = 0u; i < count; i++ ) {
            int addEventStatus = ca_add_event ( DBR_FLOAT,
                pChidTable[i], eventCallBack, &eventCount, NULL);
            SEVCHK ( addEventStatus, __FILE__ );
        }

        int status = ca_flush_io ();
        SEVCHK ( status, __FILE__ );

        epicsTime end = epicsTime::getCurrent ();

        printf ( " done(%f sec).\n", end - begin );
    }

    {
        printf ( "Waiting for initial value events." );
        fflush ( stdout );

        // let the first one go by
        epicsTime begin = epicsTime::getCurrent ();
        while ( eventCount < count ) {
            int status = ca_pend_event ( 0.01 );
            if ( status != ECA_TIMEOUT ) {
                SEVCHK ( status, NULL );
            }
        }
        epicsTime end = epicsTime::getCurrent ();

        printf ( " done(%f sec).\n", end - begin );
    }

    double samplePeriod = initialSamplePeriod;
    double X = 0.0;
    double XX = 0.0;
    unsigned N = 0u;
    while ( true ) {
        unsigned nEvents, lastEventCount, curEventCount;

        epicsTime beginPend = epicsTime::getCurrent ();
        lastEventCount = eventCount;
        int status = ca_pend_event ( samplePeriod );
        curEventCount = eventCount;
        epicsTime endPend = epicsTime::getCurrent ();
        if ( status != ECA_TIMEOUT ) {
            SEVCHK ( status, NULL );
        }

        if ( curEventCount >= lastEventCount ) {
            nEvents = curEventCount - lastEventCount;
        }
        else {
            nEvents = ( UINT_MAX - lastEventCount ) + curEventCount + 1u;
        }

        N++;

        double period = endPend - beginPend;
        double Hz = nEvents / period;

        X += Hz;
        XX += Hz * Hz;

        double mean = X / N;
        double stdDev = sqrt ( XX / N - mean * mean );

        printf ( "CA Event Rate (Hz): current %g mean %g std dev %g\n",
            Hz, mean, stdDev );

        if ( samplePeriod < maxSamplePeriod ) {
            samplePeriod += samplePeriod;
        }
    }
}

void eventCallBack

(

struct event_handler_args

args

)

Definition at line 22 of file caEventRate.cpp.

{
    unsigned *pCount = static_cast < unsigned * > ( args.usr );
    (*pCount)++;
}
