pvif.h File Reference

#include <map>
#include <asLib.h>
#include <dbAccess.h>
#include <dbChannel.h>
#include <dbStaticLib.h>
#include <dbLock.h>
#include <dbEvent.h>
#include <epicsVersion.h>
#include <pv/status.h>
#include <pv/bitSet.h>
#include <pv/pvData.h>
#include <pv/anyscalar.h>
#include <pv/qsrv.h>

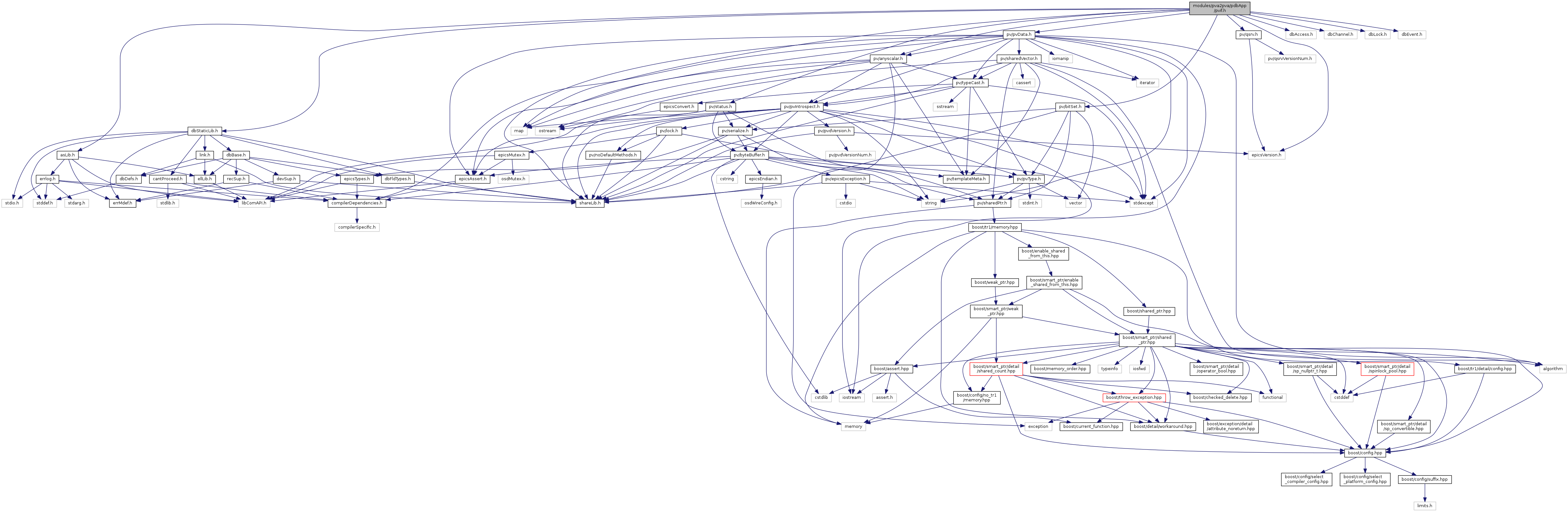

Include dependency graph for pvif.h:

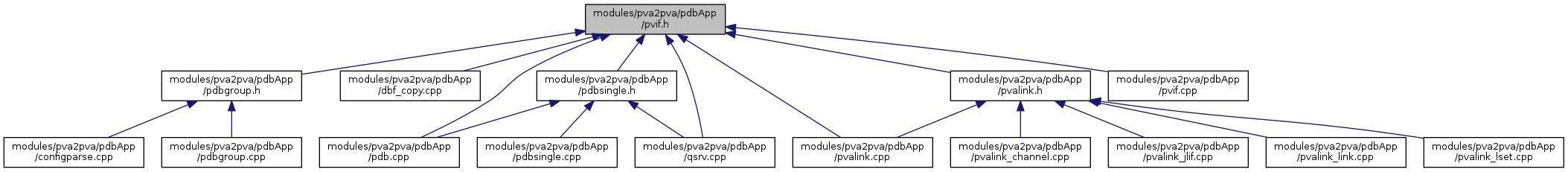

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
union	dbrbuf
struct	DBCH
struct	ASCred
struct	ASCLIENT
struct	pdbRecordInfo
struct	pdbRecordIterator
struct	pdbInfoIterator
struct	DBEvent
struct	LocalFL
struct	DBScanLocker
struct	FieldName
struct	FieldName::Component
struct	PVIF
struct	PVIFBuilder
struct	ScalarBuilder

Namespaces
	epics
	TODO only here because of the Lockable.
	epics::pvAccess
	Holds all PVA related.

Macros
#define	EPICS_VERSION_INT   VERSION_INT(EPICS_VERSION, EPICS_REVISION, EPICS_MODIFICATION, EPICS_PATCH_LEVEL)

Functions
short	PVD2DBR (epics::pvData::ScalarType pvt)
QSRV_API long	copyPVD2DBF (const epics::pvData::PVField::const_shared_pointer &in, void *outbuf, short outdbf, long *outnReq)
QSRV_API long	copyDBF2PVD (const epics::pvData::shared_vector< const void > &buf, const epics::pvData::PVField::shared_pointer &out, epics::pvData::BitSet &changed, const epics::pvData::PVStringArray::const_svector &choices)

Macro Definition Documentation

#define EPICS_VERSION_INT   VERSION_INT(EPICS_VERSION, EPICS_REVISION, EPICS_MODIFICATION, EPICS_PATCH_LEVEL)

Definition at line 26 of file pvif.h.

Function Documentation

QSRV_API long copyDBF2PVD	(	const epics::pvData::shared_vector< const void > &	buf,
		const epics::pvData::PVField::shared_pointer &	out,
		epics::pvData::BitSet &	changed,
		const epics::pvData::PVStringArray::const_svector &	choices
	)

QSRV_API long copyPVD2DBF	(	const epics::pvData::PVField::const_shared_pointer &	in,
		void *	outbuf,
		short	outdbf,
		long *	outnReq
	)

short PVD2DBR

(

epics::pvData::ScalarType

pvt

)

Definition at line 749 of file pvif.cpp.

{
    switch(pvt) {
#define CASE(BASETYPE, PVATYPE, DBFTYPE, PVACODE) case pvd::pv##PVACODE: return DBR_##DBFTYPE;
#ifndef USE_INT64
#  define CASE_SQUEEZE_INT64
#endif
#include "pv/typemap.h"
#ifndef USE_INT64
#  undef CASE_SQUEEZE_INT64
#endif
#undef CASE
    case pvd::pvString: return DBF_STRING;
    }
    return -1;
}
