pvalink.cpp File Reference

#include <set>
#include <map>
#include <epicsGuard.h>
#include <dbAccess.h>
#include <dbCommon.h>
#include <dbLink.h>
#include <dbScan.h>
#include <errlog.h>
#include <initHooks.h>
#include <alarm.h>
#include <epicsExit.h>
#include <epicsAtomic.h>
#include <link.h>
#include <dbJLink.h>
#include <epicsUnitTest.h>
#include <epicsString.h>
#include <epicsStdio.h>
#include <pv/pvAccess.h>
#include <pv/clientFactory.h>
#include <pv/iocshelper.h>
#include <pv/reftrack.h>
#include <pva/client.h>
#include "pv/qsrv.h"
#include "helper.h"
#include "pvif.h"
#include "pvalink.h"
#include <epicsExport.h>

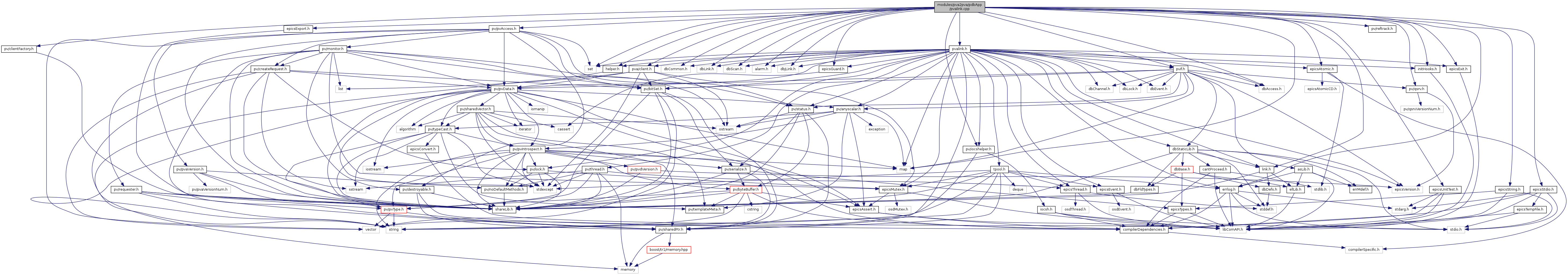

Include dependency graph for pvalink.cpp:

Go to the source code of this file.

Macros
#define	EPICS_DBCA_PRIVATE_API

Functions
void	testqsrvShutdownOk (void)
void	testqsrvCleanup (void)
void	testqsrvWaitForLinkEvent (struct link *plink)
void	dbpvar (const char *precordname, int level)
	epicsExportRegistrar (installPVAAddLinkHook)
	epicsExportAddress (jlif, lsetPVA)
	epicsExportAddress (int, pvaLinkDebug)
	epicsExportAddress (int, pvaLinkNWorkers)

Variables
int	pvaLinkDebug
int	pvaLinkIsolate

Macro Definition Documentation

#define EPICS_DBCA_PRIVATE_API

Definition at line 5 of file pvalink.cpp.

Function Documentation

void dbpvar	(	const char *	precordname,
		int	level
	)

Definition at line 185 of file pvalink.cpp.

{
    try {
        if(!pvaGlobal) {
            printf("PVA links not initialized\n");
            return;
        }

        if (!precordname || precordname[0] == '\0' || !strcmp(precordname, "*")) {
            precordname = NULL;
            printf("PVA links in all records\n\n");
        } else {
            printf("PVA links in record named '%s'\n\n", precordname);
        }

        size_t nchans = 0, nlinks = 0, nconn = 0;

        pvaGlobal_t::channels_t channels;
        {
            Guard G(pvaGlobal->lock);
            channels = pvaGlobal->channels; // copy snapshot
        }

        for(pvaGlobal_t::channels_t::const_iterator it(channels.begin()), end(channels.end());
            it != end; ++it)
        {
            std::tr1::shared_ptr<pvaLinkChannel> chan(it->second.lock());
            if(!chan) continue;

            Guard G(chan->lock);

            if(precordname) {
                // only show links fields of these records
                bool match = false;
                for(pvaLinkChannel::links_t::const_iterator it2(chan->links.begin()), end2(chan->links.end());
                    it2 != end2; ++it2)
                {
                    const pvaLink *pval = *it2;
                    // plink==NULL shouldn't happen, but we are called for debugging, so be paranoid.
                    if(pval->plink && epicsStrGlobMatch(pval->plink->precord->name, precordname)) {
                        match = true;
                        nlinks++;
                    }
                }
                if(!match)
                    continue;
            }

            nchans++;
            if(chan->connected_latched)
                nconn++;

            if(!precordname)
                nlinks += chan->links.size();

            if(level<=0)
                continue;

            if(level>=2 || (!chan->connected_latched && level==1)) {
                if(chan->key.first.size()<=28) {
                    printf("%28s ", chan->key.first.c_str());
                } else {
                    printf("%s\t", chan->key.first.c_str());
                }

                printf("conn=%c %zu disconnects, %zu type changes",
                       chan->connected_latched?'T':'F',
                       chan->num_disconnect,
                       chan->num_type_change);
                if(chan->op_put.valid()) {
                    printf(" Put");
                }

                if(level>=3) {
                    printf(", provider '%s'", chan->providerName.c_str());
                }
                printf("\n");
                // level 4 reserved for channel/provider details

                if(level>=5) {
                    for(pvaLinkChannel::links_t::const_iterator it2(chan->links.begin()), end2(chan->links.end());
                        it2 != end2; ++it2)
                    {
                        const pvaLink *pval = *it2;

                        if(!pval->plink)
                            continue;
                        else if(precordname && !epicsStrGlobMatch(pval->plink->precord->name, precordname))
                            continue;

                        const char *fldname = "???";
                        pdbRecordIterator rec(pval->plink->precord);
                        for(bool done = !!dbFirstField(&rec.ent, 0); !done; done = !!dbNextField(&rec.ent, 0))
                        {
                            if(rec.ent.pfield == (void*)pval->plink) {
                                fldname = rec.ent.pflddes->name;
                                break;
                            }
                        }

                        printf("%*s%s.%s", 30, "", pval->plink ? pval->plink->precord->name : "<NULL>", fldname);

                        switch(pval->pp) {
                        case pvaLinkConfig::NPP: printf(" NPP"); break;
                        case pvaLinkConfig::Default: printf(" Def"); break;
                        case pvaLinkConfig::PP: printf(" PP"); break;
                        case pvaLinkConfig::CP: printf(" CP"); break;
                        case pvaLinkConfig::CPP: printf(" CPP"); break;
                        }
                        switch(pval->ms) {
                        case pvaLinkConfig::NMS: printf(" NMS"); break;
                        case pvaLinkConfig::MS:  printf(" MS"); break;
                        case pvaLinkConfig::MSI: printf(" MSI"); break;
                        }

                        printf(" Q=%u pipe=%c defer=%c time=%c retry=%c morder=%d\n",
                               unsigned(pval->queueSize),
                               pval->pipeline ? 'T' : 'F',
                               pval->defer ? 'T' : 'F',
                               pval->time ? 'T' : 'F',
                               pval->retry ? 'T' : 'F',
                               pval->monorder);
                    }
                    printf("\n");
                }
            }
        }

        printf("  %zu/%zu channels connected used by %zu links\n",
               nconn, nchans, nlinks);

    } catch(std::exception& e) {
        fprintf(stderr, "Error: %s\n", e.what());
    }
}

epicsExportAddress	(	jlif	,
		lsetPVA
	)

epicsExportAddress	(	int	,
		pvaLinkDebug
	)

epicsExportAddress	(	int	,
		pvaLinkNWorkers
	)

epicsExportRegistrar

(

installPVAAddLinkHook

)

void testqsrvCleanup

(

void

)

Call after testIocShutdownOk() and before testdbCleanup()

testdbPrepare();
...
testIocInitOk();
...
testqsrvShutdownOk();
testIocShutdownOk();
testqsrvCleanup();
testdbCleanup();

Definition at line 158 of file pvalink.cpp.

{
    try {
        shutdownStep2();
    }catch(std::exception& e){
        testAbort("Error initializing pva link handling : %s\n", e.what());
    }
}

void testqsrvShutdownOk

(

void

)

Call before testIocShutdownOk()

testdbPrepare();
...
testIocInitOk();
...
testqsrvShutdownOk();
testIocShutdownOk();
testqsrvCleanup();
testdbCleanup();

Definition at line 149 of file pvalink.cpp.

{
    try {
        shutdownStep1();
    }catch(std::exception& e){
        testAbort("Error while stopping PVA link pool : %s\n", e.what());
    }
}

void testqsrvWaitForLinkEvent

(

struct link *

plink

)

Definition at line 167 of file pvalink.cpp.

{
    std::tr1::shared_ptr<pvaLinkChannel> lchan;
    {
        DBScanLocker lock(plink->precord);

        if(plink->type!=JSON_LINK || !plink->value.json.jlink || plink->value.json.jlink->pif!=&lsetPVA) {
            testAbort("Not a PVA link");
        }
        pvaLink *pval = static_cast<pvaLink*>(plink->value.json.jlink);
        lchan = pval->lchan;
    }
    if(lchan) {
        lchan->run_done.wait();
    }
}

Variable Documentation

int pvaLinkDebug

Definition at line 36 of file pvalink.cpp.

int pvaLinkIsolate

Definition at line 37 of file pvalink.cpp.
