epics::pvAccess::BaseChannelRequesterFailureMessageTransportSender Class Reference

#include "baseChannelRequester.h"

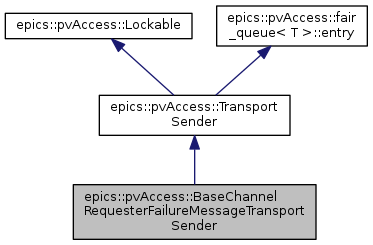

Inheritance diagram for epics::pvAccess::BaseChannelRequesterFailureMessageTransportSender:

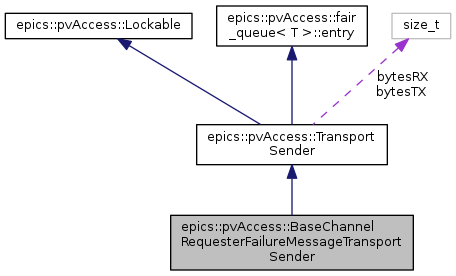

Collaboration diagram for epics::pvAccess::BaseChannelRequesterFailureMessageTransportSender:

Public Member Functions
	BaseChannelRequesterFailureMessageTransportSender (const epics::pvData::int8 command, Transport::shared_pointer const &transport, const pvAccessID ioid, const epics::pvData::int8 qos, const epics::pvData::Status &status)
virtual void	send (epics::pvData::ByteBuffer *buffer, TransportSendControl *control) OVERRIDE FINAL
Public Member Functions inherited from epics::pvAccess::TransportSender
	POINTER_DEFINITIONS (TransportSender)
	TransportSender ()
virtual	~TransportSender ()
Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)
virtual	~Lockable ()
virtual void	lock ()
virtual void	unlock ()
Public Member Functions inherited from epics::pvAccess::fair_queue< T >::entry
	entry ()
	~entry ()

Additional Inherited Members
Public Attributes inherited from epics::pvAccess::TransportSender
size_t	bytesTX
size_t	bytesRX

Detailed Description

Definition at line 75 of file baseChannelRequester.h.

Constructor & Destructor Documentation

epics::pvAccess::BaseChannelRequesterFailureMessageTransportSender::BaseChannelRequesterFailureMessageTransportSender	(	const epics::pvData::int8	command,
		Transport::shared_pointer const &	transport,
		const pvAccessID	ioid,
		const epics::pvData::int8	qos,
		const epics::pvData::Status &	status
	)

Definition at line 115 of file baseChannelRequester.cpp.

                                                                                                                :
    _command(command),
    _ioid(ioid),
    _qos(qos),
    _status(status),
    _transport(transport)
{
}

Member Function Documentation

void epics::pvAccess::BaseChannelRequesterFailureMessageTransportSender::send ( epics::pvData::ByteBuffer *  buffer, TransportSendControl *  control  )

virtual

Called by transport. By this call transport gives callee ownership over the buffer. Calls on TransportSendControl instance must be made from calling thread. Moreover, ownership is valid only for the time of call of this method. NOTE: these limitations allow efficient implementation.

Implements epics::pvAccess::TransportSender.

Definition at line 125 of file baseChannelRequester.cpp.

{
    control->startMessage(_command, sizeof(int32)/sizeof(int8) + 1);
    buffer->putInt(_ioid);
    buffer->put(_qos);
    _status.serialize(buffer, control);
}

---

The documentation for this class was generated from the following files:

• modules/pvAccess/src/server/pv/baseChannelRequester.h
• modules/pvAccess/src/server/baseChannelRequester.cpp
