epics::pvAccess::AuthenticationPluginControl Class Reference

Callbacks for use by AuthenticationSession. More...

#include "security.h"

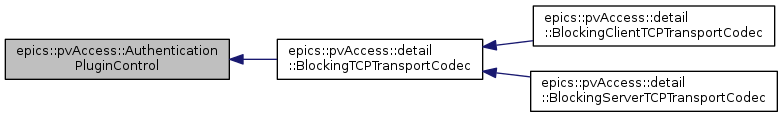

Inheritance diagram for epics::pvAccess::AuthenticationPluginControl:

Public Member Functions
	POINTER_DEFINITIONS (AuthenticationPluginControl)
virtual	~AuthenticationPluginControl ()
virtual void	sendSecurityPluginMessage (epics::pvData::PVStructure::const_shared_pointer const &data)=0
virtual void	authenticationCompleted (const epics::pvData::Status &status, const std::tr1::shared_ptr< PeerInfo > &peer)=0

Detailed Description

Callbacks for use by AuthenticationSession.

Definition at line 176 of file security.h.

Constructor & Destructor Documentation

epics::pvAccess::AuthenticationPluginControl::~AuthenticationPluginControl ( )

virtual

Definition at line 148 of file security.cpp.

{}

Member Function Documentation

virtual void epics::pvAccess::AuthenticationPluginControl::authenticationCompleted ( const epics::pvData::Status &  status, const std::tr1::shared_ptr< PeerInfo > &  peer  )

pure virtual

Called by server plugin to indicate the the exchange has completed.

Parameters

status	If !status.isSuccess() then the connection will be closed without being used.
peer	Partially initialized PeerInfo. See AuthenticationPlugin::createSession(). PeerInfo::realm and/or PeerInfo::account will now be considered valid. Caller transfers ownership to callee, which may modify.

Implemented in epics::pvAccess::detail::BlockingClientTCPTransportCodec, and epics::pvAccess::detail::BlockingServerTCPTransportCodec.

epics::pvAccess::AuthenticationPluginControl::POINTER_DEFINITIONS

(

AuthenticationPluginControl

)

virtual void epics::pvAccess::AuthenticationPluginControl::sendSecurityPluginMessage ( epics::pvData::PVStructure::const_shared_pointer const &  data )

pure virtual

Send AUTHZ to peer with payload. caller gives up ownership of data, which must not be modified.

Implemented in epics::pvAccess::detail::BlockingTCPTransportCodec.

---

The documentation for this class was generated from the following files:

• modules/pvAccess/src/remote/pv/security.h
• modules/pvAccess/src/remote/security.cpp
