nfa.c File Reference

#include "flexdef.h"

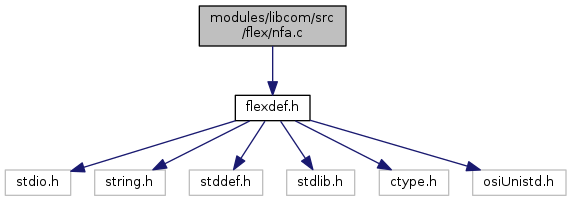

Include dependency graph for nfa.c:

Go to the source code of this file.

Functions
int	dupmachine (int)
void	mkxtion (int, int)
void	add_accept (int mach, int accepting_number)
int	copysingl (int singl, int num)
void	dumpnfa (int state1)
void	finish_rule (int mach, int variable_trail_rule, int headcnt, int trailcnt)
int	link_machines (int first, int last)
void	mark_beginning_as_normal (int mach)
int	mkbranch (int first, int second)
int	mkclos (int state)
int	mkopt (int mach)
int	mkor (int first, int second)
int	mkposcl (int state)
int	mkrep (int mach, int lb, int ub)
int	mkstate (int sym)
void	new_rule (void)

Function Documentation

void add_accept	(	int	mach,
		int	accepting_number
	)

Definition at line 55 of file nfa.c.

{
    /* hang the accepting number off an epsilon state.  if it is associated
     * with a state that has a non-epsilon out-transition, then the state
     * will accept BEFORE it makes that transition, i.e., one character
     * too soon
     */

    if ( transchar[finalst[mach]] == SYM_EPSILON )
        accptnum[finalst[mach]] = accepting_number;

    else
        {
        int astate = mkstate( SYM_EPSILON );
        accptnum[astate] = accepting_number;
        mach = link_machines( mach, astate );
        }
    }

int copysingl	(	int	singl,
		int	num
	)

Definition at line 86 of file nfa.c.

{
    int copy, i;

    copy = mkstate( SYM_EPSILON );

    for ( i = 1; i <= num; ++i )
        copy = link_machines( copy, dupmachine( singl ) );

    return ( copy );
    }

void dumpnfa

(

int

state1

)

Definition at line 106 of file nfa.c.

{
    int sym, tsp1, tsp2, anum, ns;

    fprintf( stderr, "\n\n********** beginning dump of nfa with start state %d\n",
             state1 );

    /* we probably should loop starting at firstst[state1] and going to
     * lastst[state1], but they're not maintained properly when we "or"
     * all of the rules together.  So we use our knowledge that the machine
     * starts at state 1 and ends at lastnfa.
     */

    /* for ( ns = firstst[state1]; ns <= lastst[state1]; ++ns ) */
    for ( ns = 1; ns <= lastnfa; ++ns )
        {
        fprintf( stderr, "state # %4d\t", ns );

        sym = transchar[ns];
        tsp1 = trans1[ns];
        tsp2 = trans2[ns];
        anum = accptnum[ns];

        fprintf( stderr, "%3d:  %4d, %4d", sym, tsp1, tsp2 );

        if ( anum != NIL )
            fprintf( stderr, "  [%d]", anum );

        fprintf( stderr, "\n" );
        }

    fprintf( stderr, "********** end of dump\n" );
    }

int dupmachine

(

int

mach

)

Definition at line 158 of file nfa.c.

{
    int i, init, state_offset;
    int state = 0;
    int last = lastst[mach];

    for ( i = firstst[mach]; i <= last; ++i )
        {
        state = mkstate( transchar[i] );

        if ( trans1[i] != NO_TRANSITION )
            {
            mkxtion( finalst[state], trans1[i] + state - i );

            if ( transchar[i] == SYM_EPSILON && trans2[i] != NO_TRANSITION )
                mkxtion( finalst[state], trans2[i] + state - i );
            }

        accptnum[state] = accptnum[i];
        }

    if ( state == 0 )
        flexfatal( "empty machine in dupmachine()" );

    state_offset = state - i + 1;

    init = mach + state_offset;
    firstst[init] = firstst[mach] + state_offset;
    finalst[init] = finalst[mach] + state_offset;
    lastst[init] = lastst[mach] + state_offset;

    return ( init );
    }

void finish_rule	(	int	mach,
		int	variable_trail_rule,
		int	headcnt,
		int	trailcnt
	)

Definition at line 209 of file nfa.c.

{
    add_accept( mach, num_rules );

    /* we did this in new_rule(), but it often gets the wrong
     * number because we do it before we start parsing the current rule
     */
    rule_linenum[num_rules] = linenum;

    /* if this is a continued action, then the line-number has
     * already been updated, giving us the wrong number
     */
    if ( continued_action )
        --rule_linenum[num_rules];

    fprintf( temp_action_file, "case %d:\n", num_rules );

    if ( variable_trail_rule )
        {
        rule_type[num_rules] = RULE_VARIABLE;

        if ( performance_report )
            fprintf( stderr, "Variable trailing context rule at line %d\n",
                     rule_linenum[num_rules] );

        variable_trailing_context_rules = true;
        }

    else
        {
        rule_type[num_rules] = RULE_NORMAL;

        if ( headcnt > 0 || trailcnt > 0 )
            {
            /* do trailing context magic to not match the trailing characters */
            char *scanner_cp = "yy_c_buf_p = yy_cp";
            char *scanner_bp = "yy_bp";

            fprintf( temp_action_file,
        "*yy_cp = yy_hold_char; /* undo effects of setting up yytext */\n" );

            if ( headcnt > 0 )
                fprintf( temp_action_file, "%s = %s + %d;\n",
                         scanner_cp, scanner_bp, headcnt );

            else
                fprintf( temp_action_file,
                         "%s -= %d;\n", scanner_cp, trailcnt );

            fprintf( temp_action_file,
                     "YY_DO_BEFORE_ACTION; /* set up yytext again */\n" );
            }
        }

    line_directive_out( temp_action_file );
    }

int link_machines	(	int	first,
		int	last
	)

Definition at line 283 of file nfa.c.

{
    if ( first == NIL )
        return ( last );

    else if ( last == NIL )
        return ( first );

    else
        {
        mkxtion( finalst[first], last );
        finalst[first] = finalst[last];
        lastst[first] = max( lastst[first], lastst[last] );
        firstst[first] = min( firstst[first], firstst[last] );

        return ( first );
        }
    }

void mark_beginning_as_normal

(

int

mach

)

Definition at line 316 of file nfa.c.

{
    switch ( state_type[mach] )
        {
        case STATE_NORMAL:
            /* oh, we've already visited here */
            return;

        case STATE_TRAILING_CONTEXT:
            state_type[mach] = STATE_NORMAL;

            if ( transchar[mach] == SYM_EPSILON )
                {
                if ( trans1[mach] != NO_TRANSITION )
                    mark_beginning_as_normal( trans1[mach] );

                if ( trans2[mach] != NO_TRANSITION )
                    mark_beginning_as_normal( trans2[mach] );
                }
            break;

        default:
            flexerror( "bad state type in mark_beginning_as_normal()" );
            break;
        }
    }

int mkbranch	(	int	first,
		int	second
	)

Definition at line 358 of file nfa.c.

{
    int eps;

    if ( first == NO_TRANSITION )
        return ( second );

    else if ( second == NO_TRANSITION )
        return ( first );

    eps = mkstate( SYM_EPSILON );

    mkxtion( eps, first );
    mkxtion( eps, second );

    return ( eps );
    }

int mkclos

(

int

state

)

Definition at line 385 of file nfa.c.

{
    return ( mkopt( mkposcl( state ) ) );
    }

int mkopt

(

int

mach

)

Definition at line 405 of file nfa.c.

{
    int eps;

    if ( ! SUPER_FREE_EPSILON(finalst[mach]) )
        {
        eps = mkstate( SYM_EPSILON );
        mach = link_machines( mach, eps );
        }

    /* can't skimp on the following if FREE_EPSILON(mach) is true because
     * some state interior to "mach" might point back to the beginning
     * for a closure
     */
    eps = mkstate( SYM_EPSILON );
    mach = link_machines( eps, mach );

    mkxtion( mach, finalst[mach] );

    return ( mach );
    }

int mkor	(	int	first,
		int	second
	)

Definition at line 442 of file nfa.c.

{
    int eps, orend;

    if ( first == NIL )
        return ( second );

    else if ( second == NIL )
        return ( first );

    else
        {
        /* see comment in mkopt() about why we can't use the first state
         * of "first" or "second" if they satisfy "FREE_EPSILON"
         */
        eps = mkstate( SYM_EPSILON );

        first = link_machines( eps, first );

        mkxtion( first, second );

        if ( SUPER_FREE_EPSILON(finalst[first]) &&
             accptnum[finalst[first]] == NIL )
            {
            orend = finalst[first];
            mkxtion( finalst[second], orend );
            }

        else if ( SUPER_FREE_EPSILON(finalst[second]) &&
                  accptnum[finalst[second]] == NIL )
            {
            orend = finalst[second];
            mkxtion( finalst[first], orend );
            }

        else
            {
            eps = mkstate( SYM_EPSILON );

            first = link_machines( first, eps );
            orend = finalst[first];

            mkxtion( finalst[second], orend );
            }
        }

    finalst[first] = orend;
    return ( first );
    }

int mkposcl

(

int

state

)

Definition at line 501 of file nfa.c.

{
    int eps;

    if ( SUPER_FREE_EPSILON(finalst[state]) )
        {
        mkxtion( finalst[state], state );
        return ( state );
        }

    else
        {
        eps = mkstate( SYM_EPSILON );
        mkxtion( eps, state );
        return ( link_machines( state, eps ) );
        }
    }

int mkrep	(	int	mach,
		int	lb,
		int	ub
	)

Definition at line 532 of file nfa.c.

{
    int base_mach, tail, copy, i;

    base_mach = copysingl( mach, lb - 1 );

    if ( ub == INFINITY )
        {
        copy = dupmachine( mach );
        mach = link_machines( mach,
                              link_machines( base_mach, mkclos( copy ) ) );
        }

    else
        {
        tail = mkstate( SYM_EPSILON );

        for ( i = lb; i < ub; ++i )
            {
            copy = dupmachine( mach );
            tail = mkopt( link_machines( copy, tail ) );
            }

        mach = link_machines( mach, link_machines( base_mach, tail ) );
        }

    return ( mach );
    }

int mkstate

(

int

sym

)

Definition at line 578 of file nfa.c.

{
    if ( ++lastnfa >= current_mns )
        {
        if ( (current_mns += MNS_INCREMENT) >= MAXIMUM_MNS )
            lerrif( "input rules are too complicated (>= %d NFA states)",
                    current_mns );

        ++num_reallocs;

        firstst = reallocate_integer_array( firstst, current_mns );
        lastst = reallocate_integer_array( lastst, current_mns );
        finalst = reallocate_integer_array( finalst, current_mns );
        transchar = reallocate_integer_array( transchar, current_mns );
        trans1 = reallocate_integer_array( trans1, current_mns );
        trans2 = reallocate_integer_array( trans2, current_mns );
        accptnum = reallocate_integer_array( accptnum, current_mns );
        assoc_rule = reallocate_integer_array( assoc_rule, current_mns );
        state_type = reallocate_integer_array( state_type, current_mns );
        }

    firstst[lastnfa] = lastnfa;
    finalst[lastnfa] = lastnfa;
    lastst[lastnfa] = lastnfa;
    transchar[lastnfa] = sym;
    trans1[lastnfa] = NO_TRANSITION;
    trans2[lastnfa] = NO_TRANSITION;
    accptnum[lastnfa] = NIL;
    assoc_rule[lastnfa] = num_rules;
    state_type[lastnfa] = current_state_type;

    /* fix up equivalence classes base on this transition.  Note that any
     * character which has its own transition gets its own equivalence class.
     * Thus only characters which are only in character classes have a chance
     * at being in the same equivalence class.  E.g. "a|b" puts 'a' and 'b'
     * into two different equivalence classes.  "[ab]" puts them in the same
     * equivalence class (barring other differences elsewhere in the input).
     */

    if ( sym < 0 )
        {
        /* we don't have to update the equivalence classes since that was
         * already done when the ccl was created for the first time
         */
        }

    else if ( sym == SYM_EPSILON )
        ++numeps;

    else
        {
        if ( useecs )
            /* map NUL's to csize */
            mkechar( sym ? sym : csize, nextecm, ecgroup );
        }

    return ( lastnfa );
    }

void mkxtion	(	int	statefrom,
		int	stateto
	)

Definition at line 648 of file nfa.c.

{
    if ( trans1[statefrom] == NO_TRANSITION )
        trans1[statefrom] = stateto;

    else if ( (transchar[statefrom] != SYM_EPSILON) ||
              (trans2[statefrom] != NO_TRANSITION) )
        flexfatal( "found too many transitions in mkxtion()" );

    else
        { /* second out-transition for an epsilon state */
        ++eps2;
        trans2[statefrom] = stateto;
        }
    }

void new_rule

(

void

)

Definition at line 674 of file nfa.c.

{
    if ( ++num_rules >= current_max_rules )
        {
        ++num_reallocs;
        current_max_rules += MAX_RULES_INCREMENT;
        rule_type = reallocate_integer_array( rule_type, current_max_rules );
        rule_linenum =
            reallocate_integer_array( rule_linenum, current_max_rules );
        }

    if ( num_rules > MAX_RULE )
        lerrif( "too many rules (> %d)!", MAX_RULE );

    rule_linenum[num_rules] = linenum;
    }
