epics::pvAccess::ChannelArrayRequester Class Reference

#include "pvAccess.h"

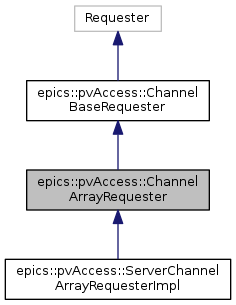

Inheritance diagram for epics::pvAccess::ChannelArrayRequester:

Collaboration diagram for epics::pvAccess::ChannelArrayRequester:

Public Types
typedef ChannelArray	operation_type

Public Member Functions
	POINTER_DEFINITIONS (ChannelArrayRequester)
virtual	~ChannelArrayRequester ()
virtual void	channelArrayConnect (const epics::pvData::Status &status, ChannelArray::shared_pointer const &channelArray, epics::pvData::Array::const_shared_pointer const &array)=0
virtual void	putArrayDone (const epics::pvData::Status &status, ChannelArray::shared_pointer const &channelArray)=0
virtual void	getArrayDone (const epics::pvData::Status &status, ChannelArray::shared_pointer const &channelArray, epics::pvData::PVArray::shared_pointer const &pvArray)=0
virtual void	getLengthDone (const epics::pvData::Status &status, ChannelArray::shared_pointer const &channelArray, size_t length)=0
virtual void	setLengthDone (const epics::pvData::Status &status, ChannelArray::shared_pointer const &channelArray)=0
Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)
	ChannelBaseRequester ()
virtual	~ChannelBaseRequester ()
virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Detailed Description

The Requester for a ChannelArray.

Definition at line 332 of file pvAccess.h.

Member Typedef Documentation

typedef ChannelArray epics::pvAccess::ChannelArrayRequester::operation_type

Definition at line 335 of file pvAccess.h.

Constructor & Destructor Documentation

virtual epics::pvAccess::ChannelArrayRequester::~ChannelArrayRequester ( )

inlinevirtual

Definition at line 337 of file pvAccess.h.

{}

Member Function Documentation

virtual void epics::pvAccess::ChannelArrayRequester::channelArrayConnect ( const epics::pvData::Status &  status, ChannelArray::shared_pointer const &  channelArray, epics::pvData::Array::const_shared_pointer const &  array  )

pure virtual

Underlying Channel is connected and operation setup is complete. May call putArray(), getArray(), getLength(), or setLength() to execute.

Parameters

status	Completion status.
channelArray	The channelArray interface or nullptr if the request failed.
pvArray	The PVArray that holds the data or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelArrayRequesterImpl.

virtual void epics::pvAccess::ChannelArrayRequester::getArrayDone ( const epics::pvData::Status &  status, ChannelArray::shared_pointer const &  channelArray, epics::pvData::PVArray::shared_pointer const &  pvArray  )

pure virtual

The request is done. This is always called with no locks held.

Ownership of the PVArray is transfered to the ChannelArrayRequester until a subsequent call to ChannelArray::getArray() or ChannelArrayRequester::channelDisconnect().

Parameters

status	Completion status.
channelArray	The channelArray interface.
pvArray	The PVArray that holds the data or nullptr if the request failed.

Implemented in epics::pvAccess::ServerChannelArrayRequesterImpl.

virtual void epics::pvAccess::ChannelArrayRequester::getLengthDone ( const epics::pvData::Status &  status, ChannelArray::shared_pointer const &  channelArray, size_t  length  )

pure virtual

The request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelArray	The channelArray interface.
length	The length of the array, 0 if the request failed.

epics::pvAccess::ChannelArrayRequester::POINTER_DEFINITIONS

(

ChannelArrayRequester

)

virtual void epics::pvAccess::ChannelArrayRequester::putArrayDone ( const epics::pvData::Status &  status, ChannelArray::shared_pointer const &  channelArray  )

pure virtual

The request is done. This is always called with no locks held.

Ownership of PVArray passed to ChannelArray::putArray() returns to ChannelArrayRequester

Parameters

status	Completion status.
channelArray	The channelArray interface.

Implemented in epics::pvAccess::ServerChannelArrayRequesterImpl.

virtual void epics::pvAccess::ChannelArrayRequester::setLengthDone ( const epics::pvData::Status &  status, ChannelArray::shared_pointer const &  channelArray  )

pure virtual

The request is done. This is always called with no locks held.

Parameters

status	Completion status.
channelArray	The channelArray interface.

Implemented in epics::pvAccess::ServerChannelArrayRequesterImpl.

---

The documentation for this class was generated from the following file:

• modules/pvAccess/src/client/pv/pvAccess.h
