udpiiu.h File Reference

#include <memory>
#include "osiSock.h"
#include "epicsThread.h"
#include "epicsTime.h"
#include "tsDLList.h"
#include "libCaAPI.h"
#include "netiiu.h"
#include "searchTimer.h"
#include "disconnectGovernorTimer.h"
#include "repeaterSubscribeTimer.h"
#include "SearchDest.h"

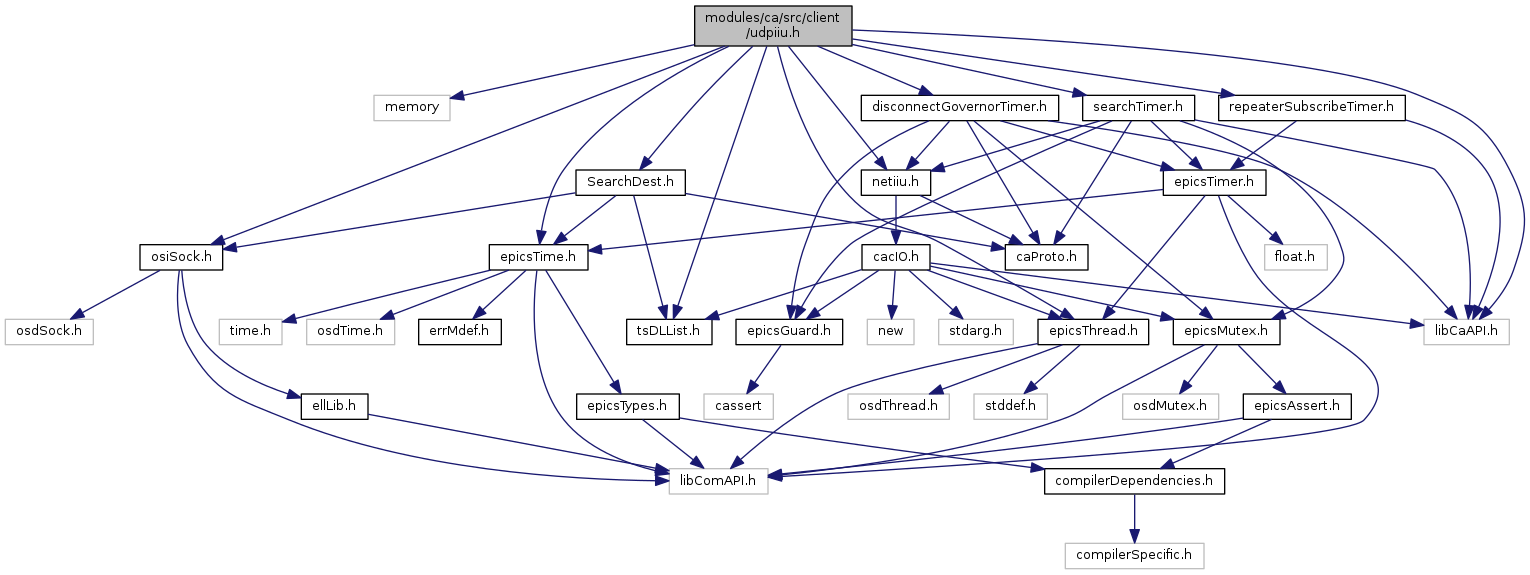

Include dependency graph for udpiiu.h:

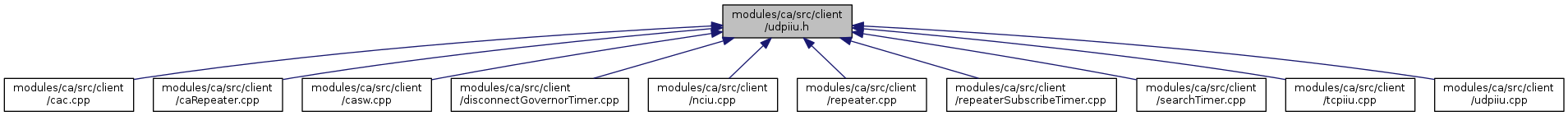

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	udpRecvThread
class	udpiiu
class	udpiiu::noSocket

Functions
void	cacRecvThreadUDP (void *pParam)
LIBCA_API void epicsStdCall	caStartRepeaterIfNotInstalled (unsigned repeaterPort)
LIBCA_API void epicsStdCall	caRepeaterRegistrationMessage (SOCKET sock, unsigned repeaterPort, unsigned attemptNumber)
LIBCA_API void	caRepeaterThread (void *pDummy)
LIBCA_API void	ca_repeater (void)

Function Documentation

LIBCA_API void ca_repeater

(

void

)

Definition at line 482 of file repeater.cpp.

{
    tsFreeList < repeaterClient, 0x20 > freeList;
    int size;
    SOCKET sock;
    osiSockAddr from;
    unsigned short port;
    char * pBuf;

    pBuf = new char [MAX_UDP_RECV];

    {
        bool success = osiSockAttach();
        assert ( success );
    }

    port = envGetInetPortConfigParam ( & EPICS_CA_REPEATER_PORT,
                                       static_cast <unsigned short> (CA_REPEATER_PORT) );
    if ( int sockerrno = makeSocket ( port, true, & sock ) ) {
        /*
         * test for server was already started
         */
        if ( sockerrno == SOCK_EADDRINUSE ) {
            osiSockRelease ();
            debugPrintf ( ( "CA Repeater: exiting because a repeater is already running\n" ) );
            delete [] pBuf;
            return;
        }
        char sockErrBuf[64];
        epicsSocketConvertErrorToString (
            sockErrBuf, sizeof ( sockErrBuf ), sockerrno );
        fprintf ( stderr, "%s: Unable to create repeater socket because \"%s\" - fatal\n",
            __FILE__, sockErrBuf );
        osiSockRelease ();
        delete [] pBuf;
        return;
    }

#ifdef IP_ADD_MEMBERSHIP
    /*
     * join UDP socket to any multicast groups
     */
    {
        ELLLIST casBeaconAddrList = ELLLIST_INIT;
        ELLLIST casMergeAddrList = ELLLIST_INIT;

        /*
         * collect user specified beacon address list;
         * check BEACON_ADDR_LIST list first; if no result, take CA_ADDR_LIST
        */
        if(!addAddrToChannelAccessAddressList(&casMergeAddrList,&EPICS_CAS_BEACON_ADDR_LIST,port,0)) {
            addAddrToChannelAccessAddressList(&casMergeAddrList,&EPICS_CA_ADDR_LIST,port,0);
        }

        /* First clean up */
        removeDuplicateAddresses(&casBeaconAddrList, &casMergeAddrList , 0);

        osiSockAddrNode *pNode;
        for(pNode = (osiSockAddrNode*)ellFirst(&casBeaconAddrList);
            pNode;
            pNode = (osiSockAddrNode*)ellNext(&pNode->node))
        {

            if(pNode->addr.ia.sin_family==AF_INET) {
                epicsUInt32 top = ntohl(pNode->addr.ia.sin_addr.s_addr)>>24;
                if(top>=224 && top<=239) {

                    /* This is a multi-cast address */
                    struct ip_mreq mreq;

                    memset(&mreq, 0, sizeof(mreq));
                    mreq.imr_multiaddr = pNode->addr.ia.sin_addr;
                    mreq.imr_interface.s_addr = INADDR_ANY;

                    if (setsockopt(sock, IPPROTO_IP, IP_ADD_MEMBERSHIP,
                        (char *) &mreq, sizeof(mreq)) != 0) {
                        char name[40];
                        char sockErrBuf[64];
                        epicsSocketConvertErrnoToString (sockErrBuf, sizeof ( sockErrBuf ) );
                        ipAddrToDottedIP (&pNode->addr.ia, name, sizeof(name));
                        errlogPrintf("caR: Socket mcast join to %s failed: %s\n", name, sockErrBuf );
                    }
                }
            }
        }
    }
#endif

    debugPrintf ( ( "CA Repeater: Attached and initialized\n" ) );

    while ( true ) {
        osiSocklen_t from_size = sizeof ( from );
        size = recvfrom ( sock, pBuf, MAX_UDP_RECV, 0,
                    &from.sa, &from_size );
        if ( size < 0 ) {
            int errnoCpy = SOCKERRNO;
            // Avoid spurious ECONNREFUSED bug in linux
            if ( errnoCpy == SOCK_ECONNREFUSED ) {
                continue;
            }
            // Avoid ECONNRESET from connected socket in windows
            if ( errnoCpy == SOCK_ECONNRESET ) {
                continue;
            }
            char sockErrBuf[64];
            epicsSocketConvertErrnoToString (
                sockErrBuf, sizeof ( sockErrBuf ) );
            fprintf ( stderr, "CA Repeater: unexpected UDP recv err: %s\n",
                sockErrBuf );
            continue;
        }

        caHdr * pMsg = ( caHdr * ) pBuf;

        /*
         * both zero length message and a registration message
         * will register a new client
         */
        if ( ( (size_t) size) >= sizeof (*pMsg) ) {
            if ( AlignedWireRef < epicsUInt16 > ( pMsg->m_cmmd ) == REPEATER_REGISTER ) {
                register_new_client ( from, freeList );

                /*
                 * strip register client message
                 */
                pMsg++;
                size -= sizeof ( *pMsg );
                if ( size==0 ) {
                    continue;
                }
            }
            else if ( AlignedWireRef < epicsUInt16 > ( pMsg->m_cmmd ) == CA_PROTO_RSRV_IS_UP ) {
                if ( pMsg->m_available == 0u ) {
                    pMsg->m_available = from.ia.sin_addr.s_addr;
                }
            }
        }
        else if ( size == 0 ) {
            register_new_client ( from, freeList );
            continue;
        }

        fanOut ( from, pMsg, size, freeList );
    }
}

void cacRecvThreadUDP

(

void *

pParam

)

LIBCA_API void epicsStdCall caRepeaterRegistrationMessage	(	SOCKET	sock,
		unsigned	repeaterPort,
		unsigned	attemptNumber
	)

Definition at line 464 of file udpiiu.cpp.

{
    osiSockAddr saddr;
    caHdr msg;
    int status;
    int len;

    assert ( repeaterPort <= USHRT_MAX );
    unsigned short port = static_cast <unsigned short> ( repeaterPort );

    /*
     * In 3.13 beta 11 and before the CA repeater calls local_addr()
     * to determine a local address and does not allow registration
     * messages originating from other addresses. In these
     * releases local_addr() returned the address of the first enabled
     * interface found, and this address may or may not have been the loop
     * back address. Starting with 3.13 beta 12 local_addr() was
     * changed to always return the address of the first enabled
     * non-loopback interface because a valid non-loopback local
     * address is required in the beacon messages. Therefore, to
     * guarantee compatibility with past versions of the repeater
     * we alternate between the address returned by local_addr()
     * and the loopback address here.
     *
     * CA repeaters in R3.13 beta 12 and higher allow
     * either the loopback address or the address returned
     * by local address (the first non-loopback address found)
     */
    if ( attemptNumber & 1 ) {
        saddr = osiLocalAddr ( sock );
        if ( saddr.sa.sa_family != AF_INET ) {
            /*
             * use the loop back address to communicate with the CA repeater
             * if this os does not have interface query capabilities
             *
             * this will only work with 3.13 beta 12 CA repeaters or later
             */
            saddr.ia.sin_family = AF_INET;
            saddr.ia.sin_addr.s_addr = htonl ( INADDR_LOOPBACK );
            saddr.ia.sin_port = htons ( port );
        }
        else {
            saddr.ia.sin_port = htons ( port );
        }
    }
    else {
        saddr.ia.sin_family = AF_INET;
        saddr.ia.sin_addr.s_addr = htonl ( INADDR_LOOPBACK );
        saddr.ia.sin_port = htons ( port );
    }

    memset ( (char *) &msg, 0, sizeof (msg) );
    AlignedWireRef < epicsUInt16 > ( msg.m_cmmd ) = REPEATER_REGISTER;
    msg.m_available = saddr.ia.sin_addr.s_addr;

    /*
     * Intentionally sending a zero length message here
     * until most CA repeater daemons have been restarted
     * (and only then will they accept the above protocol)
     * (repeaters began accepting this protocol
     * starting with EPICS 3.12)
     */
#   if defined ( DOES_NOT_ACCEPT_ZERO_LENGTH_UDP )
        len = sizeof (msg);
#   else
        len = 0;
#   endif

    status = sendto ( sock, (char *) &msg, len, 0,
                      &saddr.sa, sizeof ( saddr ) );
    if ( status < 0 ) {
        int errnoCpy = SOCKERRNO;
        /*
         * Different OS return different codes when the repeater isnt running.
         * Its ok to supress these messages because I print another warning message
         * if we time out registerring with the repeater.
         *
         * Linux returns SOCK_ECONNREFUSED
         * Windows 2000 returns SOCK_ECONNRESET
         */
        if (    errnoCpy != SOCK_EINTR &&
                errnoCpy != SOCK_ECONNREFUSED &&
                errnoCpy != SOCK_ECONNRESET ) {
            char sockErrBuf[64];
            epicsSocketConvertErrnoToString (
                sockErrBuf, sizeof ( sockErrBuf ) );
            fprintf ( stderr, "error sending registration message to CA repeater daemon was \"%s\"\n",
                sockErrBuf );
        }
    }
}

LIBCA_API void caRepeaterThread

(

void *

pDummy

)

Definition at line 631 of file repeater.cpp.

{
    taskwdInsert ( epicsThreadGetIdSelf(), NULL, NULL );
    ca_repeater ();
}

LIBCA_API void epicsStdCall caStartRepeaterIfNotInstalled

(

unsigned

repeaterPort

)

Definition at line 581 of file udpiiu.cpp.

{
    bool installed = false;
    int status;
    SOCKET tmpSock;
    union {
        struct sockaddr_in ia;
        struct sockaddr sa;
    } bd;

    if ( repeaterPort > 0xffff ) {
        fprintf ( stderr, "caStartRepeaterIfNotInstalled () : strange repeater port specified\n" );
        return;
    }

    tmpSock = epicsSocketCreate ( AF_INET, SOCK_DGRAM, IPPROTO_UDP );
    if ( tmpSock != INVALID_SOCKET ) {
        ca_uint16_t port = static_cast < ca_uint16_t > ( repeaterPort );
        memset ( (char *) &bd, 0, sizeof ( bd ) );
        bd.ia.sin_family = AF_INET;
        bd.ia.sin_addr.s_addr = htonl ( INADDR_ANY );
        bd.ia.sin_port = htons ( port );
        status = bind ( tmpSock, &bd.sa, sizeof ( bd ) );
        if ( status < 0 ) {
            if ( SOCKERRNO == SOCK_EADDRINUSE ) {
                installed = true;
            }
            else {
                fprintf ( stderr, "caStartRepeaterIfNotInstalled () : bind failed\n" );
            }
        }
    }

    /*
     * turn on reuse only after the test so that
     * this works on kernels that support multicast
     */
    epicsSocketEnableAddressReuseDuringTimeWaitState ( tmpSock );

    epicsSocketDestroy ( tmpSock );

    if ( ! installed ) {

        /*
         * This is not called if the repeater is known to be
         * already running. (in the event of a race condition
         * the 2nd repeater exits when unable to attach to the
         * repeater's port)
         */
        osiSpawnDetachedProcessReturn osptr =
            osiSpawnDetachedProcess ( "CA Repeater", "caRepeater" );
        if ( osptr == osiSpawnDetachedProcessNoSupport ) {
            epicsThreadId tid;

            tid = epicsThreadCreate ( "CAC-repeater", epicsThreadPriorityLow,
                    epicsThreadGetStackSize ( epicsThreadStackMedium ), caRepeaterThread, 0);
            if ( tid == 0 ) {
                fprintf ( stderr, "caStartRepeaterIfNotInstalled : unable to create CA repeater daemon thread\n" );
            }
        }
        else if ( osptr == osiSpawnDetachedProcessFail ) {
            fprintf ( stderr, "caStartRepeaterIfNotInstalled (): unable to start CA repeater daemon detached process\n" );
        }
    }
}
