API for accessing hardware devices, originally over VMEbus. More...

#include "devLibVME.h"

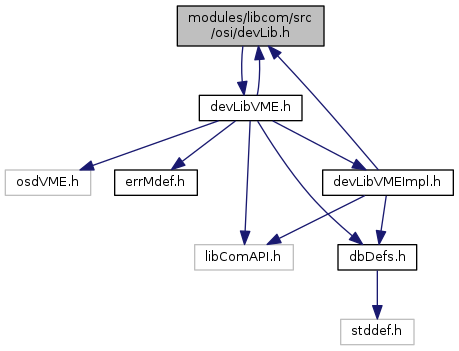

Include dependency graph for devLib.h:

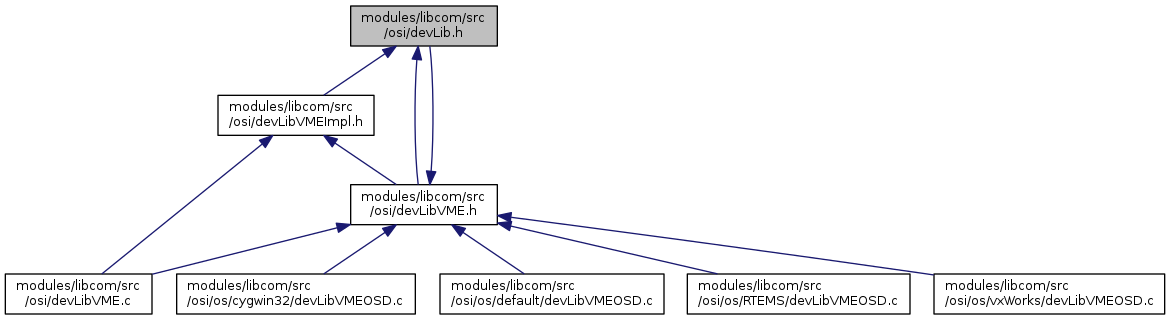

This graph shows which files directly or indirectly include this file:

Macros
Macros for normalizing values
Warning Deprecated, we don't know of any code currently using these.
#define	devCreateMask(NBITS) ((1<<(NBITS))-1)
	Create a bit mask for a given number of bits. More...

#define	devDigToNml(DIGITAL, NBITS) (((double)(DIGITAL))/devCreateMask(NBITS))
	Normalize a raw integer value and convert it to type double. More...

#define	devNmlToDig(NORMAL, NBITS) (((long)(NORMAL)) * devCreateMask(NBITS))
	Convert a normalized value to a raw integer. More...

Macros for pointer alignment
Warning Deprecated, we don't know of any code currently using these.
#define	devCreateAlignmentMask(CTYPE) (sizeof(CTYPE)>sizeof(double)?sizeof(double)-1:sizeof(CTYPE)-1)
	Create an alignment mask for CTYPE. More...

#define	devPtrAlignTest(PTR) (!(devCreateAlignmentMask(*PTR)&(long)(PTR)))
	Check Pointer alignment, returns true if the pointer `PTR` is suitably aligned for its data type. More...

Error status values returned by devLib routines
#define	S_dev_success 0

#define	S_dev_vectorInUse (M_devLib\| 1) /Interrupt vector in use/
	Interrupt vector in use. More...

#define	S_dev_vecInstlFail (M_devLib\| 2) /Interrupt vector install failed/
	Interrupt vector install failed. More...

#define	S_dev_uknIntType (M_devLib\| 3) /Unrecognized interrupt type/
	Unrecognized interrupt type. More...

#define	S_dev_vectorNotInUse (M_devLib\| 4) /Interrupt vector not in use by caller/
	Interrupt vector not in use by caller. More...

#define	S_dev_badA16 (M_devLib\| 5) /Invalid VME A16 address/
	Invalid VME A16 address. More...

#define	S_dev_badA24 (M_devLib\| 6) /Invalid VME A24 address/
	Invalid VME A24 address. More...

#define	S_dev_badA32 (M_devLib\| 7) /Invalid VME A32 address/
	Invalid VME A32 address. More...

#define	S_dev_uknAddrType (M_devLib\| 8) /Unrecognized address space type/
	Unrecognized address space type. More...

#define	S_dev_addressOverlap (M_devLib\| 9) /Specified device address overlaps another device/
	Specified device address overlaps another device. More...

#define	S_dev_identifyOverlap (M_devLib\| 10) /This device already owns the address range/
	This device already owns the address range. More...

#define	S_dev_addrMapFail (M_devLib\| 11) /Unable to map address/
	Unable to map address. More...

#define	S_dev_intDisconnect (M_devLib\| 12) /Interrupt at vector disconnected from an EPICS device/
	Interrupt at vector disconnected from an EPICS device. More...

#define	S_dev_internal (M_devLib\| 13) /Internal failure/
	Internal failure. More...

#define	S_dev_intEnFail (M_devLib\| 14) /Unable to enable interrupt level/
	Unable to enable interrupt level. More...

#define	S_dev_intDissFail (M_devLib\| 15) /Unable to disable interrupt level/
	Unable to disable interrupt level. More...

#define	S_dev_noMemory (M_devLib\| 16) /Memory allocation failed/
	Memory allocation failed. More...

#define	S_dev_addressNotFound (M_devLib\| 17) /Specified device address unregistered/
	Specified device address unregistered. More...

#define	S_dev_noDevice (M_devLib\| 18) /No device at specified address/
	No device at specified address. More...

#define	S_dev_wrongDevice (M_devLib\| 19) /Wrong device type found at specified address/
	Wrong device type found at specified address. More...

#define	S_dev_badSignalNumber (M_devLib\| 20) /Signal number (offset) to large/
	Signal number (offset) to large. More...

#define	S_dev_badSignalCount (M_devLib\| 21) /Signal count to large/
	Signal count to large. More...

#define	S_dev_badRequest (M_devLib\| 22) /Device does not support requested operation/
	Device does not support requested operation. More...

#define	S_dev_highValue (M_devLib\| 23) /Parameter too high/
	Parameter too high. More...

#define	S_dev_lowValue (M_devLib\| 24) /Parameter too low/
	Parameter too low. More...

#define	S_dev_multDevice (M_devLib\| 25) /Specified address is ambiguous (more than one device responds)/
	Specified address is ambiguous (more than one device responds) More...

#define	S_dev_badSelfTest (M_devLib\| 26) /Device self test failed/
	Device self test failed. More...

#define	S_dev_badInit (M_devLib\| 27) /Device failed during initialization/
	Device failed during initialization. More...

#define	S_dev_hdwLimit (M_devLib\| 28) /Input exceeds Hardware Limit/
	Input exceeds Hardware Limit. More...

#define	S_dev_deviceDoesNotFit (M_devLib\| 29) /Unable to locate address space for device/
	Unable to locate address space for device. More...

#define	S_dev_deviceTMO (M_devLib\| 30) /Device timed out/
	Device timed out. More...

#define	S_dev_badFunction (M_devLib\| 31) /Bad function pointer/
	Bad function pointer. More...

#define	S_dev_badVector (M_devLib\| 32) /Bad interrupt vector/
	Bad interrupt vector. More...

#define	S_dev_badArgument (M_devLib\| 33) /Bad function argument/
	Bad function argument. More...

#define	S_dev_badISA (M_devLib\| 34) /Invalid ISA address/
	Invalid ISA address. More...

#define	S_dev_badCRCSR (M_devLib\| 35) /Invalid VME CR/CSR address/
	Invalid VME CR/CSR address. More...

#define	S_dev_vxWorksIntEnFail S_dev_intEnFail
	Synonym for S_dev_intEnFail. More...

Detailed Description

API for accessing hardware devices, originally over VMEbus.

Author: Marty Kraimer and Jeff Hill

Support for allocation of common device resources

Definition in file devLib.h.

Macro Definition Documentation

#define devCreateAlignmentMask ( CTYPE ) (sizeof(CTYPE)>sizeof(double)?sizeof(double)-1:sizeof(CTYPE)-1)

Create an alignment mask for CTYPE.

Definition at line 43 of file devLib.h.

#define devCreateMask ( NBITS ) ((1<<(NBITS))-1)

Create a bit mask for a given number of bits.

Definition at line 28 of file devLib.h.

#define devDigToNml	(	DIGITAL,
		NBITS
	)	(((double)(DIGITAL))/devCreateMask(NBITS))

Normalize a raw integer value and convert it to type double.

Definition at line 30 of file devLib.h.

#define devNmlToDig	(	NORMAL,
		NBITS
	)	(((long)(NORMAL)) * devCreateMask(NBITS))

Convert a normalized value to a raw integer.

Definition at line 33 of file devLib.h.

#define devPtrAlignTest ( PTR ) (!(devCreateAlignmentMask(*PTR)&(long)(PTR)))

Check Pointer alignment, returns true if the pointer PTR is suitably aligned for its data type.

Definition at line 49 of file devLib.h.

#define S_dev_addressNotFound (M_devLib| 17) /*Specified device address unregistered*/

Specified device address unregistered.

Definition at line 90 of file devLib.h.

#define S_dev_addressOverlap (M_devLib| 9) /*Specified device address overlaps another device*/

Specified device address overlaps another device.

Definition at line 74 of file devLib.h.

#define S_dev_addrMapFail (M_devLib| 11) /*Unable to map address*/

Unable to map address.

Definition at line 78 of file devLib.h.

#define S_dev_badA16 (M_devLib| 5) /*Invalid VME A16 address*/

Invalid VME A16 address.

Definition at line 66 of file devLib.h.

#define S_dev_badA24 (M_devLib| 6) /*Invalid VME A24 address*/

Invalid VME A24 address.

Definition at line 68 of file devLib.h.

#define S_dev_badA32 (M_devLib| 7) /*Invalid VME A32 address*/

Invalid VME A32 address.

Definition at line 70 of file devLib.h.

#define S_dev_badArgument (M_devLib| 33) /*Bad function argument*/

Bad function argument.

Definition at line 122 of file devLib.h.

#define S_dev_badCRCSR (M_devLib| 35) /*Invalid VME CR/CSR address*/

Invalid VME CR/CSR address.

Definition at line 126 of file devLib.h.

#define S_dev_badFunction (M_devLib| 31) /*Bad function pointer*/

Bad function pointer.

Definition at line 118 of file devLib.h.

#define S_dev_badInit (M_devLib| 27) /*Device failed during initialization*/

Device failed during initialization.

Definition at line 110 of file devLib.h.

#define S_dev_badISA (M_devLib| 34) /*Invalid ISA address*/

Invalid ISA address.

Definition at line 124 of file devLib.h.

#define S_dev_badRequest (M_devLib| 22) /*Device does not support requested operation*/

Device does not support requested operation.

Definition at line 100 of file devLib.h.

#define S_dev_badSelfTest (M_devLib| 26) /*Device self test failed*/

Device self test failed.

Definition at line 108 of file devLib.h.

#define S_dev_badSignalCount (M_devLib| 21) /*Signal count to large*/

Signal count to large.

Definition at line 98 of file devLib.h.

#define S_dev_badSignalNumber (M_devLib| 20) /*Signal number (offset) to large*/

Signal number (offset) to large.

Definition at line 96 of file devLib.h.

#define S_dev_badVector (M_devLib| 32) /*Bad interrupt vector*/

Bad interrupt vector.

Definition at line 120 of file devLib.h.

#define S_dev_deviceDoesNotFit (M_devLib| 29) /*Unable to locate address space for device*/

Unable to locate address space for device.

Definition at line 114 of file devLib.h.

#define S_dev_deviceTMO (M_devLib| 30) /*Device timed out*/

Device timed out.

Definition at line 116 of file devLib.h.

#define S_dev_hdwLimit (M_devLib| 28) /*Input exceeds Hardware Limit*/

Input exceeds Hardware Limit.

Definition at line 112 of file devLib.h.

#define S_dev_highValue (M_devLib| 23) /*Parameter too high*/

Parameter too high.

Definition at line 102 of file devLib.h.

#define S_dev_identifyOverlap (M_devLib| 10) /*This device already owns the address range*/

This device already owns the address range.

Definition at line 76 of file devLib.h.

#define S_dev_intDisconnect (M_devLib| 12) /*Interrupt at vector disconnected from an EPICS device*/

Interrupt at vector disconnected from an EPICS device.

Definition at line 80 of file devLib.h.

#define S_dev_intDissFail (M_devLib| 15) /*Unable to disable interrupt level*/

Unable to disable interrupt level.

Definition at line 86 of file devLib.h.

#define S_dev_intEnFail (M_devLib| 14) /*Unable to enable interrupt level*/

Unable to enable interrupt level.

Definition at line 84 of file devLib.h.

#define S_dev_internal (M_devLib| 13) /*Internal failure*/

Internal failure.

Definition at line 82 of file devLib.h.

#define S_dev_lowValue (M_devLib| 24) /*Parameter too low*/

Parameter too low.

Definition at line 104 of file devLib.h.

#define S_dev_multDevice (M_devLib| 25) /*Specified address is ambiguous (more than one device responds)*/

Specified address is ambiguous (more than one device responds)

Definition at line 106 of file devLib.h.

#define S_dev_noDevice (M_devLib| 18) /*No device at specified address*/

No device at specified address.

Definition at line 92 of file devLib.h.

#define S_dev_noMemory (M_devLib| 16) /*Memory allocation failed*/

Memory allocation failed.

Definition at line 88 of file devLib.h.

#define S_dev_success 0

Definition at line 56 of file devLib.h.

#define S_dev_uknAddrType (M_devLib| 8) /*Unrecognized address space type*/

Unrecognized address space type.

Definition at line 72 of file devLib.h.

#define S_dev_uknIntType (M_devLib| 3) /*Unrecognized interrupt type*/

Unrecognized interrupt type.

Definition at line 62 of file devLib.h.

#define S_dev_vecInstlFail (M_devLib| 2) /*Interrupt vector install failed*/

Interrupt vector install failed.

Definition at line 60 of file devLib.h.

#define S_dev_vectorInUse (M_devLib| 1) /*Interrupt vector in use*/

Interrupt vector in use.

Definition at line 58 of file devLib.h.

#define S_dev_vectorNotInUse (M_devLib| 4) /*Interrupt vector not in use by caller*/

Interrupt vector not in use by caller.

Definition at line 64 of file devLib.h.

#define S_dev_vxWorksIntEnFail S_dev_intEnFail

Synonym for S_dev_intEnFail.

Definition at line 128 of file devLib.h.

#define S_dev_wrongDevice (M_devLib| 19) /*Wrong device type found at specified address*/

Wrong device type found at specified address.

Definition at line 94 of file devLib.h.
