epics::pvDatabase::PVRecordField Class Reference

Interface for a field of a record. More...

#include "pvDatabase.h"

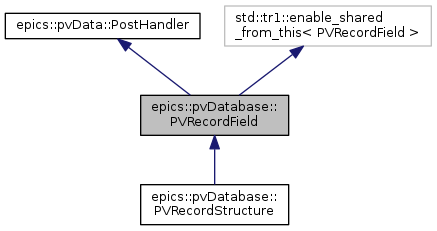

Inheritance diagram for epics::pvDatabase::PVRecordField:

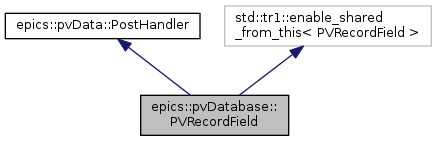

Collaboration diagram for epics::pvDatabase::PVRecordField:

Public Member Functions
	POINTER_DEFINITIONS (PVRecordField)
	PVRecordField (epics::pvData::PVFieldPtr const &pvField, PVRecordStructurePtr const &parent, PVRecordPtr const &pvRecord)
	Constructor. More...
virtual	~PVRecordField ()
	Destructor. More...
PVRecordStructurePtr	getParent ()
	Get the parent. More...
epics::pvData::PVFieldPtr	getPVField ()
	Get the PVField. More...
std::string	getFullFieldName ()
	Get the full name of the field, i.e. field,field,.. More...
std::string	getFullName ()
	Get the recordName plus the full name of the field, i.e. recordName.field,field,.. More...
PVRecordPtr	getPVRecord ()
	Return the PVRecord to which this field belongs. More...
virtual void	postPut ()
	This is called by the code that implements the data interface. It is called whenever the put method is called. More...
Public Member Functions inherited from epics::pvData::PostHandler
	POINTER_DEFINITIONS (PostHandler)
virtual	~PostHandler ()

Protected Member Functions
virtual void	init ()
virtual void	postParent (PVRecordFieldPtr const &subField)
virtual void	postSubField ()

Friends
class	PVRecordStructure
class	PVRecord

Detailed Description

Interface for a field of a record.

One exists for each field of the top level PVStructure.

Author

mrk

Definition at line 286 of file pvDatabase.h.

Constructor & Destructor Documentation

epics::pvDatabase::PVRecordField::PVRecordField	(	epics::pvData::PVFieldPtr const &	pvField,
		PVRecordStructurePtr const &	parent,
		PVRecordPtr const &	pvRecord
	)

Constructor.

Parameters

pvField	The field from the top level structure.
parent	The parent.
pvRecord	The PVRecord.

Definition at line 323 of file pvRecord.cpp.

:  pvField(pvField),
   isStructure(pvField->getField()->getType()==structure ? true : false),
   parent(parent),
   pvRecord(pvRecord)
{
}

virtual epics::pvDatabase::PVRecordField::~PVRecordField ( )

inlinevirtual

Destructor.

Definition at line 306 of file pvDatabase.h.

{}

Member Function Documentation

string epics::pvDatabase::PVRecordField::getFullFieldName

(

)

Get the full name of the field, i.e. field,field,..

Returns

The full name.

Definition at line 362 of file pvRecord.cpp.

{return fullFieldName; }

string epics::pvDatabase::PVRecordField::getFullName

(

)

Get the recordName plus the full name of the field, i.e. recordName.field,field,..

Returns

The name.

Definition at line 364 of file pvRecord.cpp.

{return fullName; }

PVRecordStructurePtr epics::pvDatabase::PVRecordField::getParent

(

)

Get the parent.

Returns

The parent.

Definition at line 355 of file pvRecord.cpp.

{
    return parent.lock();
}

PVFieldPtr epics::pvDatabase::PVRecordField::getPVField

(

)

Get the PVField.

Returns

The shared pointer.

Definition at line 360 of file pvRecord.cpp.

{return pvField.lock();}

PVRecordPtr epics::pvDatabase::PVRecordField::getPVRecord

(

)

Return the PVRecord to which this field belongs.

Returns

The shared pointer,

Definition at line 366 of file pvRecord.cpp.

{return pvRecord.lock();}

void epics::pvDatabase::PVRecordField::init ( )

protectedvirtual

Reimplemented in epics::pvDatabase::PVRecordStructure.

Definition at line 334 of file pvRecord.cpp.

{
    fullFieldName = pvField.lock()->getFieldName();
    PVRecordStructurePtr pvParent(parent.lock());
    while(pvParent) {
        string parentName = pvParent->getPVField()->getFieldName();
        if(parentName.size()>0) {
            fullFieldName = pvParent->getPVField()->getFieldName()
                + '.' + fullFieldName;
        }
        pvParent = pvParent->getParent();
    }
    PVRecordPtr pvRecord(this->pvRecord.lock());
    if(fullFieldName.size()>0) {
        fullName = pvRecord->getRecordName() + '.' + fullFieldName;
    } else {
        fullName = pvRecord->getRecordName();
    }
    pvField.lock()->setPostHandler(shared_from_this());
}

epics::pvDatabase::PVRecordField::POINTER_DEFINITIONS

(

PVRecordField

)

void epics::pvDatabase::PVRecordField::postParent ( PVRecordFieldPtr const &  subField )

protectedvirtual

Definition at line 404 of file pvRecord.cpp.

{
    PVRecordStructurePtr pvrs = static_pointer_cast<PVRecordStructure>(shared_from_this());
    std::list<PVListenerWPtr>::iterator iter;
    for(iter = pvListenerList.begin(); iter != pvListenerList.end(); ++iter)
    {
        PVListenerPtr listener = iter->lock();
        if(!listener.get()) continue;
        listener->dataPut(pvrs,subField);
    }
    PVRecordStructurePtr parent(this->parent.lock());
    if(parent) parent->postParent(subField);
}

void epics::pvDatabase::PVRecordField::postPut ( )

virtual

This is called by the code that implements the data interface. It is called whenever the put method is called.

Implements epics::pvData::PostHandler.

Definition at line 395 of file pvRecord.cpp.

{
    PVRecordStructurePtr parent(this->parent.lock());;
    if(parent) {
        parent->postParent(shared_from_this());
    }
    postSubField();
}

void epics::pvDatabase::PVRecordField::postSubField ( )

protectedvirtual

Definition at line 418 of file pvRecord.cpp.

{
    callListener();
    if(isStructure) {
        PVRecordStructurePtr pvrs =
            static_pointer_cast<PVRecordStructure>(shared_from_this());
        PVRecordFieldPtrArrayPtr pvRecordFields = pvrs->getPVRecordFields();
        PVRecordFieldPtrArray::iterator iter;
        for(iter = pvRecordFields->begin() ; iter !=pvRecordFields->end(); iter++) {
             (*iter)->postSubField();
        }
    }
}

Friends And Related Function Documentation

friend class PVRecord

friend

Definition at line 356 of file pvDatabase.h.

friend class PVRecordStructure

friend

Definition at line 355 of file pvDatabase.h.

---

The documentation for this class was generated from the following files:

• modules/pvDatabase/src/pv/pvDatabase.h
• modules/pvDatabase/src/database/pvRecord.cpp
