epics::pvaClient::RPCRequesterImpl Class Reference

Inheritance diagram for epics::pvaClient::RPCRequesterImpl:

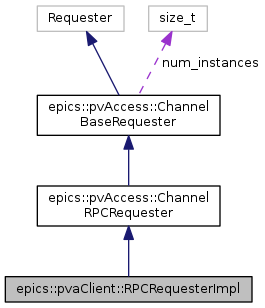

Collaboration diagram for epics::pvaClient::RPCRequesterImpl:

Public Member Functions
	RPCRequesterImpl (PvaClientRPCPtr const &pvaClientRPC, PvaClientPtr const &pvaClient)
virtual	~RPCRequesterImpl ()
virtual std::string	getRequesterName ()
virtual void	message (std::string const &message, epics::pvData::MessageType messageType)
virtual void	channelRPCConnect (const epics::pvData::Status &status, ChannelRPC::shared_pointer const &channelRPC)
virtual void	requestDone (const Status &status, ChannelRPC::shared_pointer const &channelRPC, PVStructure::shared_pointer const &pvResponse)
Public Member Functions inherited from epics::pvAccess::ChannelRPCRequester
	POINTER_DEFINITIONS (ChannelRPCRequester)
virtual	~ChannelRPCRequester ()
virtual void	requestDone (const epics::pvData::Status &status, ChannelRPC::shared_pointer const &operation, epics::pvData::PVStructure::shared_pointer const &pvResponse)=0
Public Member Functions inherited from epics::pvAccess::ChannelBaseRequester
	POINTER_DEFINITIONS (ChannelBaseRequester)
	ChannelBaseRequester ()
virtual	~ChannelBaseRequester ()
virtual void	channelDisconnect (bool destroy)

Additional Inherited Members
Public Types inherited from epics::pvAccess::ChannelRPCRequester
typedef ChannelRPC	operation_type
Static Public Attributes inherited from epics::pvAccess::ChannelBaseRequester
static size_t	num_instances

Detailed Description

Definition at line 27 of file pvaClientRPC.cpp.

Constructor & Destructor Documentation

epics::pvaClient::RPCRequesterImpl::RPCRequesterImpl ( PvaClientRPCPtr const &  pvaClientRPC, PvaClientPtr const &  pvaClient  )

inline

Definition at line 32 of file pvaClientRPC.cpp.

    : pvaClientRPC(pvaClientRPC),
      pvaClient(pvaClient)
    {}

virtual epics::pvaClient::RPCRequesterImpl::~RPCRequesterImpl ( )

inlinevirtual

Definition at line 38 of file pvaClientRPC.cpp.

                                {
        if(PvaClient::getDebug()) std::cout << "~RPCRequesterImpl" << std::endl;
    }

Member Function Documentation

virtual void epics::pvaClient::RPCRequesterImpl::channelRPCConnect ( const epics::pvData::Status &  status, ChannelRPC::shared_pointer const &  operation  )

inlinevirtual

RPC creation request satisfied.

Must check status.isOk().

On Success, a non-NULL 'operation' is provided. This is the same pointer which was, or will be, returned from Channel::createChannelRPC().

It is allowed to call ChannelRPC::request() from within this method.

Implements epics::pvAccess::ChannelRPCRequester.

Definition at line 54 of file pvaClientRPC.cpp.

    {
        PvaClientRPCPtr clientRPC(pvaClientRPC.lock());
        if(!clientRPC) return;
        clientRPC->rpcConnect(status,channelRPC);
    }

virtual std::string epics::pvaClient::RPCRequesterImpl::getRequesterName ( )

inlinevirtual

Definition at line 42 of file pvaClientRPC.cpp.

                                         {
        PvaClientRPCPtr clientRPC(pvaClientRPC.lock());
        if(!clientRPC) return string("pvaClientRPC is null");
        return clientRPC->getRequesterName();
    }

virtual void epics::pvaClient::RPCRequesterImpl::message ( std::string const &  message, epics::pvData::MessageType  messageType  )

inlinevirtual

Definition at line 48 of file pvaClientRPC.cpp.

                                                                                        {
        PvaClientRPCPtr clientRPC(pvaClientRPC.lock());
        if(!clientRPC) return;
        clientRPC->message(message,messageType);
    }

virtual void epics::pvaClient::RPCRequesterImpl::requestDone ( const Status &  status, ChannelRPC::shared_pointer const &  channelRPC, PVStructure::shared_pointer const &  pvResponse  )

inlinevirtual

Definition at line 63 of file pvaClientRPC.cpp.

    {
        PvaClientRPCPtr clientRPC(pvaClientRPC.lock());
        if(!clientRPC) return;
        clientRPC->requestDone(status,channelRPC,pvResponse);
    }

---

The documentation for this class was generated from the following file:

• modules/pvaClient/src/pvaClientRPC.cpp
