epics::pvAccess::ServerGetFieldHandlerTransportSender Class Reference

#include "responseHandlers.h"

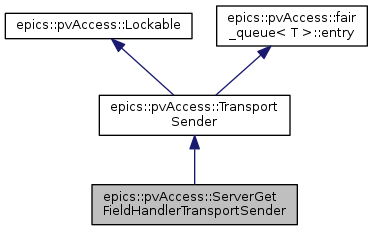

Inheritance diagram for epics::pvAccess::ServerGetFieldHandlerTransportSender:

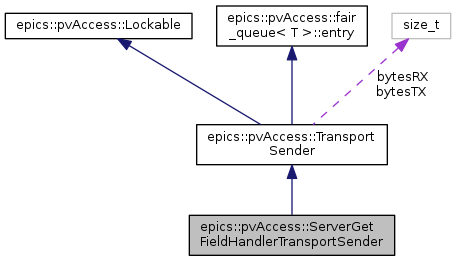

Collaboration diagram for epics::pvAccess::ServerGetFieldHandlerTransportSender:

Public Member Functions
	ServerGetFieldHandlerTransportSender (const pvAccessID ioid, const epics::pvData::Status &status, Transport::shared_pointer const &)
virtual	~ServerGetFieldHandlerTransportSender ()
virtual void	send (epics::pvData::ByteBuffer *buffer, TransportSendControl *control) OVERRIDE FINAL
Public Member Functions inherited from epics::pvAccess::TransportSender
	POINTER_DEFINITIONS (TransportSender)
	TransportSender ()
virtual	~TransportSender ()
Public Member Functions inherited from epics::pvAccess::Lockable
	POINTER_DEFINITIONS (Lockable)
virtual	~Lockable ()
virtual void	lock ()
virtual void	unlock ()
Public Member Functions inherited from epics::pvAccess::fair_queue< T >::entry
	entry ()
	~entry ()

Additional Inherited Members
Public Attributes inherited from epics::pvAccess::TransportSender
size_t	bytesTX
size_t	bytesRX

Detailed Description

Definition at line 720 of file responseHandlers.h.

Constructor & Destructor Documentation

epics::pvAccess::ServerGetFieldHandlerTransportSender::ServerGetFieldHandlerTransportSender ( const pvAccessID  ioid, const epics::pvData::Status &  status, Transport::shared_pointer const &    )

inline

Definition at line 723 of file responseHandlers.h.

                                                                                                                                  :
        _ioid(ioid), _status(status) {

    }

virtual epics::pvAccess::ServerGetFieldHandlerTransportSender::~ServerGetFieldHandlerTransportSender ( )

inlinevirtual

Definition at line 727 of file responseHandlers.h.

{}

Member Function Documentation

virtual void epics::pvAccess::ServerGetFieldHandlerTransportSender::send ( epics::pvData::ByteBuffer *  buffer, TransportSendControl *  control  )

inlinevirtual

Called by transport. By this call transport gives callee ownership over the buffer. Calls on TransportSendControl instance must be made from calling thread. Moreover, ownership is valid only for the time of call of this method. NOTE: these limitations allow efficient implementation.

Implements epics::pvAccess::TransportSender.

Definition at line 729 of file responseHandlers.h.

                                                                                                   {
        control->startMessage((epics::pvData::int8)CMD_GET_FIELD, sizeof(epics::pvData::int32)/sizeof(epics::pvData::int8));
        buffer->putInt(_ioid);
        _status.serialize(buffer, control);
    }

---

The documentation for this class was generated from the following file:

• modules/pvAccess/src/server/pv/responseHandlers.h
